Thickness range mild steel: 2.5mm to 12mm
Width of material: 600mm to 2000mm
Coil Weight: 25 tons
Coil OD: 1900mm
Coil ID: 508 to 610mm"
Line Speed: 0 to 30 m/min
Piler.,
Max., Pack Weight:
Max., Pack Length: 6.5 meters
With Tamping
Runout Roller Transfer Tables
Consisting of:
3 coil storage ramp
Coil car

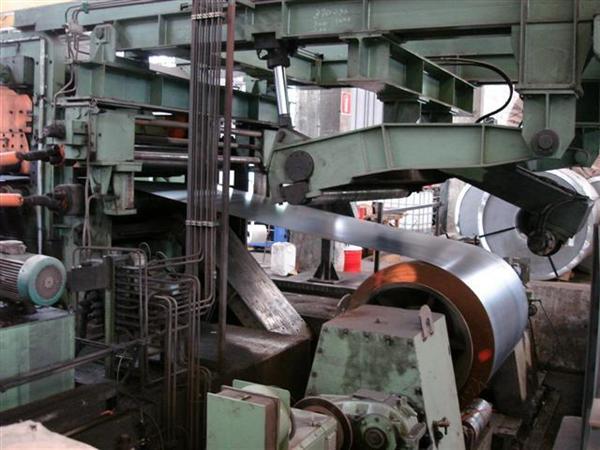

Uncoiler, Cone Type,
Disc Brakes, DC Motor Drive,
Overhead double Snubber Control Rolls,
All Hydraulic Operation
Peeler/Coil Opener
Entry pinch rolls. Universal Drive and Side Guide Rolls

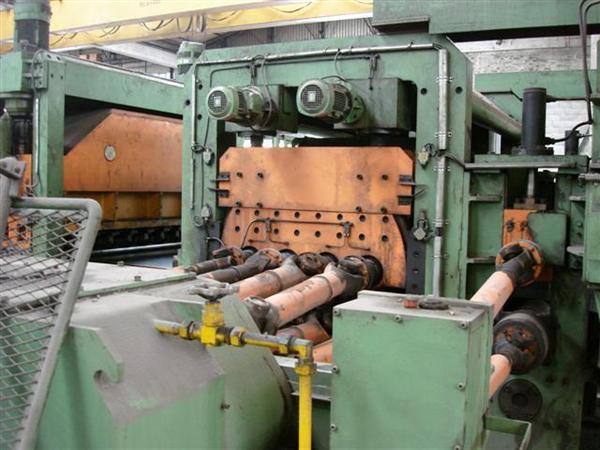

Heavy Gauge Leveller, 9 Rolls
Work Rolls, 4 over 5, 200mm Diameter x 2200mm, Universal Drive
Back up Rolls, 200mm Diameter x 650mm
Top Roll Bank Motorized Adjustment
132KW, DC Motor Drive, 400 Volt, 1550 RPM

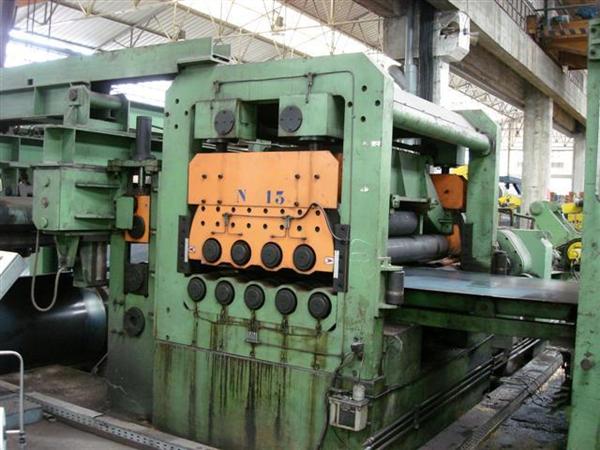

Precision Leveler, 15 Rolls
Work Rolls 7 over 8, 75mm Diameter x 2200mm
9 Flights of Roller Back ups
Top Roll Bank Motorized Adjustment
132 KW, DC Motor Drive, 400 Volt, 1550 RPM

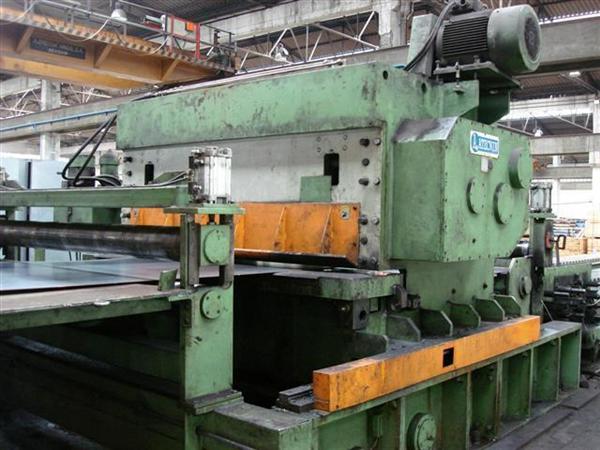

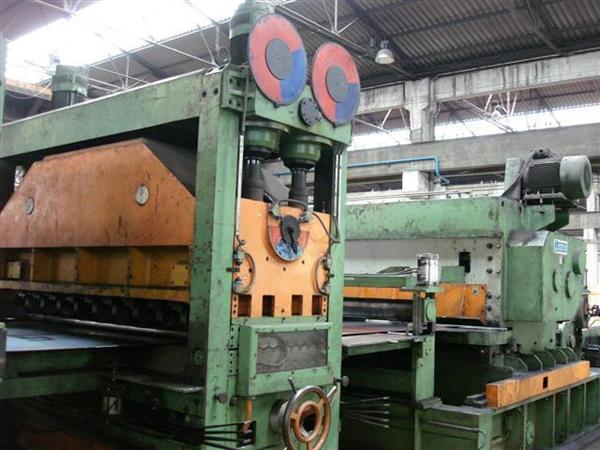

Shear, Flying Shear, 2000mm x 12mm
Model GUN 2012/90G-VOL+RAC+MINS
82KW,Drive Motor
Machine weight 25 tons

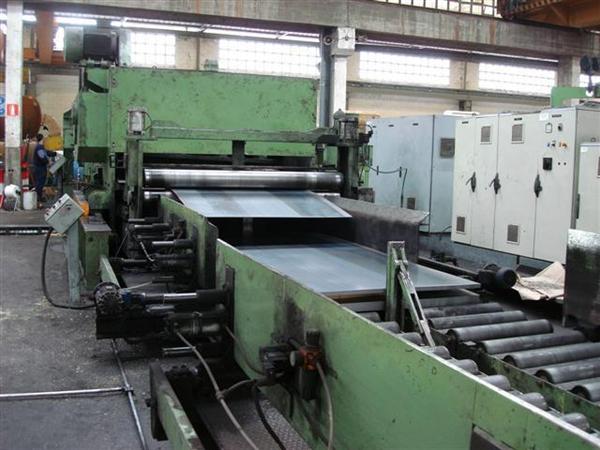

Exit inspection belt conveyor
Exit Pinch Rolls
Piler, (2) 3 Meter Section, with Tamping
8 Meter transfer table
(3)x 6 meter sections, powered exit conveyor

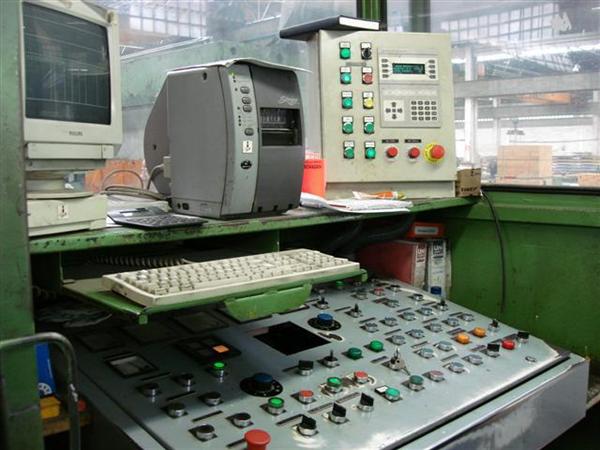

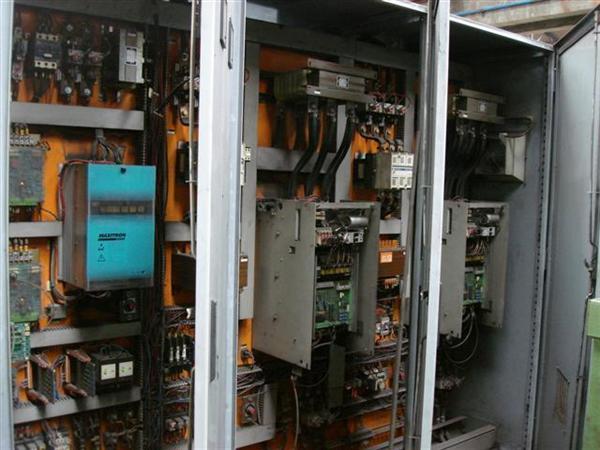

Electronics,E.A.A.Iberica, Telemecanique, PLC Control, Mitsubishi
