SPECIFICATIONS:
INCOMING COIL I.D.: 16" / 20"
INCOMING COIL O.D.: 16"
MAX. OUT-GOING COIL O.D.: 41.5"
MAXIMUM GAUGE: .120"
MINIMUM GAUGE: .003"
MAXIMUM WIDTH: 14.250"
MINIMUM WIDTH: 5"
MAXIMUM PIW: 420
MAXIMUM SPEED: 300 FPM, HI TENSION
500 FPM, LO TENSION
MINIMUM SPEED: JOB SPEED
ALLOY TYPES: ALL CU ALLOYS
ELECTRICS:
MILL MOTOR: 125 HP, 850/1800 RPM
WINDER MOTOR: 60 HP, 400/1600 RPM
MILL SPEED: 250/500 FPM
MAX. SPEED @FULL TORQUE OF MILL MOTOR: 250 FPM
MAX. SPEED @REDUCED TORQUE OF MILL MOTOR: 500 FPM
MAX. WINDING TENSION (TO 500 FPM): 3960#
MAX. WINDING TENSION (TO 330 FPM): 6000#
MIN. WINDING TENSION: 750#
TENSION REGULATION: CURRENT CONTROL
RIGHT TO LEFT FEED

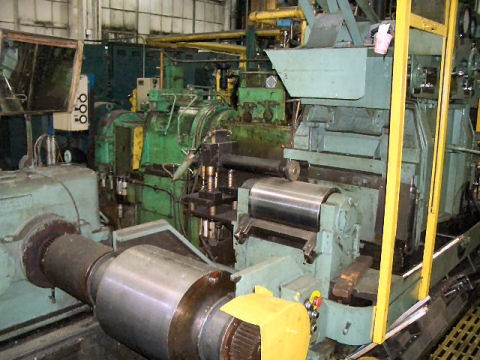

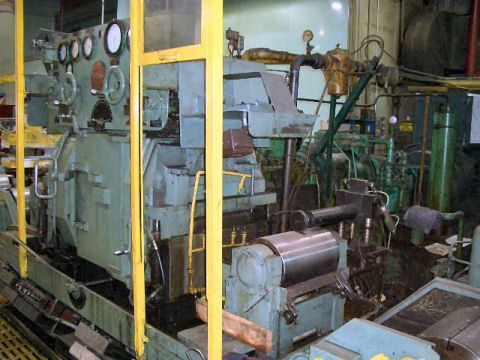

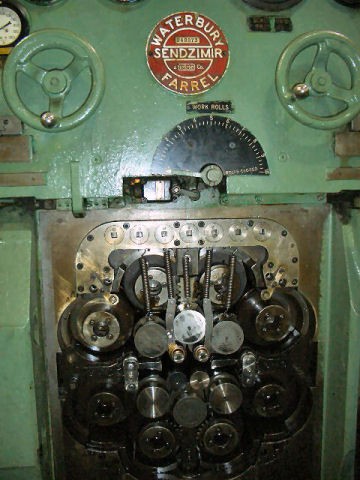

MILL:
WORK ROLL (NOM. DIA.): 1.125"
1ST INTER. ROLL (NOM. DIA.): 2.062"
2ND INTER. ROLL (NOM. DIA.) DRIVE: 3.600"
IDLER: 3.600"
BACKING BEARING DIA.: 6.299"
BACKING BEARING WIDTH: 3.543"
BACKING BEARING (QUAN. REG.): 24
MATERIAL ROLLED: BRASS
MAX. STARTING STRIP THICKNESS APPROX: .090"
MIN. FINISHED STRIP THICKNESS (AT FULL EIDTH): .010"
MAX. STRIP WIDTH: 13"
DEFLECTOR ROLL - STEEL ROLL - DIA.: 10"
- FACE: 16"
STRIP WIPERS: TYPE: SINGLE FRAME DOUBLE WIPER
OPERATION: HYDRAULIC

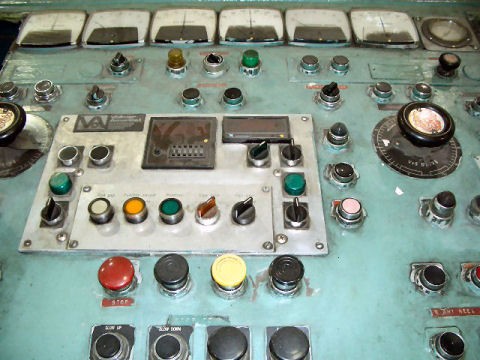

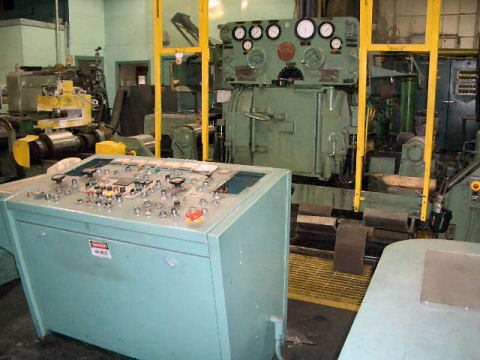

CONTROL: MANUAL VALVES ON CONTROL PANEL
SIDE GUIDES - ROLLER TYPE: MANUALLY OPERATED
PRESSURE BOARD - OPERATION: HYDRAULIC
CONTROL: MANUAL VALVE ON CONTROL PANEL

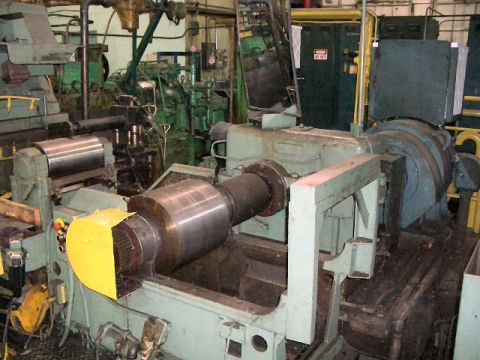

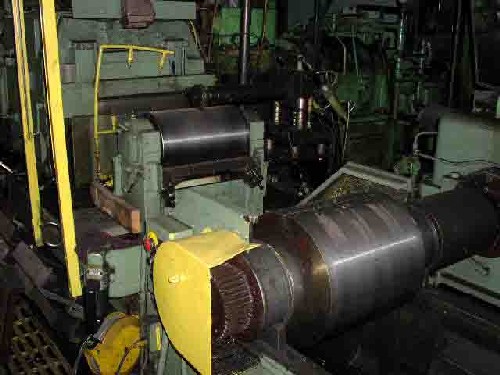

WINDERS:
SOLID BLOCKS EQUIPPED WITH MANUALLY - OPERATED GRIPPERS
BLOCK DIAMETER: 16"
MAXIMUM COIL DIAMETER: 39"
MAXIMUM COIL WEIGHT: 3900#
MILL LUBRICATION:
MILL ROLL LUBRICATING SYSTEM CAPACITY: 75 GPM
OIL TANK TOTAL CAPACITY: 1500 GAL
FILTRATION: HILCO F3-12 PAPER CATRIDGE
HILCO FB1436-4 CLAY FILTERS
OIL: MINERAL OIL
PINTON STAND LUBRICATION SYSTEM:
LUBRICATION TANK CAPACITY: 50 GAL
SYSTEM CAPACITY: 15 GPM
OIL: APPROX. 750 SSU @100 F
MILL HYDRAULIC SYSTEM (SCREWDOWN, PRESSURE BOARDS, AND WIPERS):
TANK CAPACITY: SAME TANK AS AUX. HYD.
DUAL PUMP DRIVEN BY 3 HP, 1200 RPM MOTOR
LARGE VALUME PUMP (AT 500 PSI): 3.4 GPM
SAMLL VOLUME PUMP (AT 1000 PSI): 2 GPM

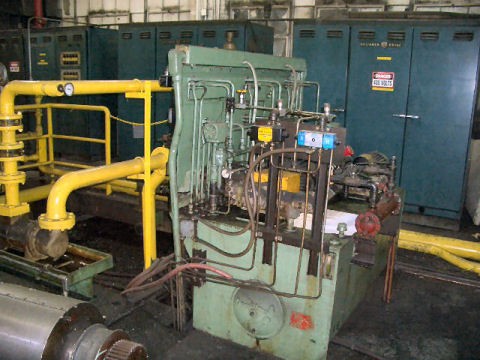

AUXILIARY HYDRAULIC SYSTEM:
TANK CAPACITY: 200 GAL
DUAL PUMP DRIVEN BY 7-1/2 HP, 1200 RPM MOTOR
LARGE VOLUME PUMP (AT 500 PSI): 12 GPM
SMALL VOLUME PUMP ( 750 PSI): 5 GPM
THICKNESS GAUGES:
PRATT & WHITNEY MODEL D-10 ELECTROLIMIT
PRATT & WHITNEY MODEL E SCREWDOWN CONTROL WITH
SELSYN OPERATED RECORDER
SCREWDOWN:
FORCE ON WORK ROLL @100 PSI OIL PRESSURE: 48,200#
