72" X .375 X 50,000# PAXSON DUAL HEAD LOOP SLITTING LINE
Our stock number:
109259
Click on picture below for larger version
MOVIE
available of this equipment.
Caution:
this may be large file.
Year 1983
Serial No. 11628
Thickness Range: .037" - .375"
Coil Capacity: 50,000#
Max Coil Width; 72" Trimmed 74" Untrimmed
Coil OD: 72"
Coil ID 20" - 24"
Line Speed: 150 FPM and 450 FPM "Bare Drum"
Line Direction: Right to Left
Slitting Capacities:
5 Cuts of .375"
12 Cuts of .250"
21 Cuts of .109"

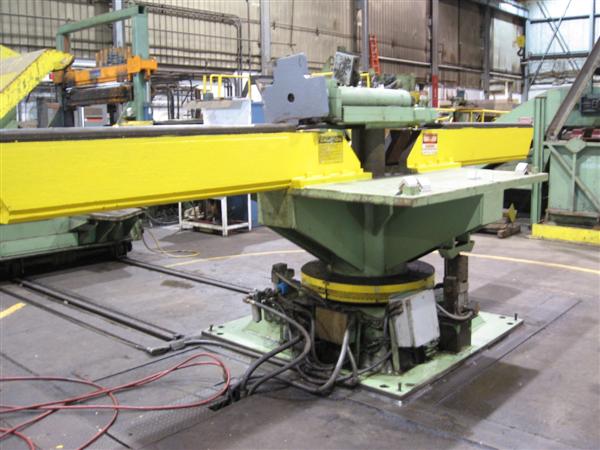

Entry 3 Arm Turnstile
74" Arm Length
Power Rotation
L-Type Coil Car
Floor Standing / Self Contained Hydraulics

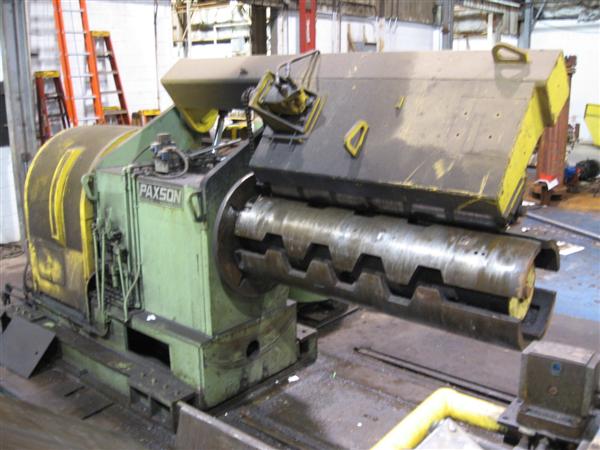

Mandrel Uncoiler
4 Leaf Hydraulic Expansion
Sliding Base
Hold Down Roll
Wichita Water Cooled Brake
Hydraulic Feed-Up Drive
Peeler Table
Coil Breaker with 8" Diameter Rolls
2 Sets of Edge Guides

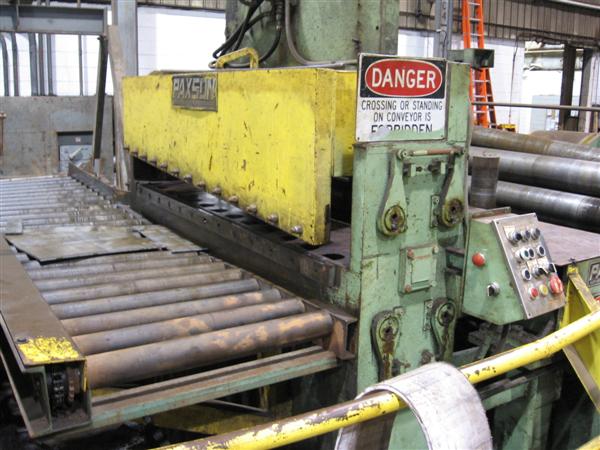

Crop Shear with Scrap Cart

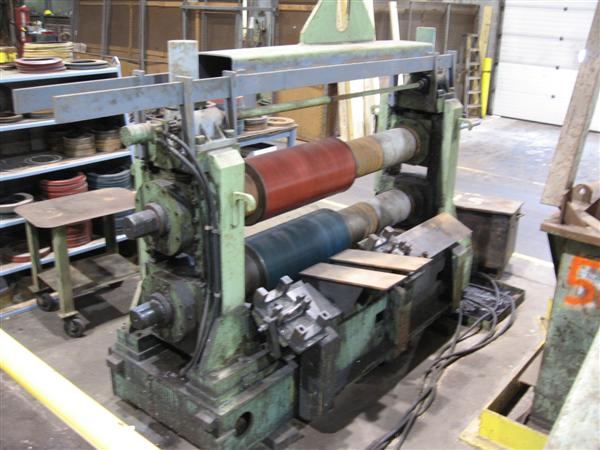

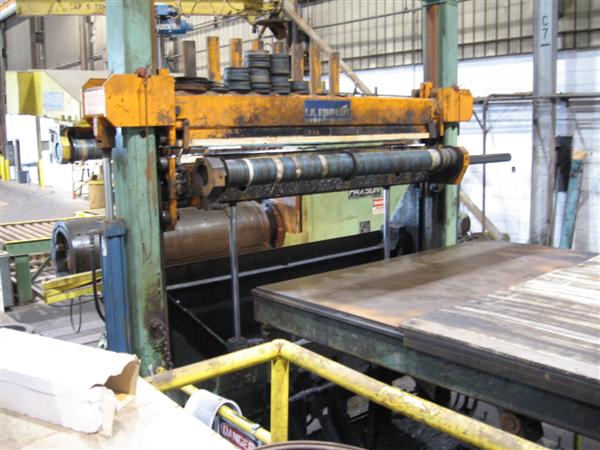

2 Slitter Heads
12" Dia Arbors and 9" Dia Arbors
Entry Pinch Rolls
Edge Guides
150 HP DC Drive, 1750 - 2000 RPM
5/8" Butech Scrap Choppers (New in 1990)
125 HP DC Motor, 500 Volt, 850/2550 RPM
Looping Pit Cross Over Table
L&M Drag Board Tension Stand
Feed-Up Table

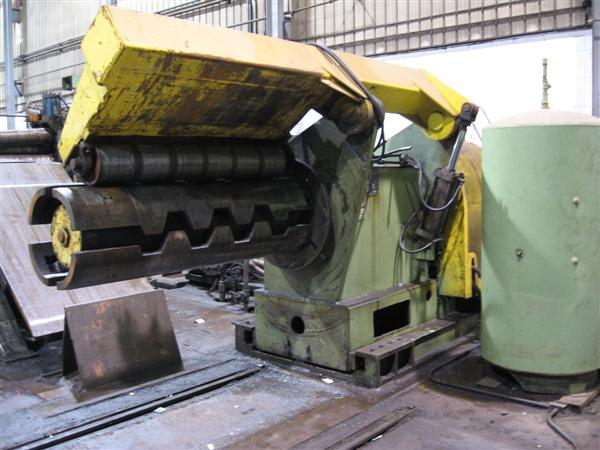

Recoiler
20" Dia Hydraulic Drum (Pads for 24")
78" Drum Face
125 HP DC Drive
Overarm Seperator
Hydraulic Push-Off
2 Speed Gear Box 3:1 and 1:1
Exit L-Type Coil Car
Floor Stand / Self Contained Hydraulics
Coil Holder Roll
2 Arm Exit Turnstile
Hydraulic Push-Off
Power Roataion

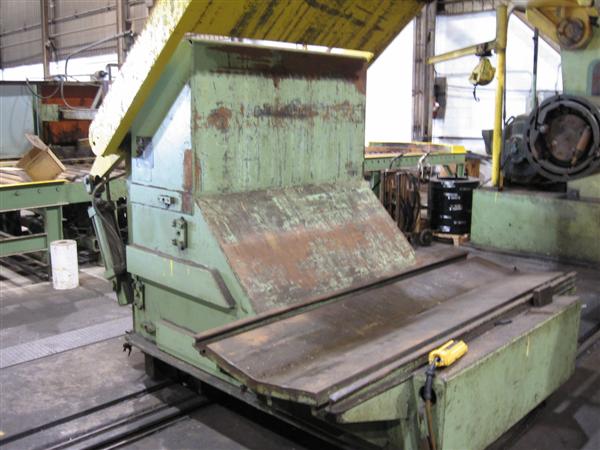

72" x 10,000 Downlayer
Right Angle Discharge
80" Roll Face
12' Powered Conveyor
Signode Banding Head Table
3 Conical Rolls
20' Exit Conveyor with Cut-Out for Coil ID Lift
5 Ton Shaw Box Jib Crane with ID Coil Grab
Complete Line with Tooling, Hydraulics, and Electrics
Reliance Solid State DC Drives
