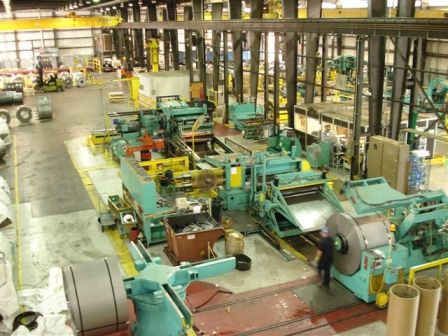

60" x .135" X 55,000# BRANER TURRET HEAD SLITTING LINE
Our stock number:
109379
Click on picture below for larger version
MOVIE
available of this equipment.
Caution:
this may be large file.
SYSTEM SPECIFICATIONS
YEAR OF MANUFACTURE.......... 1990
MATERIAL DATA
MATERIAL .................... HRP&O, CR & ELECTRO GALVANIZED MILD STEEL
MAXIMUM SHEAR STRENGTH ...... 50,000 PSI
MAXIMUM THICKNESS ........... .135" (3.43mm)
MINIMUM THICKNESS ........... .015" (.38mm)
COIL DATA
MAX ENTRY/EXIT WEIGHT .. 55,000#
MAX ENTRY/EXIT WIDTH ... 60" (1524mm)
MIN ENTRY COIL WIDTH ... 12" (304.8mm)
MAX ENTRY/EXIT COIL O.D. .... 72" DIA (1829mm)
MIN ENTRY/EXIT COIL O.D. .... 36" DIA (914.4mm)
MAX ENTRY COIL I.D. .... 24" DIA (635mm)
MIN ENTRY COIL I.D. .... 20" DIA (508mm)
EXIT COIL I.D. BASE .... 20" DIA (508mm)
EXIT COIL I.D. W/FILLERS 24" DIA (635mm)
MIN SLIT WIDTH .......0.756" (19.1mm)
WIDTH TOLERANCE ..+/- 0.005" (0.13mm)
SHEAR STRENGTH .. 50,000 PSI (.345mpa)
MODES OF OPERATION
(A) PULL THROUGH SLITTING
(B) TORQUE REGULATED PUSH/PULL SLITTING
(C) SINGLE LOOP DRIVE SLITTING
SLITTING SPEEDS
BASE SPEED @ GEAR #1 ....... 400 FPM
BASE SPEED @ GEAR #2 ....... 1200 FPM CONSTANT
CONSTANT LOOP SLIT SPEED ... 1200 FPM CONSTANT
SLITTER DATA
NUMBER OF HEADS ............ 2
NOMINAL ARBOR FACE ......... 2 @ 60" (1524mm)
NOMINAL ARBOR DIA .......... 8.5" DIA (215.9mm)
KNIFE DIA MAX .............. 14.5" DIA (368.3mm)
KNIFE DIA MIN .............. 12.5" DIA (317.5mm)
SPACE DIA .................. 10.5" DIA (266.7mm)
SLITTING CAPACITY DATA
THICKNESS GEAR#1 GEAR#2 GEAR#3
.135" 12
.120" 14
.105" 17 12
.090" 22 16
.075" 22 22 13
.060" 22 22 20
.048" 22 22 22
.036" 22 22 22
.024" 22 22 22
.018" 22 22 22
.015" 22 22 22
MOTOR DATA
ENTRY CAR .......... 10HP/AC
SLITTER DRIVE ...... 150HP/AC
RECOILER DRIVE ..... 250HP/AC
EXIT CAR ........... 10 HP/AC
COOLANT SYSTEM ..... 1.5 & 2HP/AC
LINE COMPONENTS:
4 ARM TURNSTILE - 60" X 55,000# CAPACITY
ENTRY L-SHAPED COIL CAR

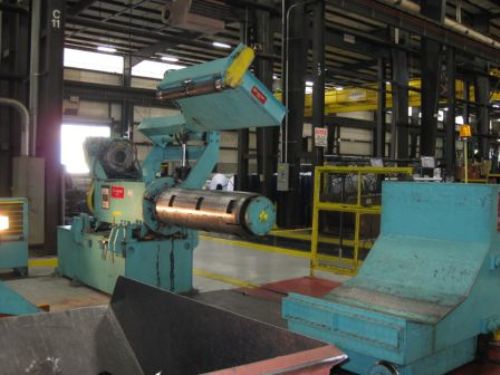

MANDREL UNCOILER - TRAVERSING, SNUBBER ROLL, WICHITA BRAKE

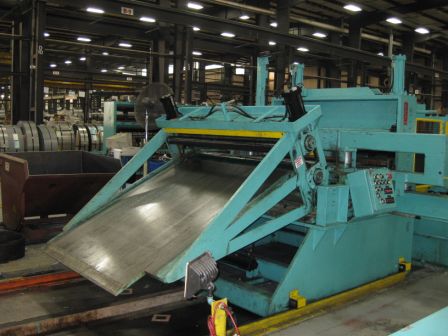

PEELER TABLE - UPACTING W/ PINCH ROLLS, EDGE GUIDES
CROP SHEAR

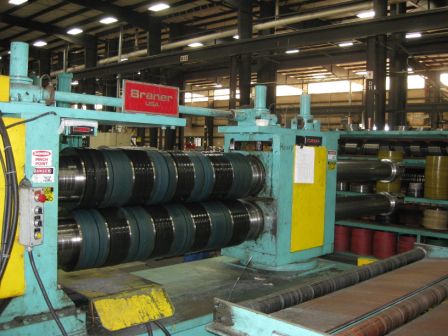

DOUBLE TORSET HEAD SLITTER - SHIMLESS TOOLING
2 SCRAP WINDERS
CROSSOVER TABLE

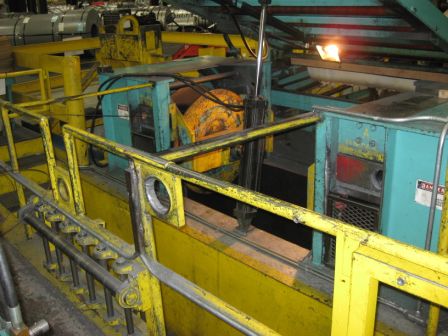

25' LOOPING PIT
MOTORIZED DRAG BOARD TENSION STAND
TENSION STAND - 2 SETS OF ROLLS (SURFACE CRITICAL END - NON-SURFACE CRITICAL)
EXIT COIL CROP SHEAR
MANDREL RECOILER - 20" DIAMETER (24" CAPABLE)
EXIT L-SHAPED COILCAR
ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER
