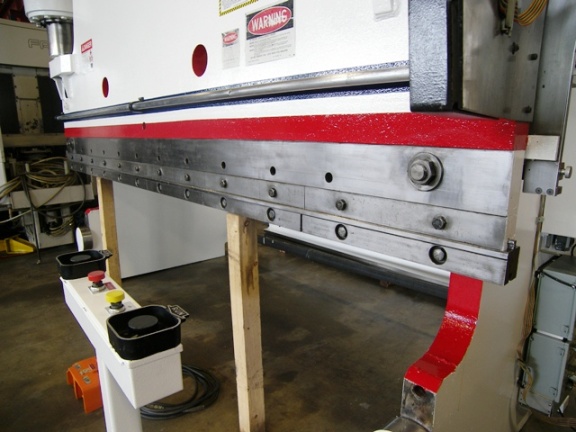

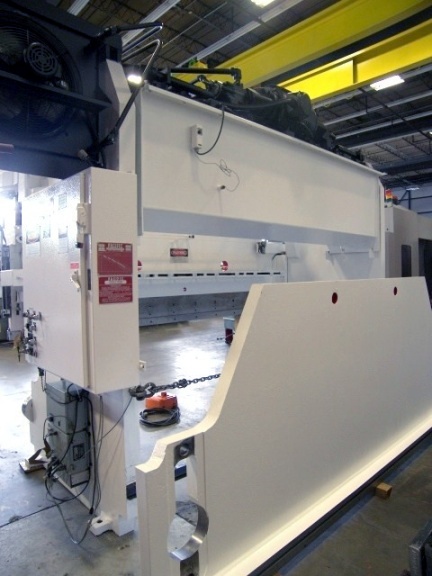

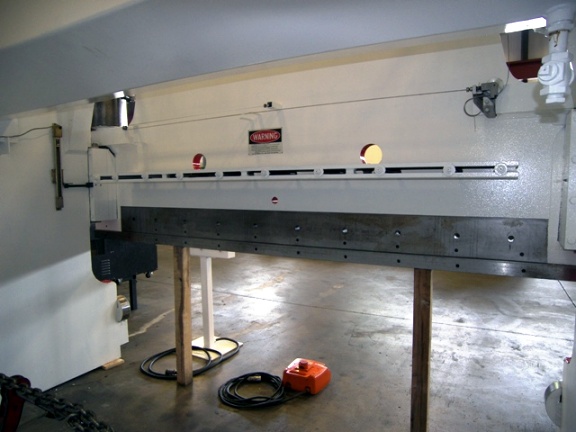

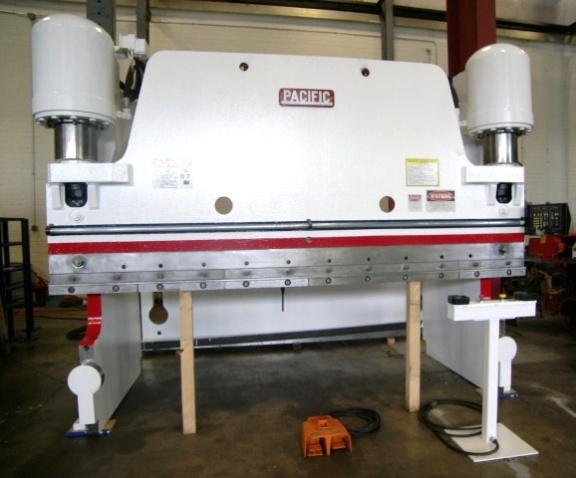

400 Ton Pacific CNC Hydraulic Press Brake
Model: K400-12/10
Age: 1991
Maximum Tonnage ...................... 400 Tons
Overall Length Of Bed And Ram ........ 12'
Distance Between Housings ............ 10'4-1/2"
Bending Capacit (6" Die Opening) ..... 5/8" x 11'
Open Height .......................... 20"
Closed Height ........................ 8"
Stroke Length ........................ 12"
Throat Depth ......................... 10"
Motor ................................ 40 H.P.
Estimated Weight ..................... 45,000 Lbs.
EQUIPPED WITH:

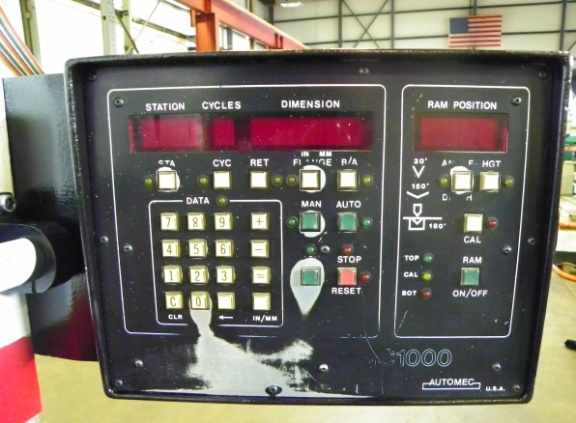

Automec Autogauge 1000 3-Axis CNC Control
Tonnage Control And Indicator
Bed Machined For Angle Brackets
3-Speed Hydraulic Power Unit
12' Lower Die Holder
Dual Electric Foot Switches

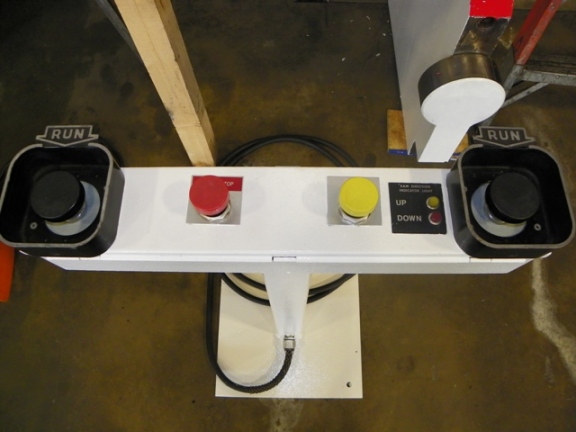

Pedestal Mounted Palm Button Control
