Line can be seen in operation and under power, excellent condition.
Max. / Min. Coil Width 85" / 24"
Max. Coil Thickness .500" @ 50k Yields Flattened Only
.375" @ 80k Yields Flattened Only
.312" @ 50k Yields Leveled Only
.250" @ 80k Yields Leveled Only
Max. HR/CR Capability .500"
Max. SS Capability .312"
Min. Coil Thickness .074"
Max. Coil Weight 50,000 Lbs.
Coil I.D. 20" to 24"
Max. Coil O.D. 84"
Line Speed Variable To 100 FPM
Max. / Min. Sheet Length 508" / 24"
Max. Stack Height 18"
Pack Weight 20,000 Lbs. Max.
Hand of Line Right Hand
Line Includes:
3 Station Coil Ramp and Coil Car Lift, 50,000# Stub Mandrel Uncoiler, Sliding
Base, Powered Brakes Holddown Roll Hydraulic Peeler Table
Entry Pinch Rolls - 2 Rolls x 16" dia.
5 Roll Flattener, 10" Dia. Work Rolls, Roll Face 90.5", Hydraulic Pinch Roll
Adj., Motorized Work Roll Adj., S/N 411 180

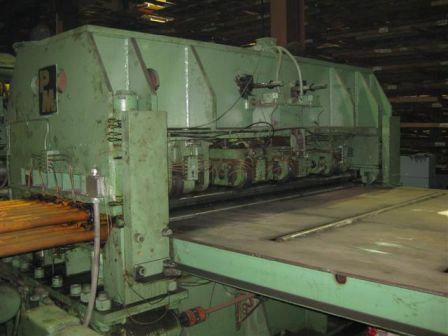

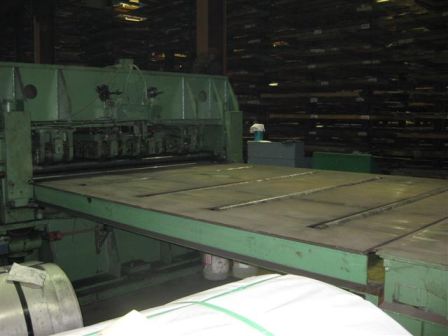

17 Roll 4 High Leveler (8 over 9), 3.5" Dia. Work Rolls, 4 Flights of Top &
Bottom Back-Ups, Individually Adjustable, 90.5" Work Roll Face; Back-Ups 7"
Dia. By 2.9375" Face; .3125" @ 50,000PSI & .250" @ 80,000PSI Thickness
Capacity, S/N 411 210
150 HP DC Flattener and Leveler Drive and Reducers; 440/480 Volt, 3 PH
Inspection Table

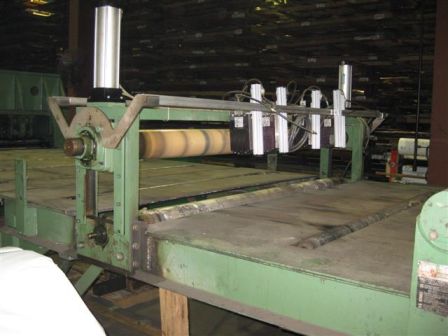

Vinyl Applicator - PVC Applicator

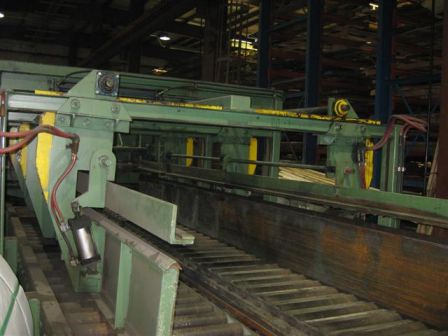

Wysong Model 950 Shear, 1978, Accuracy 1/16" +/-, S/N P69-105 Sheet Piler and

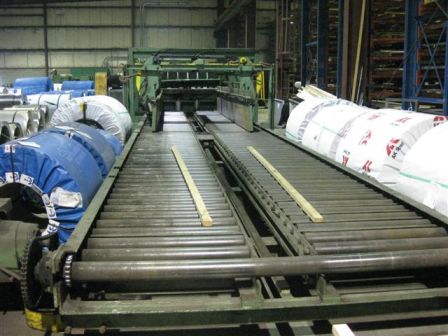

Runout Conveyor, 20,000 Lb. Sheet Stacker, 508" Max End Discharge Conveyor
Electric & Hydraulic Components

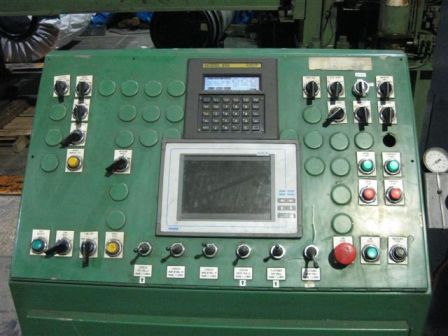

Updated Eurotherm PLC Drives & Controls, Touch Screen Eason Tech 1950, Uniop
