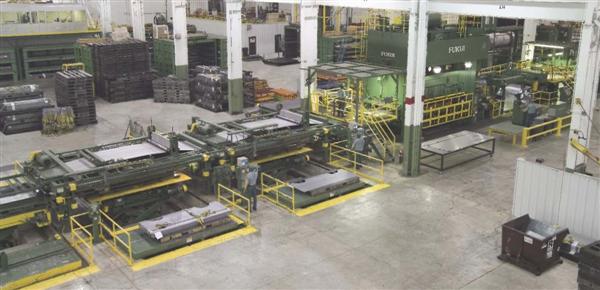

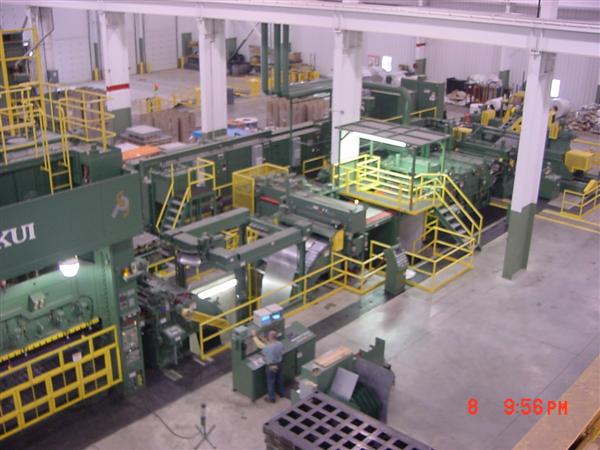

LINE SPECIFICATIONS:
Yield Strength: 35,000psi (85,000 High Strength)
Strip Thickness: 0.02." to .126" (0.6mm - 3.2mm)
(0.091" (2.3mm) @ 85,000psi)
Strip Width: 11.81" to 72.05" (300mm - 1830mm)
Coil Weight: 70500 lbs. (32000kgs.)
Coil OD: 31.5" to 86" (800mm - 2185mm)
Coil ID: 20" & 24" (508mm & 610mm)
Feed Length: 1.97" to 157.5" (50mm - 4000mm)
Feed Accuracy: +/- 0.020" (51mm)
Line Speed: 262fpm max.
Feed Strokes: 15spm to 60spm
PRESS SPECIFICATIONS:
Straight Side, 4 Point Eccentric Design, with 2 Rolling Bolsters
Stroke: 11.81" (300mm)
Die Height from Bolster Top Face to Slide: 53.15" (1350mm)
Slide Adjustment: 13.78" (350mm)
Strokes per Minute: 15 ~ 60
Dim. of Slide Left to Right: 200.79" (5100mm)
Dim. of Slide Front to Rear: 104.33" (2650mm)
Area of Bolster Left to Right: 200.79" (5100mm)
Area of Bolster Front to Rear: 104.33" (2650mm)
Bolster Thickness: 8.66 (220mm)
Bolster Height Above Floor: 24.41 (620mm)
Height Above Floor: Approx. 293.31" (7450mm)
LINE COMPONENTS:
-Coil Car
-Uncoiler
-Hold-down Roll
-Peeler
-Entry Pinch Roll
-Entry Shear
-Automatic Feed Hot Water Washer
-19 Roll Leveler
-United Air Specialist Totalstat Electrostatic Oiler
-Looping Table
-Roll Feed
-Hydraulic Power Unit
-Inspection Conveyor
-Piling Unit Consisting of:
2 - Magnetic Stacker
2 - Scissors Lift
4 - Piler Cars
-Reject Piling Unit Consisting of:
1-Reject Piler
1-Scissors Lift
2-Piler Cars
