General Specifications:
Material Thickness Range - .024" - .135"
Max Shear Strength - 50,000 PSI
Max Yield Strength - 40,000 PSI
Min Yield Strength - 25,000 PSI
Max Coil Weight - 40,000 lbs
Coil Width Range - 12" - 60"
Max Coil OD - 72"
Coil ID Range - 16" - 24"
Length of Cut Range - 6" - 192"
Material - HR, CR, Pickled & Oiled
Line Direction - Left to Right
Line Components:
Rotek 3-Arm Power Turnstile
S/N X-62941-1
Arm Length - 42"
Coil weight - 40,000 lbs
Cincinnati L-Shaped Coil Car
Model - CLC40K
S/N 91995
Coil Capacity 40,000 lbs
Car width - 52"
Traversing
Hydraulic Lift

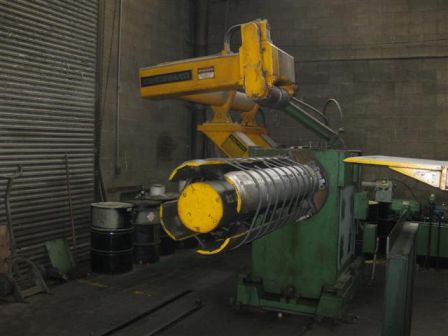

Cincinnati Mandrel Uncoiler
Model - CPRB72-40K
S/N 91996
Coil Capacity - 40,000 lbs
Mandrel width - 72"
Over-arm hold down roll
Self contained hydraulic pump
Cincinnati Scissor Lift Infeed Table
Model - CPT60-.250
S/N 91997
Coil Width - 60"
Table Length - 110"
Guide Roll
Hydraulic Lift
Cincinnati Lateral Edge Guides
Model - LEG&EC60-.187
S/N 91998
Pinch Roll Diameter - 6"

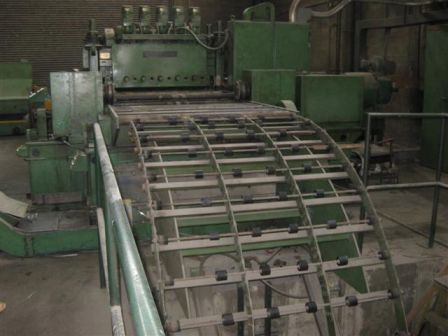

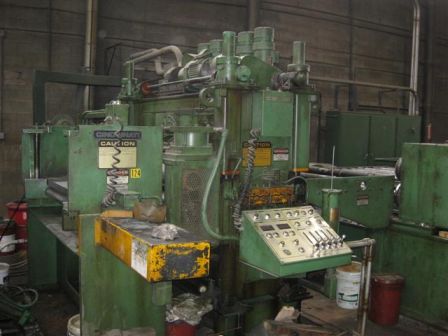

Cincinnati 17-Roll, 5-Hi Hydraulic Leveler
Model - LEV60-.135
S/N 91999
Coil Width - 60"
Max Thickness .135"
Number of Driven Rolls - 17
Drive - Universal

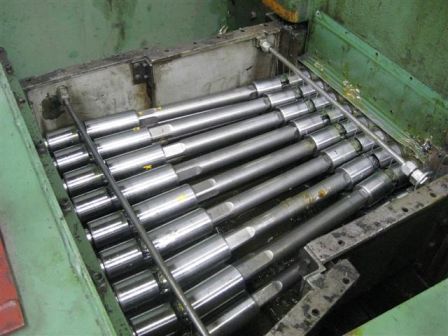

Leveler Roll Diameter - 2"
Gearbox - Falk
Model - 7502-02BS
Motor - GE
HP - 200
Drive - DC
RPM - 1750/2000
Amps - 320
Volts - 500
Cincinnati Edge Trimmers w/ 2 scrap choppers
w/ 2-speed pinch rolls
With meter & horizontal movement
Cincinati/Mayfran Inline Scrap Conveyor
S/N 92004
Belt Width - 18"
Discharge Height - 54 "
Cincinnati Hydraulic Carryover Table
Rubber coated rolls
Non-motorized

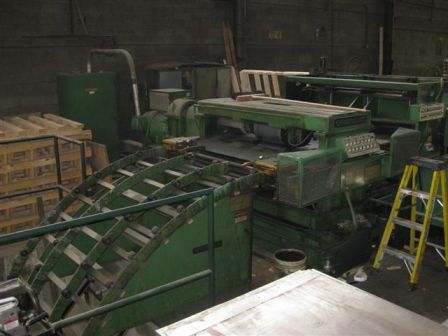

Cincinnati Blankmaster Quadrant Rolls
Model - TO60-.135
S/N 92005
Coil Width - 60"
Max Thickness - .135"
Cincinnati 60" Diagonal Correction Table
Model - DRF60-.135
S/N 92006
Power height adjustment of quadrant rolls
Power entry & exit rolls
Roll feed side guides
Power height adjustment of drive rolls
Motor - 43HP
Drive - DC
Cinicinnati High Speed Shear
Model - SHA60-.135
S/N 92029
Coil Width - 60"
Coil Capacity - .135"
Power height adjustment of near and far side edge guides

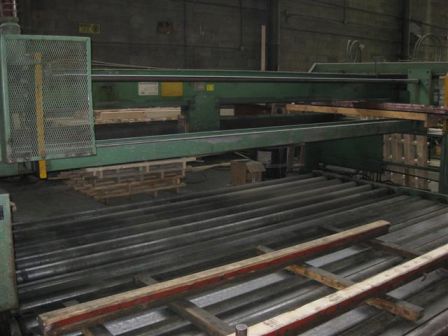

Cincinnati Stacker System
Model - RPS60-135-192-S
S/N - 61699
Coil Weight - 60"
Max Length - 192"
Elevated stacker
Side roller discharge conveyor
End stop

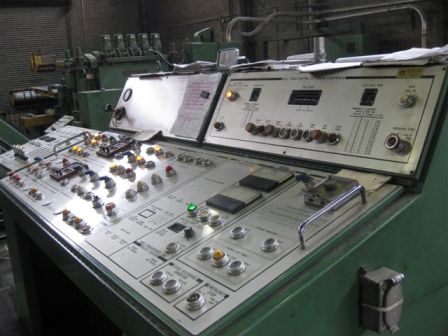

Cincinnati operator's control
