Protective Gas
Electric heated
Strip Width: 340mm
Max. Thickness: 2.0mm
Line Speed: 0.02-0.2 M/sec
Working Temperature: 1140 oC
Max. Temperature: 1300 oC

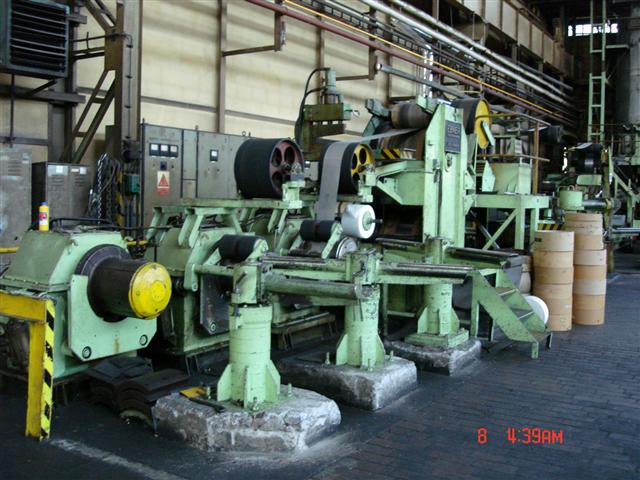

2 Decoilers
Coil I.D.: 380/400mm
Coil O.D.: 600mm
Coil Weight: 1000 KG
Crop Shear
Strip Welder
Strip Guiding Rolls up to Top

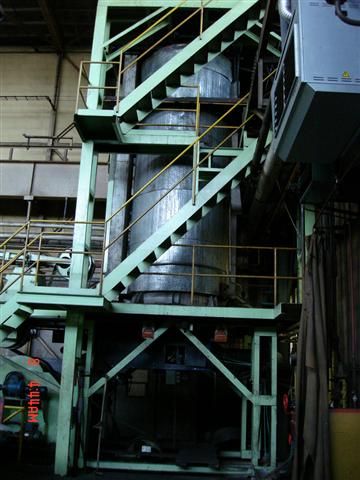

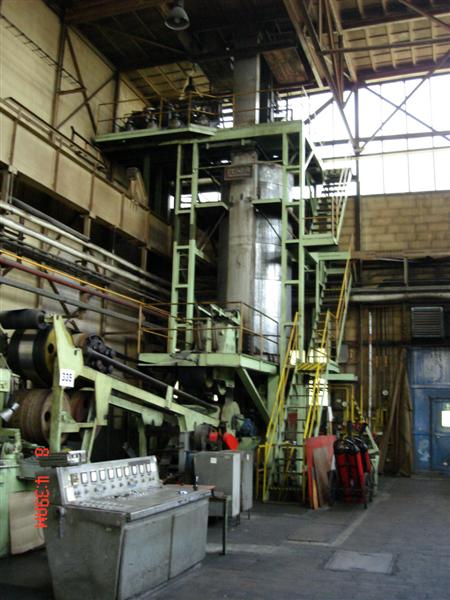

Electric heated Vertical Strip Furnace
Height: 6000mm
Vertical Strip Coolant Unit
Height: 8000mm
Cooled Exit Conveyor
Length: 15M
S-Type Strip Guiding and Drawing Unit
Roll Diam.: 700mm
Crop Shear
3 Recoilers
Coil I.D.: 350/380mm
Coil width: 380mm
Coil O.D.: 600mm
