76" X 66,000# X 1/4" Fimi Slitting Line
Age: 1997
Thickness Range: 2mm - 6mm
Coil Capacity: 30 Metric Ton
Entry Coil ID: 610mm - 760mm (24" - 30")
Exit Coil ID: 508mm & 610mm (20" & 24")
Max Coil OD: 2200mm (86")
Line Speed: 60 - 120 Meters/Min (200 - 400 FPM)
Thickness Cap. - 2.0mm - 6mm (.080"- .250")
23 cuts of 2.0mm @ 120M/M (400FPM)
16 cuts of 3.0mm @ 120M/M (400FPM)
10 cuts of 6.0mm @ 60M/M (200FPM)
Consisting of:
Two entry coil cars
Mandrel uncoiler, hydraulic expansion, sliding base,
DC generator dynamic brake, recirculating oil
gear box.
Peeler hold down roll combination
Pinch roll with three roll coil breaker
Crop Shear, hydraulic
Photo cell edge control
Edge guide unit, four rolls with pinch rolls

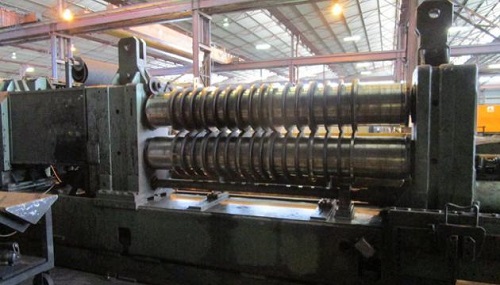

Slitter:
Two double eccentric heads, motorized
"swing out design," 260mm diam., arbor
(10 1/4"), 16:1 gear box ratio, 145KW Scime
D.C. motor (200 HP) 720-1880RPM, automatic
hydraulic clamping on slitter base for quick
change.
With full comlement of shimless tooling
Loop pit clam shell table
Scrap baller, hydraulic, auto wind, self eject.
Tension stand, continuous friction contact,
powered entry pinch rolls, automatic carpet
feed system.
Bridal strip feed, for automatically delivery of the
strip to recoiler mandrel.
Recoiler:
All hydraulic drum 360 degree collapse, 86"
mandrel face, recirculating oil gear box, 2 speed
input gear box, 195KW Scime DC motor (265HP)
924-2100RPM, double overarm seperator for
quick change.
Exit coil car
Storage coil rack
Turnstile, four arm, powered
Electrics, Reliance "maxitron" solid state
Tooling, line is fully tooled for multiple
two head set-ups- Tooling is shimless
Vickes Hydraulics
