MANUFACTURER - HERR VOSS
TYPE - MULTIBLANKING LINE
SHEAR CAPABILITY - STRAIGHT CUT & TRAPAZOID
STATUS - INSTALLED & UNDER POWER
MATERIAL WIDTH - 72" MAX - 12" MIN
MATERIAL THICKNESS - 0.018" MIN - 0.075" MAX LEVELER, 0.105" WITHOUT LEVELER
COIL WEIGHT - 40,000# (20 TON)
COIL ID - 16" - 20"
COIL OD - 72"
LINE DIRETION - LEFT TO RIGHT
ENTRY COIL CAR
V-TYPE FLOOR STANDING
POWERED LIFT AND TRAVERSE

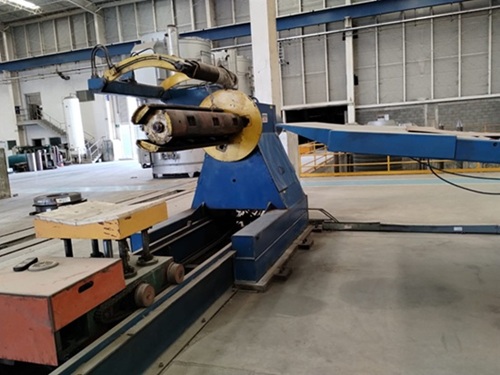

MANDREL UNCOILER
4-LEAF MANDREL DESIGN
POWERED HOLD DOWN ROLL
PNEUMATIC BRAKE
SLIDING BASE
HYDRAULIC MANDREL EXPANSION
PEELER TABLE
ADJUSTABLE EDGE GUIDES
ROLL FLATTENER
19 ROLL HERR VOSS 4HI KEYSTONE LEVELER
VKL 84/1.500/19/9 4HI
NUMBER OF ROLLS - 19
DIAMETER OF ROLLS - 1.5"
MOTOR HORSEPOWER - 100
QUADRANT TABLES

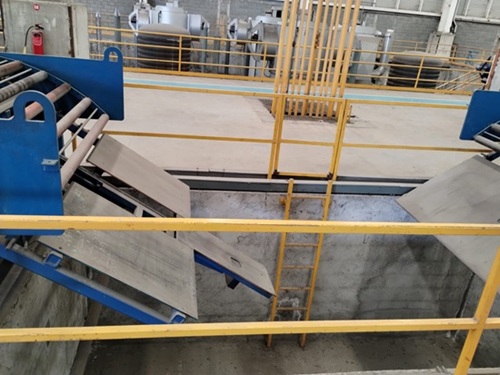

LOOPING PIT & TIGHT LINE OPERATION
SLITTING HEAD ASSEMBLY
ENTRY UNIT PINCH ROLLS
3 ROLL EXIT PINCH ROLLS
MECHANICAL SHEAR
10' CARRYOVER TABLE

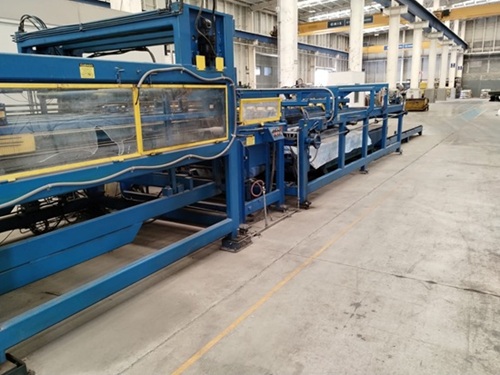

20' SHEET STACKER
DRIVEN ROLLS
20' EXIT ROLLER CONVEYOR
DRIVEN ROLLS

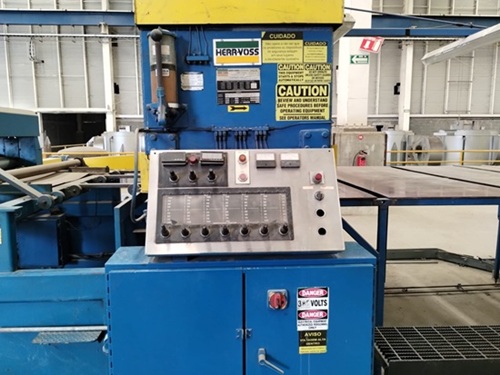

HYDRAULICS, ELECTRICS AND OPERATORS STAND
