Material: 1095 High Carbon Steel
Tensile Strength: 120,000 PSI
Shear Strength: 96,000 PSI
Thickness Range: .0045" - .025"
Line Direction: Left to Right
Cut Width & Thickness
.0045" = 1/4" , 3/8" , 1/2" , 3/4" , 1"
.0051" = 3/8" , 1/2" , 5/8" , 7/8"
.0062" = 3/8"
Line Speed: 1500 FPM
Entry Strip Width: 18'
Traverse Wider Coil Width: 8"
Entry Coil ID: 15" - 22"
Traverse Winder Coil ID: 11"
Exit Coil ID: 16"
Entry Coil OD: 54"
Ribbon Wound Coil OD: 39"
Exit Coil OD: 54"
Entry & Exit Coil Weight: 10,000#
Traverse Winder Coil Weight: 2250#`
Complete Line With:
Mandrel Uncoiler
Hold Down Roll
3 Leaf Hydraulic Expansion
15 HP Drive
Disc Drake
Edge Control Unit
Peeler Table / Deflector Roll

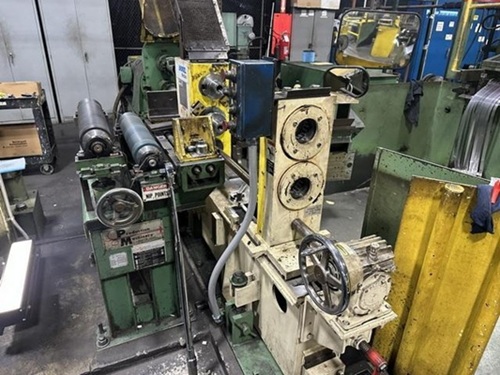

Newcor Strip Welder with Planishing
2 Roll Material: 1095 High Carbon Steel
Tensile Strength: 120,000 PSI
Shear Strength: 96,000 PSI
Thickness Range: .0045" - .025"
Line Direction: Left to Right
Cut Width & Thickness
.0045" = 1/4" , 3/8" , 1/2" , 3/4" , 1"
.0051" = 3/8" , 1/2" , 5/8" , 7/8"
.0062" = 3/8"
Line Speed: 1500 FPM
Entry Strip Width: 18'
Traverse Wider Coil Width: 8"
Entry Coil ID: 15" - 22"
Traverse Winder Coil ID: 11"
Exit Coil ID: 16"
Entry Coil OD: 54"
Ribbon Wound Coil OD: 39"
Exit Coil OD: 54"
Entry & Exit Coil Weight: 10,000#
Traverse Winder Coil Weight: 2250#`
Complete Line With:
Mandrel Uncoiler
Hold Down Roll
3 Leaf Hydraulic Expansion
Sliding Base
15 HP Motor
15 HP Motor
Disc Brake
Edge Control
Peeler Table / Deflector Roll
Newcor Strip Welder with Planishing
2 Roll Bridal Unit for Tension Control
Double Roll Tracking Roll for Strip Alignment
2 Sets of Rubber Coated Deflector Rolls
Edge Guides

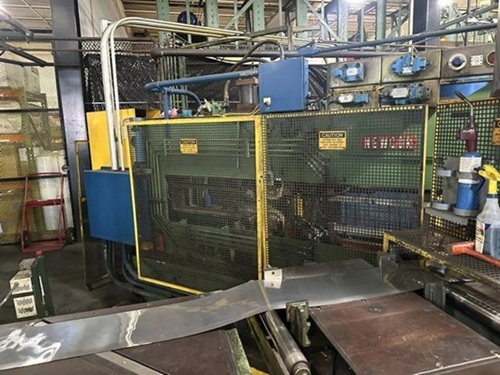

Andritz Slitter Head
New in 2016
5" Diameter Arbors
12 Sets of Quick Change Tooling Arbors
Pre-Packed Arbors
Shimless Tooling
Anti Friction Bearings
25 HP DC Drive, 1750/2000 RPM
Scrap Baller

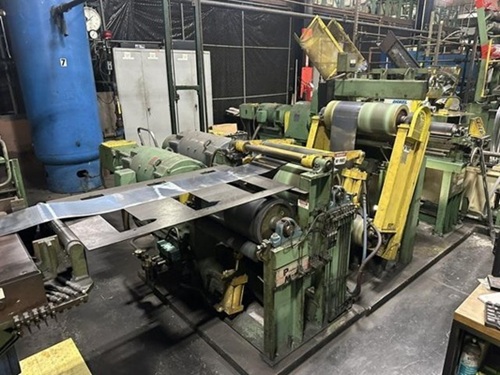

Recoiler
16" Diameter Drum
10,000# Coil Capacity
30 HP DC Drive
Hydraulic Push-Off
Hold Down Roll
21" Drum Face
1 Arm Exit Turnstile
Vertical Strand Separator
Aligns Strips after Exiting the Slitter
Deflector Rolls

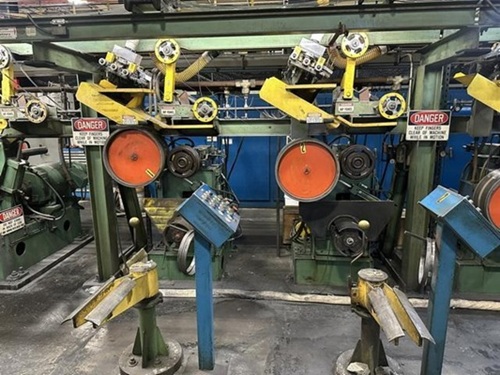

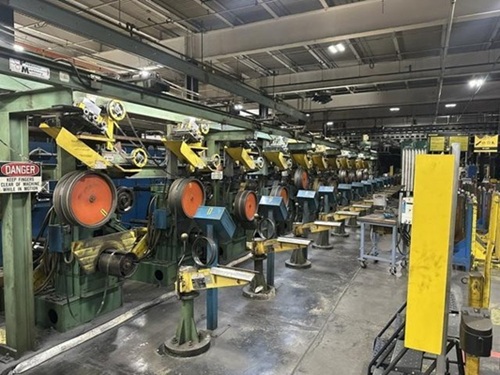

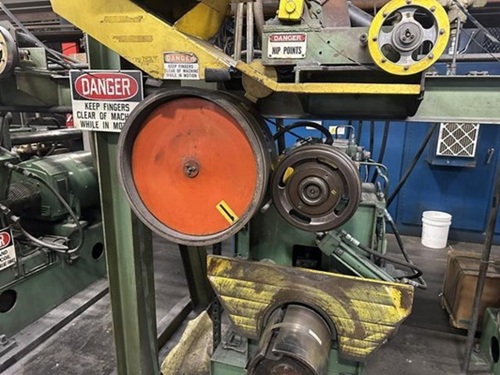

12 Oscillating Recoilers
11" Diameter Drums
Hydraulic Push-Off
Vertical Edge Conditioners
S Bridal Strip Tension Rolls (2)

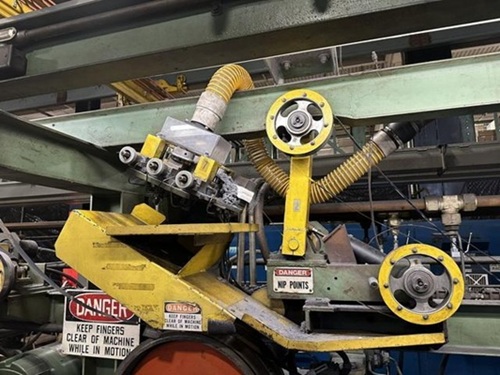

Hydraulic Traversing Oscillating Wheel
7.5 HP Drive
1 Arm Exit Turnstiles

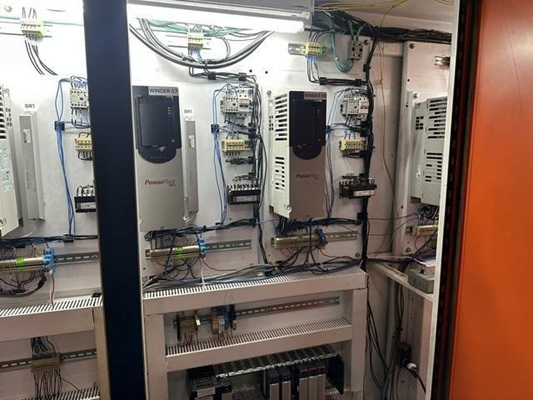

Powerflex Digital Drives 755
Allen Bradley PLC
Digital Drives
Digital Readouts
Central Hydraulic Units
Operator Push Button Stations

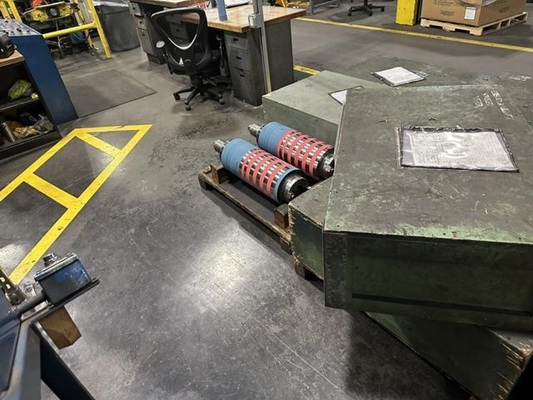

Slitter Tooling
Hydraulics & Electrics
