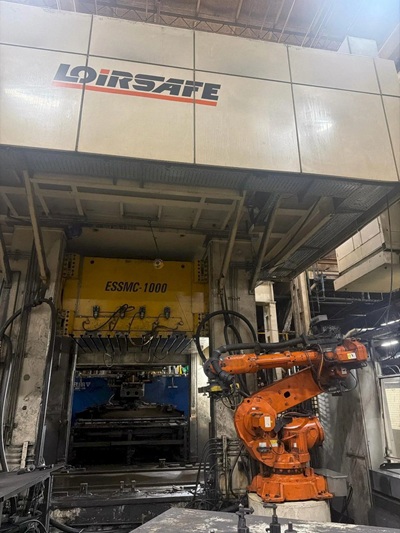

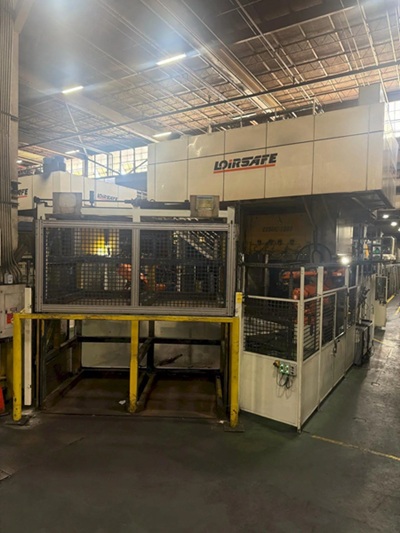

1000 TON LOIRE SAFE HOT STAMPING HYDRAULIC PRESS LINE W/ ROLLER HEARTH FURNACE
PRESS MANUFACTURER - LOIRE SAFE
YEAR - 2012
MODEL NUMBER - ESSMC 1000/30-22/22-13
MFG NUMBER - 16271
TYPE - HOT STAMPING HYDRAULIC PRESS
PRESS FORCE - 1000 - 10000 KN (1000 TON)
NUMBER OF TOTAL CYLINDERS - 3 (1 SINGLE ACTION & 2 DOUBLE ACTION)
MAX WORKING PRESSURE - 258
DAYLIGHT BETWEEN TABLE & RAM - 900MM MIN. - 2200MM MAX.
RAM STROKE - 1300MM
DIMENSIONS OF RAM - 3000MM L-R X 2200MM F-B
FRONTAL OPENING BETWEEN UPRIGHTS - 2600MM
LATERAL OPENING BETWEEN UPRIGHTS - 2300MM
PRESS HEIGHT ABOVE FLOOR - 7295MM
GUIDES
NUMBER OF RAM GUIDES - 8
TYPE OF GUIDE - FLAT GUIDES
GUIDE HEIGHT - 1500MM
MAXIMUM ADMISSABLE ECCENTRIC LOAD - 1000 KN L-R/M X 500 KN F-B/M
SPEED
APPROACH SPEED - 700MM/SEC.
RETURN SPEED - 700MM/SEC.
SLOW RETURN SPEED FOR TOOLING WITH NITROGEN CYLINDERS - 200MM/SEC.
MOTORS - 132 KW X 2
TOOLING/DIE DIMENSIONS
MAX. TOOL SIZE - 3000MM X 2200MM
MAX. TOOL WEIGHT - 40,000 KG
MAX. UPPER HALF TOOL WEIGHT - 25,000 KG
MAX. TOOL HEIGHT - 1500M
MAX. LOWER HALF TOOL HEIGHT - 800MM
BOLSTERS -
NUMBER OF BOLSTERS- 2
TYPE OF TABLES - SIDE MOVING BOLSTERS IN T-TRACK
LEFT TO RIGHT - 3000MM
FRONT TO BACK - 2200MM
TABLE OF HEIGHT ABOVE FLOOR - 600MM
NUMBER OF SLOTS - 28

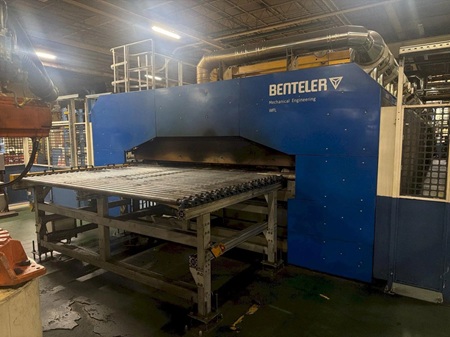

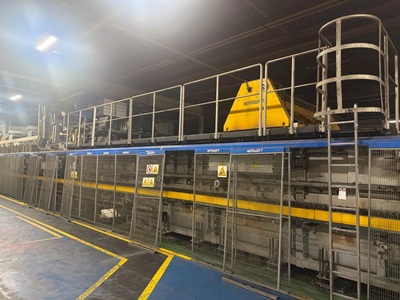

MAXIMUM DEPARATURE - 950 DEGREES CELCIUS
ATMOSPHERE - NATURAL GAS
HEATING ZONES - 12
TOTAL BURNERS - 19 x 30 to 70KW
FURANCE TEMPERATURE CONTROL - CBF Control Units

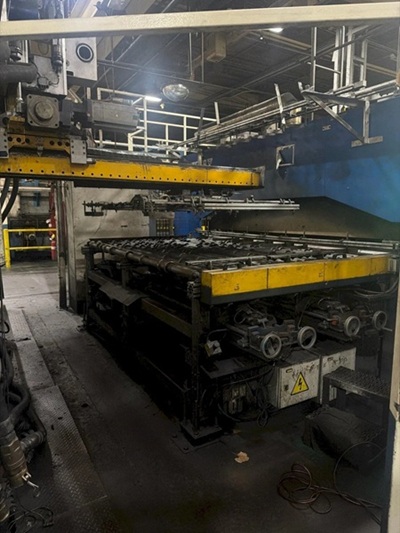

ROLLE TYPE (IN FURNACE) - HOLLOW CERAMIC TYPE
ROLLER TYPE (TRANSFER SECTION) -SOLID CERAMIC TYPE
APPROXIMATE NUMBER OF ROLLERS - 323
DIAMETER OF ROLLS - 60MM
PITCH OF ROLLS - 80MM
INSIDE FURNACE DIMENSIONS (APPROXIMATELY)
LENGTH - 29,200MM (GAS FIRED SECTION)
WIDTH - 2500MM
MAX PACKET LENGTH - 1500MM
VOLTAGE - 480 V, 3 PH, 60 CYCLE

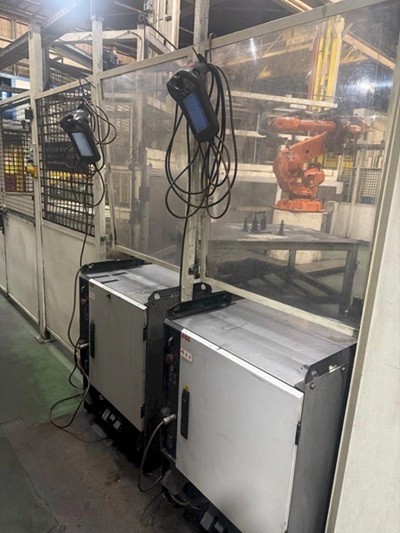

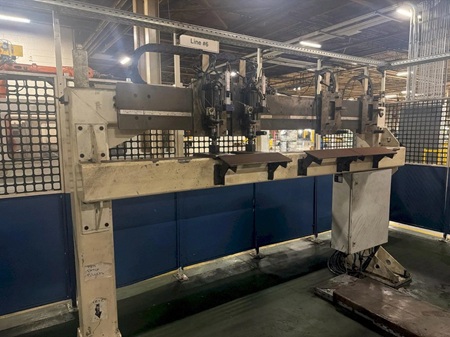

ROBOTS - QTY 4
ABB LOAD LH - 6640-130/3.2 W IRC 5 CONTROL (QTY 6)
