1250MM X 3MM X 20 TON TESI/AKV CUT TO LENGTH LINE   Our stock number: 113922

1250MM X 3MM X 20 TON TESI/AKV CUT TO LENGTH LINE

Click on picture below for larger version
1250MM X 3MM X 20 TON TESI/AKV CUT TO LENGTH LINE1250MM X 3MM X 20 TON TESI/AKV CUT TO LENGTH LINE1250MM X 3MM X 20 TON TESI/AKV CUT TO LENGTH LINE1250MM X 3MM X 20 TON TESI/AKV CUT TO LENGTH LINE
1250MM X 3MM X 20 TON TESI/AKV CUT TO LENGTH LINE1250MM X 3MM X 20 TON TESI/AKV CUT TO LENGTH LINE1250MM X 3MM X 20 TON TESI/AKV CUT TO LENGTH LINE1250MM X 3MM X 20 TON TESI/AKV CUT TO LENGTH LINE


Material: ..................Cold Rolled Steel, max 450 N/mm2
Coil Weight Max...............20 Ton
Coil OD Max ..................1650mm
Coil ID Range..................500mm to 620mm
Max Strip Thickness.............3mm
Max Strip Width...............1250mm
Line Direction..................Right to Left

LINE CONFIGURATION

Coil Car
Uncoiler
Entry Table
UNGERER 4 HI Leveler
Pit



AKV Pinch Roll, Side Trim
AKV Scrap Choppers (2)
AKV Shear
Roller Conveyor

UNGERER 6 HI 23 Roll Leveller

Roller Conveyor
Leaf Type Stacker

EQUIPMENT SPECIFICATIONS

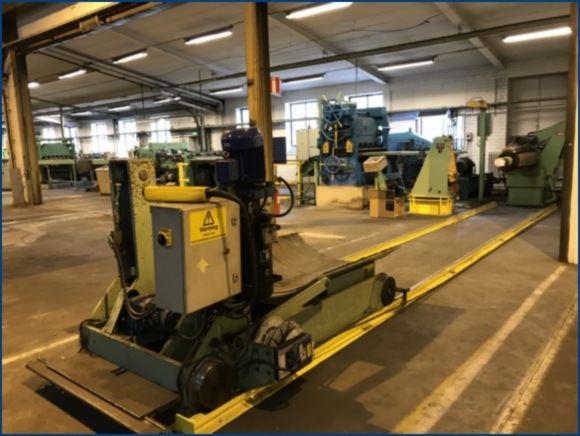

ENTRY COIL CAR
Manufactured by C.M. AMEK & SVETS, 2002
Coil Weight Max...........20 Ton
Hydraulic-Mechanical Lift
Hydraulic Motor/Pump/Reservoir
Travel on Rails by Electric Motor Drive through Gear Reducer

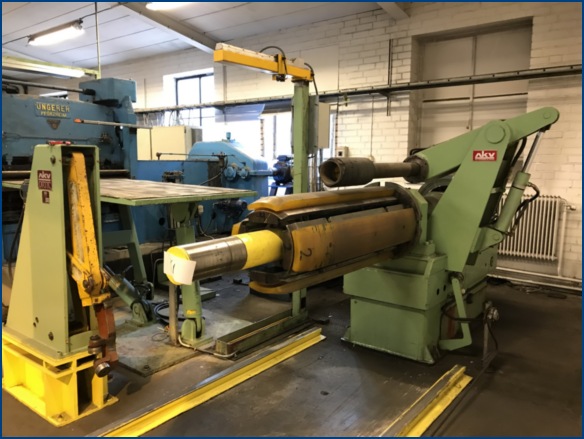

UNCOILER, Mandrel Type, Mfg. AKV

Coil Weight Max................20 Ton
Coil OD Max ...................1650mm
Mandrel ID Range...............500mm to 620mm
Mandrel face..................1250mm
DC Motor Drive.................
Disk Brake
Hydraulic Expansion, Traverse
Snubber Roll with Hydraulic Motor
Outboard support, Mfg. AKV

TABLE
Hydraulic operation

Hydraulic Power System Motor..............

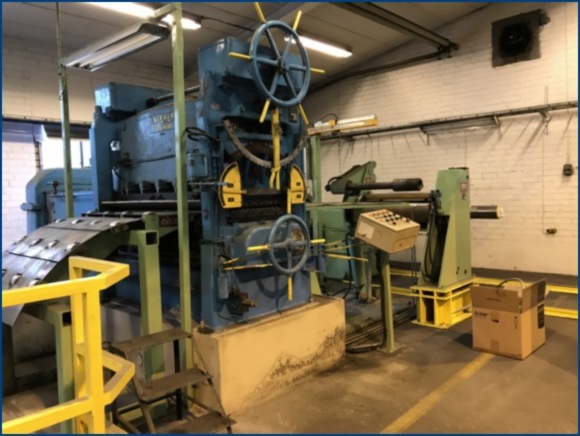

UNGERER 4 HI 23 Roll Leveler
Model RM1500/1.75/23
Work Roll Diameter..............1.75" (44.45mm)
5 Back up Flights, Handwheel Adjustment
Handwheel Bottom Adjustment
Main Motor Drive..............22/25.3 Kw, 400 Volt/50 cy; 460 volt/60 cy

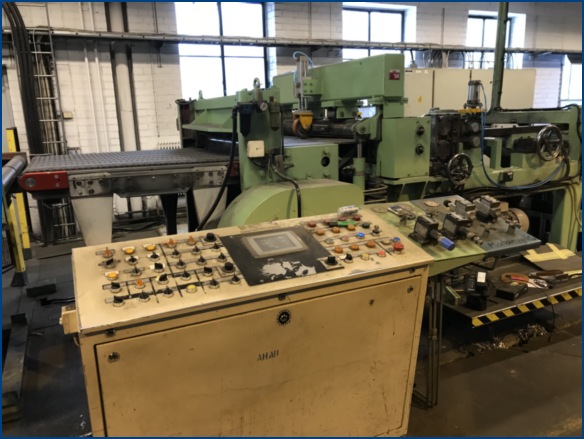

Operator Control Pulpit

Pit with Entry and Exit Roller Guide Ramps, Mfg. AKV

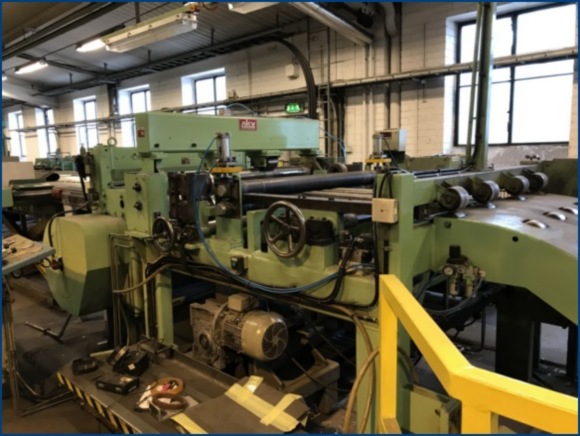

Pinch Rolls, Mfg. AKV, Neoprene Rolls
Side Trim, Mfg. AKV
Scrap Choppers (2)
Pinch Rolls, Mfg. AKV, Steel Rolls

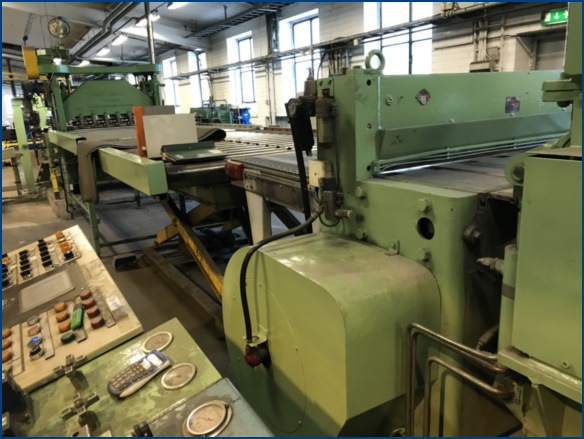

Shear, Mfg. AKV, Underdriven, Air Clutch


Belt Conveyor, Rubber, Length- 2,000mm


Scissor Lift Roller Conveyor, Length-1000mm


Roller Conveyor Table.....2,000mm

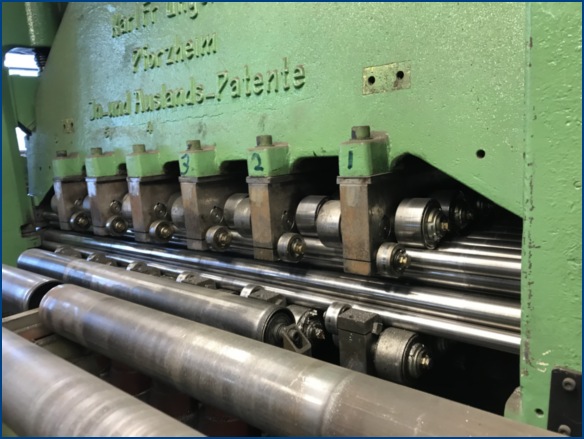

UNGERER 6 HI 23 Roll Leveler
Model RM/15/46/32, 1957 Rebuilt by TESI, 2016
Max. Material Thickness...............3mm
Work Roll Diameter.................46mm
6 Back up Flights, Hydraulic Adjustment
Motorized Top Roll Bank Adjustment; Handwheel Bottom
Main Motor Drive.............. 22 KW, 400/440 volt- 60/50 cycle
Operator's Control Pulpit

Roller Exit Conveyor

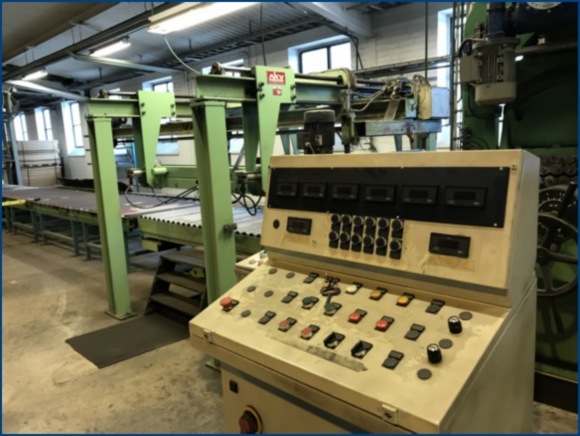

AKV Leaf Type Stacker

Roller Table Runout, 10 meter

Scissor Lift Table

Master Control Panel, Flat Screen
