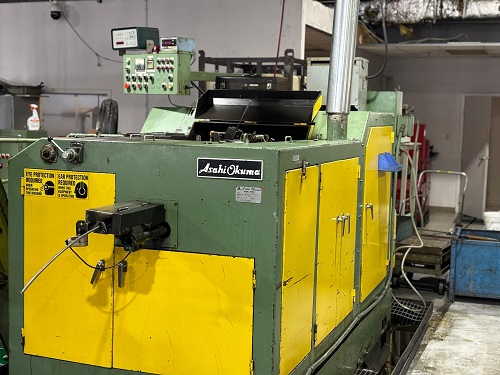

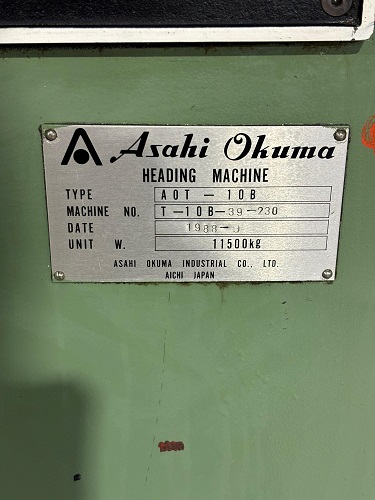

3/8" ASAHI OKUMA MDL# AOT 10B 2 DIE 2 BLOW COLD HEADER

MAXIMUM CUTOFF DIAMETER (100,000 PSI) ( .393") - 10MM
MAXIMUM KICKOUT LENGTH ( 3") - 76.2MM
MINIMUM KICKOUT LENGTH ( .590") - 15MM
MAXIMUM CUTOTFF LENGTH ( 3.149") - 80MM
PIECES PER MINUTE - 200
ELECTRICS - AC MOTOR AND CONTROLS 200 VOLTS 3 PHASE
WEIGHT - 24,250 LBS.
O.A. DIMENSIONS - 5'7" X 13'2"

EQUIPPED WITH: SET UP JIG/ EXTRA TRANSFER, SPARE PUNCH BLOCKS, DIE BLOCK,
BUSHING CUTOFF, PKO IN BOTH PUNCHES AND STRIPPER / WIPER MECHANISM
IFO TYPE STRAIGHT ACROSS TRANSFER WITH EXTRA DISCHARGE FINGER SET FOR

ELIMINATING DOUBLE HITS IN THE 2ND DIE.
SHORT CUTOFF DETECTOR AND AUTOMATIC DROP, 1ST FINGER FORCE OPENING
CENTRIFUGAL OIL CLEANER
QUICK CHANGE FEED ROLLS
2 PLANE WIRE STRAIGHTENER
STOCK GAUGE WITH HANDLE AND COUNTER
2 SPEED MOTOR
FULL SOUND ENCLOSURE
PD SENSOR
FINISH PARTS CONVEYOR WITH ROLL SORTER
