NATIONAL MODEL# 245 HIGH SPEED 6-STATION 5-DIE PARTS FORMER
Our stock number:
116068
Click on picture below for larger version

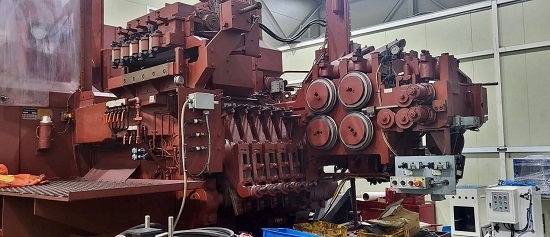

National Model 245 High Speed 6-Station 5-Die
Parts Former, Built 1988
Major Specifications Metric Standard
Max. Cutoff diameter............24.0 mm.........0.950"
Max Length kick.......................170.0mm.......6.700"
Min. Length kick.......................19.0mm.........0.750"
Max. Blank Length....................170.0mm.......6.700"
Length of Die block..................184.15mm..... 7.250"
Forging Tonnage.....................275tons..........275tons
Max Load per station................67.5%.............67.5%
Punch diameter...........................75mm............3.000"
Die diameter.................................120.65mm.....4.750"
Die length.......................................241mm..........9.488"
Main Motor.................................55.0 kw..........75.0 HP
Net weight (approx.) .....................55,000.0 kgs...122,000.0lbs
Floor Space
Length...............................................5.83m............. 19'2"
Width................................................3.41m............. 11'3"
Height...............................................3.44m............. 11'4"
Complete with:
5 Full forming dies
Universal transfer system
Finished & Scrap conveyors
Overtop TKO
Pneumatic clamping
Dual feed rolls
Transfer lift/rotate Transfer fixture at operator station
Condition: ..............Excellent - In production for approx.. 6yrs after
full rebuild.
