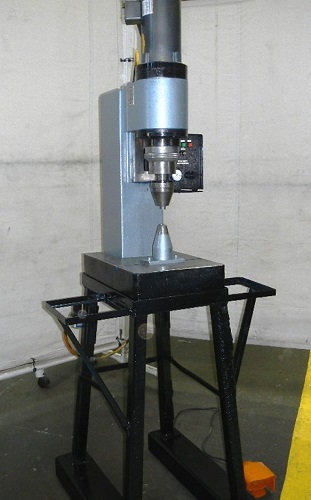

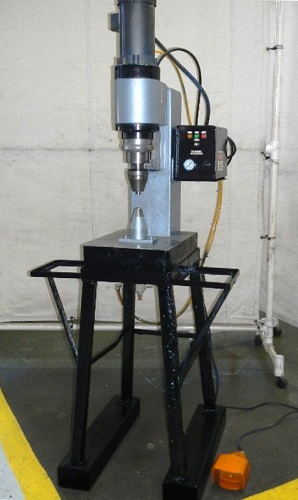

.55" TAUMEL ORBITAL HEAD FORMING MACHINE*
MODEL T-501 S/N MAL-135 NEW 2002

STROKE ................... 0-1.50" BY .001" INCREMENTS
FORCE .................... 5,300 LBS @ 100% PSI
CAPACITY ................. .55"
THROAT ................... 6.6"
BED SIZE ................. 14-3/4" DEEP X 12-3/4" WIDE
CYCLE TIME PROGRAMMABLE .. 0-5.0 SECONDS
FLOOR TO TABLE DISTANCE .. 42"
AIR SUPPLY ............... 10-100 PSI
MOTOR .................... 3/4 HP

WEIGHT 600 LBS.
DIMENSIONS 24" X 31" X 80" H

MACHINE IS EQUIPPED WITH:
- REMOTE FOOT PEDAL
- INFINITELY ADJUSTABLE CYCLE TIME
- INFINITELY ADJUSTABLE HEADFORMING PRESSURE
- BUILT-IN PRESSURE INDICATOR
- INTEGRAL MICROMETER STROKE ADJUSTMENT
- HEIGHT (COARSE) ADJUSTMENT
- FULLY AUTOMATIC OR SEMI-AUTOMATIC CYCLING
- SIMPLE TOOLING SET-UP
- LONG TOOL LIFE
