Click on picture below for larger version

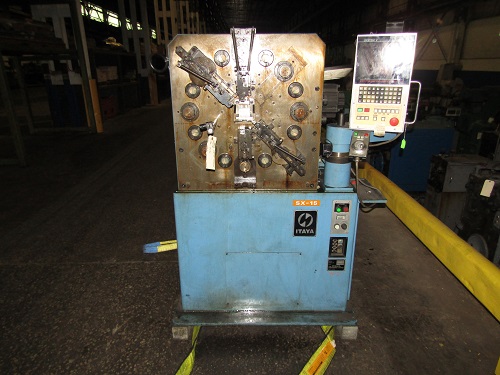

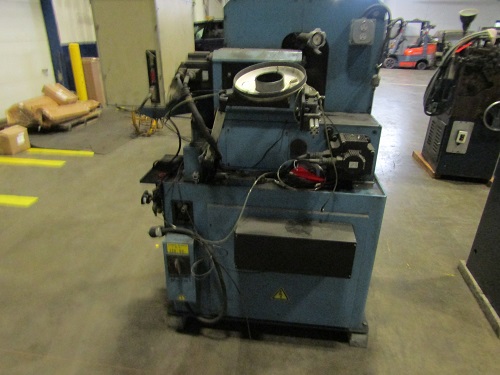

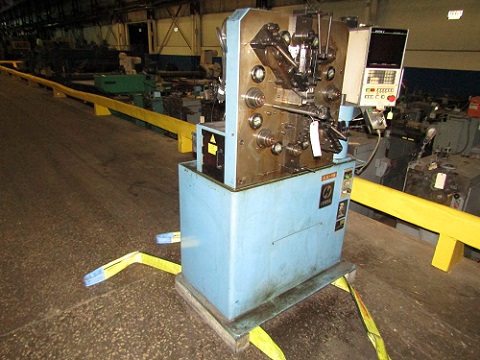

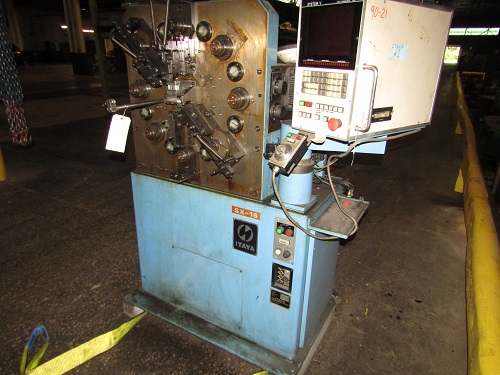

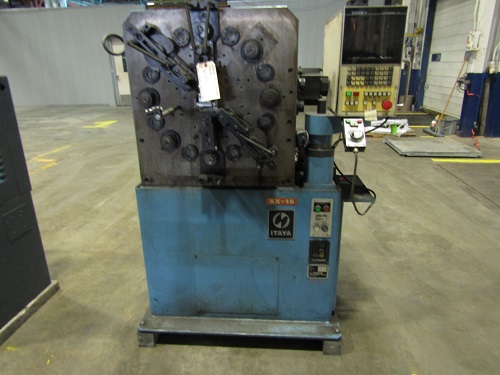

ITAYA SX-15 SPRING COILER

Forming Capacity: Wire Diameter: .015" - .059" (.4-1.5 mm)
Outside Diameter: .590" (15 mm) max.
Coil Length 3.93" (100 mm)
Feed Axis: Minimum Increment: .002" (.05 mm)
Maximum Increment: 393.698" (9999.98 mm)
Maximum Wire Speed: 4,409.4"/min (112 ,m/min)
Watts: 1800
Cam Axis: Minimum Increment: 0.05 Degree
Maximum Increment: 359.95 Degree
Maximum Speed: 375 rpm
Watts: 1800
Peripheral Device: Input: 16 Ports
Power Source: AC 200V, 3 Phase,
Floor Space: 64" x 50" x 51" HxWxD, Weight: 2050 lbs.
Computer Characteristics: Control Unit: 32 Bit Micro Processor
Internal Memory: 600 Step, External Memory: 3.5" Floppy Disk
Equipped with
Set up for Custom Power Spring (Flat Stock)
4 Forming Slides
Remote MPG
