CIDAN #FUTURA 25, CNC FOLDING MACHINE   Our stock number: 117058

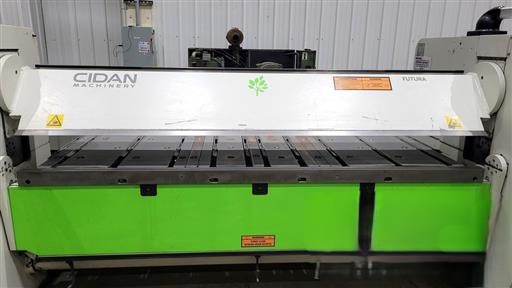

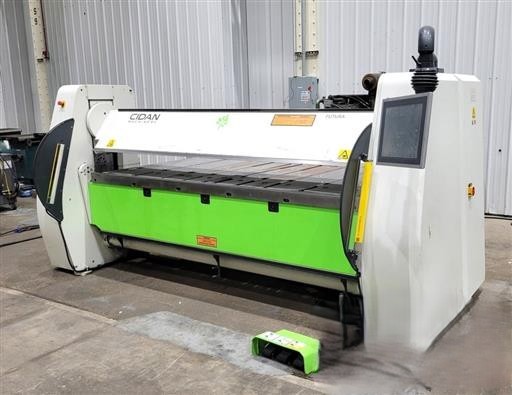

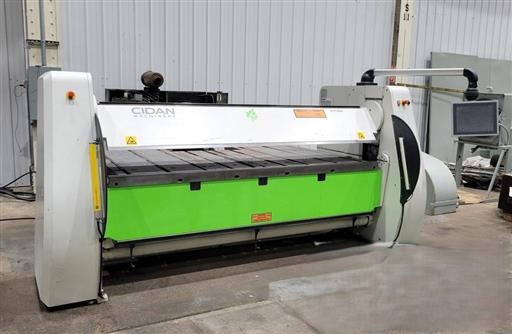

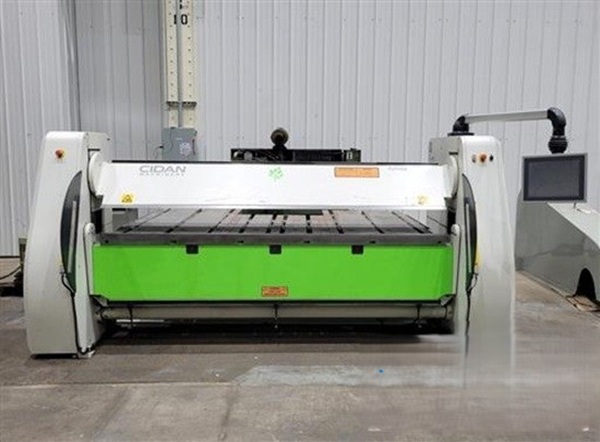

CIDAN #FUTURA 25, CNC FOLDING MACHINE

Click on picture below for larger version
CIDAN #FUTURA 25, CNC FOLDING MACHINECIDAN #FUTURA 25, CNC FOLDING MACHINECIDAN #FUTURA 25, CNC FOLDING MACHINECIDAN #FUTURA 25, CNC FOLDING MACHINE
CIDAN #FUTURA 25, CNC FOLDING MACHINECIDAN #FUTURA 25, CNC FOLDING MACHINECIDAN #FUTURA 25, CNC FOLDING MACHINE


YEAR: 2017

FEATURES:

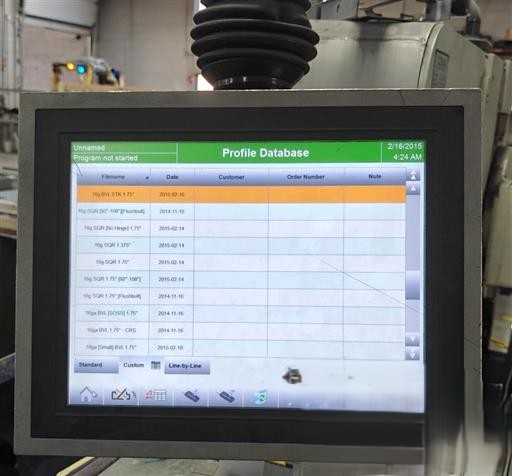

PRO-LINK GRAPHICAL TOUCHSCREEN CNC CONTROL
COMBI CLAMPING BEAM WITH 30 DEG. STRAIGHT RAIL AND
103 MM HIGH BOX AND PAN TOOLING
61" BACK GAUGE

SPECIFICATIONS:

FOLDING CAPACITY STEEL: 13 GA.
FOLDING CAPACITY STAINLESS: 16 GA.
MAXIMUM FOLDING LENGTH: 102.36"
CLAMPING BEAM OPEN HEIGHT: 7.7"
BACK GAUGE RANGE: 61"
CLAMPING BEAM MOTOR: 3 H.P.
FOLDING BEAM MOTOR: 1.5 H.P.
APPROXIMATE MACHINE DIMENSIONS: 142" X 71" X 73"
APPROXIMATE MACHINE WEIGHT: 9,470 LBS.

EQUIPPED WITH:

PRO-LINK GRAPHICAL TOUCHSCREEN CNC CONTROL
COMBI CLAMPING BEAM WITH 30 DEG. STRAIGHT RAIL AND
103 MM HIGH BOX AND PAN TOOLING
61" BACK GAUGE
MANUAL CROWNING ADJUSTMENT
MOTORIZED SHEET THICKNESS ADJUSTMENT

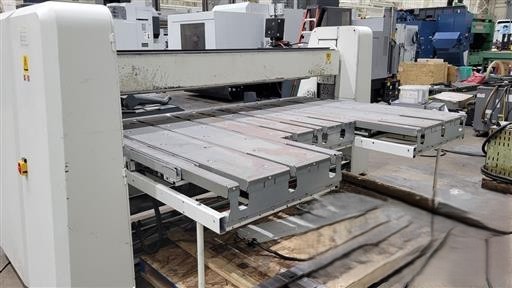

BALL TRANSFERS ON BACK GAUGE TABLE
ELECTRIC FOOT SWITCH
MISC. TOOLING
