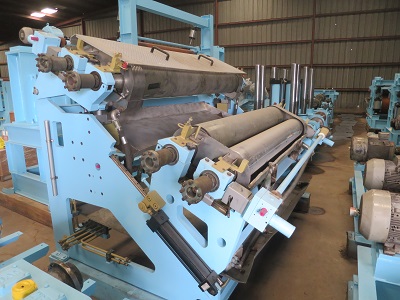

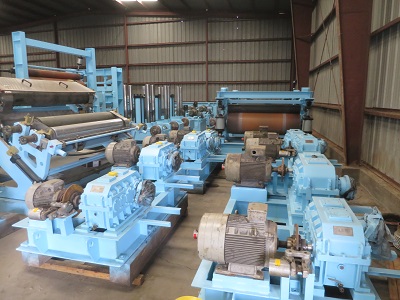

Click on picture below for larger version

62" (1574mm) Refurbished 2-Coat Coil Coating Line W/ Brand New Components

This is a line made up of used and brand new components with significant

multimillion dollar investment.



General Line Specifications:

Strip Width = 62" (1575 mm)
Strip Thickness = .010 - .050" (0.25 - 1.27 mm)
Material = aluminum, mild steel, galvanized, etc.
Line Speed = 300 fpm (91.5 mpm)
Coil ID - 16 & 20" (406 & 508 mm)
Coil OD - 72" (1829 mm)
Weight - 50,000 lbs (27,272 kg)
Electrics - 480-500V / 3ph / 60Hz

Line Components:
Entry Coil Car #1 with Coil Saddle - New by Globus
Uncoiler #1 - New by Globus
Entry Coil Car #2 with Coil Saddle - New by Globus
Uncoiler #2 - New by Globus
Pinch roll 1 with feed table - New by Globus
Pinch roll 2 with feed table - New by Globus
Entry Shear
Strip Joiner - Behlen Type
Deburring Unit - New by Globus
Bridle Roll #1

Entry Accumulator Tower - New - Engineering only (No Structure)
Entry Accumulator rolls & bearings - New - by American Roller / B&D
Steering Roll #1 Frame/Rolls
Steering Roll #1 Controls - New by Maxcess
Bridle Roll #2
Pretreatment Wash Sections - New by Globus
Pretreatment Rinse Sections - New by Globus
Bridle Roll #3 - New by Globus (functioning as tension leveler entry bridle)
Tension Leveler - New by Globus - Actual Flex-Roll Section
Bridle Roll #4 - New by Globus (functioning as tension leveler entry bridle)
Steering Roll #2 Frame/Roll
Steering Roll #2 Controls - New by Maxcess

Abrader - New by EFI
Bridle Roll #5
Steering Roll #3 Frame/Rolls
Steering Roll #3 Controls - New by Maxcess
Chem-Coater - Globus unit, new in 2013
Chem-Coater Oven - New by EPCON
Steering Roll #4 Frame/Rolls
Steering Roll #4 Controls - New by Maxcess
Primer Coater - 3-roll type with load cells, new 2004
Primer Oven - New by EPCON
Primer Quench
Steering Roll #5 Frame/Rolls
Steering Roll #5 Controls - New by Maxcess
Bridle Roll #6
Steering Roll #6 Frame/Rolls
Finish Coater 3-roll type with load cells, new 2004
Finish Oven - New by EPCON
Finish Quench
Steering Roll #7 Controls - New by Maxcess
Bridle Roll #7
Exit Accumulator Tower - New - Engineering only (No Structure)
Exit Tower rolls & bearings - New - by American Roller / B&D
Steering Roll #8 Controls - New by Maxcess
Exit Shear
Exit Deflector Roll
Recoiler with Coil Saddle - New by Globus
Belt Wrapper - New by Globus
Core loader - New by Globus
Exit Coil Car - New by Globus
All the GLOBUS equipment includes new motors
The EPCON ovens are complete new with fans, electrical panels and burners
