24" x 0.062" DAHLSTROM CUT TO LENGTH LINE

MANUFACTURER - DAHLSTROM
LINE DIRECTION - LEFT TO RIGHT
MAX COIL WIDTH - 24"
THICKNESS RANGE - 0.026" - 0.062"
MAX COIL WEIGHT - 5,000 LBS.
SPEED - 20 - 60 FPM

LINE CONFIGURATION

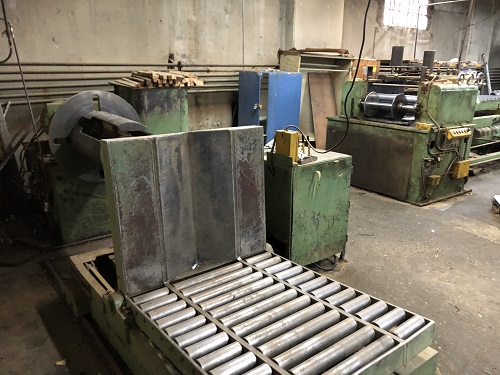

COIL CAR / UPENDER
RECEIVING ROLLER TABLE DIMENSIONS.....38" W X 46" DEPTH
PLATFORM DIMENSIONS...............38" WIDTH X 32" DEPTH
HYDRAULIC OPERATION.............TILT AND TRAVEL
HYDRAULIC MOTOR PUMP RESEVOIR
CURRENT CONFIGURATION FEEDING UNCOILER FROM SIDE

DAHLSTROM UNCOILER
MODEL 5A-24-1620
COIL WEIGHT MAX..................5000 LBS.
ID/OD COIL DIMENSIONS..................16"-20" ID / 48" OD
MANDREL LENGTH..................29"
AIR EXPANSION, AIR BRAKE

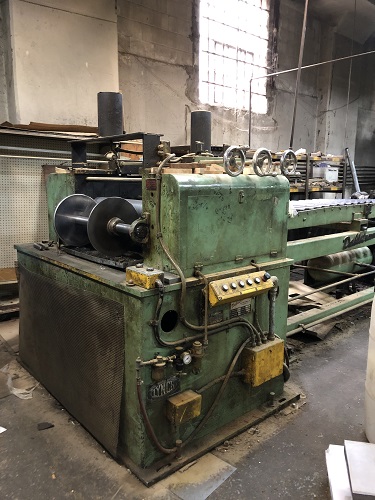

DAHLSTROM COILSTRAIGHTENER
MODEL 24-16-10
CAPACITY.....................0.026" TO 0.062"
ROLL DIAMETER..................3"
ROLL SPACE....................24"
SPEED.......................20 TO 60 FPM
SERIAL #......................S-360

DAHLSTROM HUMP TABLE
MODEL HT-13
SERIAL #......................H-127

DAHLSTROM HIGH SPEED SHEAR
MODEL..............1HS
STROKE......................5/8"
FLYWHEEL RPM...................570
MOTOR HP.....................3
SERIAL # ......................SH-131

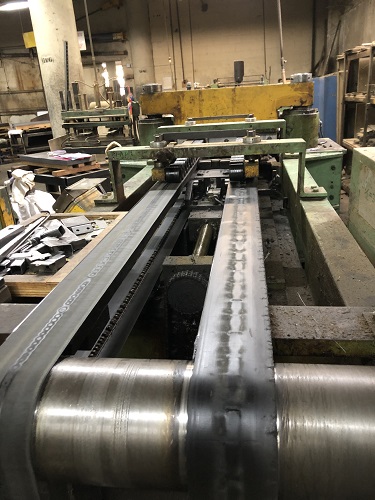

STACKER & RUNOUT OUT TABLE
MODEL 4SPS
MATERIAL LENGTH.................9"- 48"
MATERIAL WIDTH..................9" - 24"
SPEED........................35 TO 105 FPM
SERIAL #.......................M-333

MOTOR & CONTROLS
