78" x .47" (2000MM X 12MM) X 30 TON MARIANI CUT TO LENGTH LINE   Our stock number: 115440

78 x .47 (2000MM X 12MM) X 30 TON MARIANI CUT TO LENGTH LINE

Click on picture below for larger version
78 x .47 (2000MM X 12MM) X 30 TON MARIANI CUT TO LENGTH LINE78 x .47 (2000MM X 12MM) X 30 TON MARIANI CUT TO LENGTH LINE78 x .47 (2000MM X 12MM) X 30 TON MARIANI CUT TO LENGTH LINE
78 x .47 (2000MM X 12MM) X 30 TON MARIANI CUT TO LENGTH LINE78 x .47 (2000MM X 12MM) X 30 TON MARIANI CUT TO LENGTH LINE78 x .47 (2000MM X 12MM) X 30 TON MARIANI CUT TO LENGTH LINE


Make: Athader / Mariani (Italy)
Material Width: 800mm - 2000mm
Material Thickness: 2mm - 12mm
Coil Weight: 30 ton
Max Material Strength: 500 n/mm2
Coil ID: 508mm - 800mm
Coil OD: 2000mm
Speed: 15 meters per minute
Direction: Right to Left

Entry V-Type Coil Car
Pit Type Design
Powered Lift & Traverse

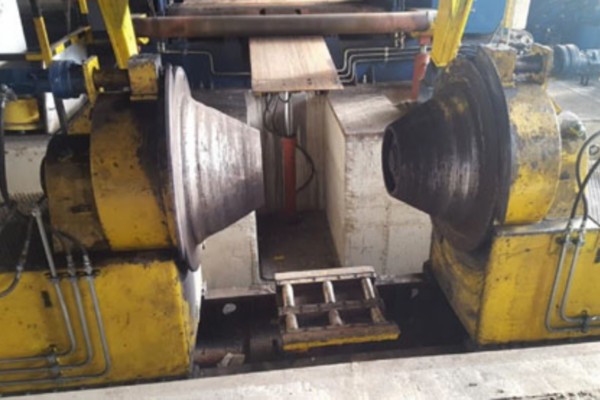

Cone Type Uncoiler
Powered Hold-Down Roll
Hydraulic Cone Adjustment
Feed-Up Motor
Sliding Bases
Hydraulic Peeling Table

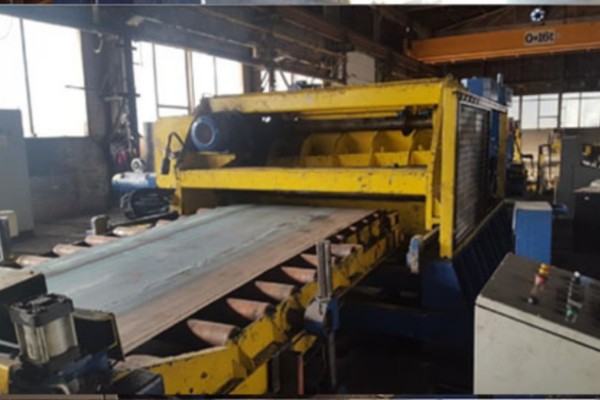

4-Hi Corrective Leveler # 1
Number of Work Rolls: 11
Work Roll Diameter: 90mm
Number of Back-Up Flights: 10
Powered Work Rolls Adjustment
DC Motor Drive & Gear Box

4-Hi Corrective Leveler # 2
Number of Work Rolls: 17
Work Roll Diameter: 70mm
Number of Back Up Flights: 18
Powered Work Rolls Adjustment
DC Motor Drive and Gear Box

Flying Shear
Mechanical Traverse
Pneumatic Clutch & Brake
AC Motor Drive

Sheet Stacker
Drop Type Mechanical Design
Maximum Sheet Length: 12m
Driven Exit Conveyor
Driven End Conveyor

Electrics, Hydraulics, Controls, Newer Drives (2017)
