DESCRIPTION:

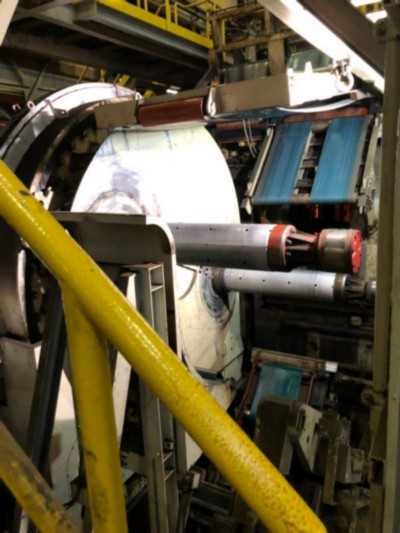

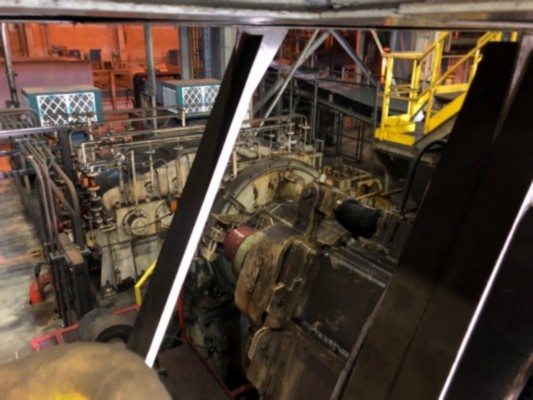

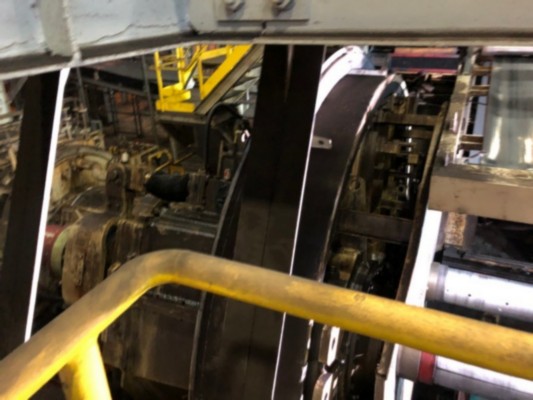

THIS DOUBLE MANDREL CAROUSEL RECOILING SYSTEM ENABLES A PROCESS LINE TO RUN

CONTINUOUSLY AND EFFICIENTLY ALLOWING FOR A FINISHED COIL TO BE WOUND ON THE

FIRST RECOIL MANDREL AND COIL REMOVED AS THE SECOND MANDREL IS POSTIONED TO

RECEIVE THE INCOMING COIL. DOUBLE MANDREL CAROUSEL SYSTEM IS CURRENTLY

INSTALLED ON CONTINUOUS ANNEALING LINE FOR TINPLATE AND SHEET STEEL

PRODUCTION.

GENERAL DESCRIPTION:

MANUFACTURER - KAWASAKI MITSUBISHI
EXIT SPEED TIN PLATE - 2300 FPM
EXIT SPEED SHEET - 12078 FPM
TINPLATE THICKNESS RANGE - 0.203MM - 0.381MM
SHEET THICKNESS RNAGE - 0.305MM - 1.626MM (DQSK/DDQ - 0.305MM - 1.2MM)
WIDTH TINPLATE - 635-1016MM
WIDTH SHEET - 609.6 - 1371.6MM
COIL WEIGHT MAX - 30 TON
COIL ID - 420MM - 508MM (WITH RUBBER SLEEVE)
COLLAPSED ID - 387.5MM
COIL OD MAX - 1981MM
COIL OD MIN TINPLATE - 1019MM
COIL OD MIN SHEET - 838MM
LINE DIRECITON - RIGHT TO LEFT

GENERAL COMPONENT LIST FOR DOUBLE CAROUSEL RECOILING SYSTEM
ROCKING TYPE FLYING EXIT SHEAR W/ PINCH ROLL
150 HP/110 KW, 515 RPM DC MOTOR W/ GEARBOX AND COUPLING
80MM STROKE
30-500 MPM

SCRAP DISPOSAL SYSTEM

EXIT DEFLECTOR ROLL W/ EXIT CONVEYOR

RUBBER SPOOL

TRAVELING BELT WRAPPER

CAROUSEL TENSION REEL W/ TWO MANDRELS
300 KW DC MAIN TENSION REEL DRIVE MOTOR & 2 SPEED GEARBOX ASSEMBLY
(2) 90KW DC MANDREL REEL MOTORS WITH GEARBOX ASSEMBLY , 850 INPUT RPM

OUTBOARD BEARING SUPPORT

SNUBBER ROLL

EXIT COIL CAR, COIL CAR CONVEYOR & BANDING UNIT
(8) COIL STORAGE POSITIONS
838MM - 1981MM COIL OD BANDING CAPABILITY
420MM OR 508MM COIL ID BANDING CAPABILITY
609MM - 1371MM COIL WIDHT BANDING CAPABILITY
0.203MM - 1.626MM THICKNESS CAPABILITY
UP TO 30 TON COIL WEIGHT BANDING COIL CAR, CONVEYOR AND BANDING CAPABILITY
