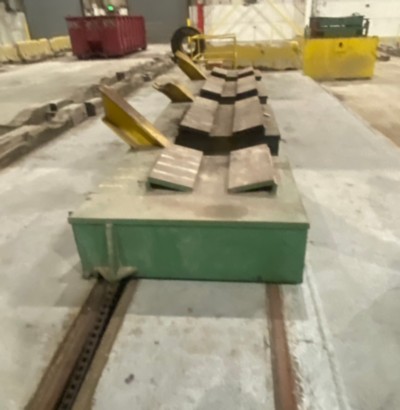

69,000#/207,000# PRO-ECO CROSS-BAY COIL TRANSFER CAR w/ THREE (3) COIL CAPACITY
Our stock number:
116182
Click on picture below for larger version
Manufacturer: Pro-Eco
Number of Coils: Three (3) coils Max.
Individual Coil Weight: 69,000# (31,298 Kg) Max.
Total Transfer Car Capacity:207,000# (93,894 Kg) Max.
Coil Width: 72" (1829 mm) Max.
Coil OD: 80" (2,032 mm) Max.
Coil Orientation: "V" Saddle / Coil ID parallel to car travel
Drive: Hydraulic gearmotor driving heavy-duty chain & sprocket

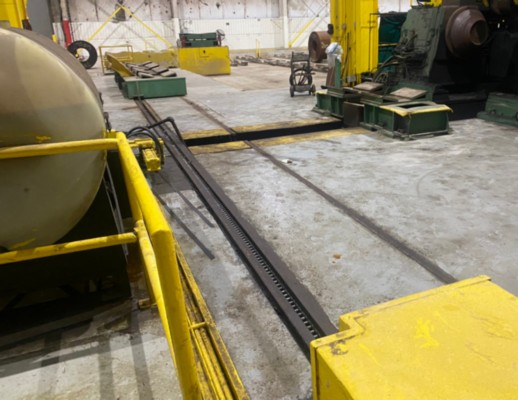

The transfer car moves coils from one bay to another
Structural steel frame supports coils on "V" shaped saddles
Car is positioned by hydraulic gearmotor driving a chain and sprocket
assembly.
Embedded rails are not included and must be supplied by customer.
