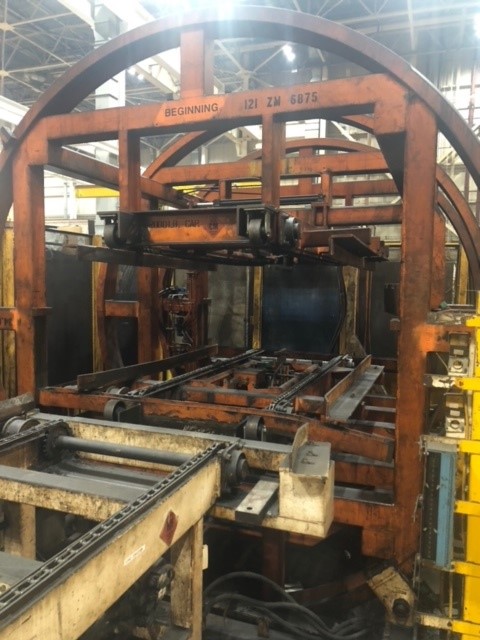

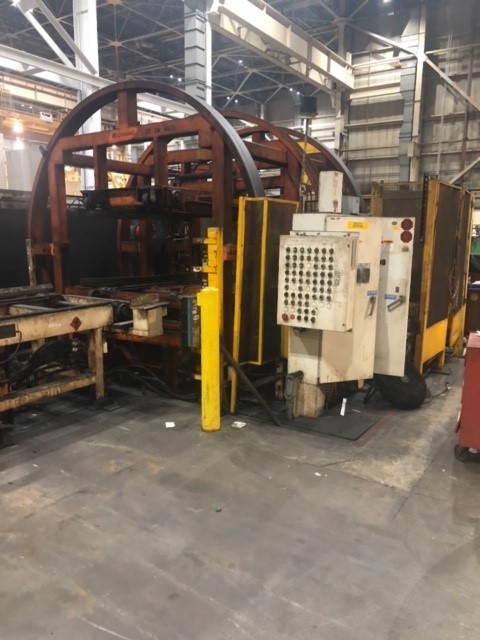

12,000LBS ATLAS BUNDLE TURNOVER

SPECIFICATIONS:
MFG: ATLAS, FENTON, MI
S/N: JOB NO. F663.00
YEAR: 1995

CAPACITY 12,000LBS

BUNDLE TURNOVER WITH 2 SETS OF CHAINS FOR IN/OUT FEED OF MATERIAL
GAP (DISTANCE BETWEEN CONVEYOR CHAIN WHEN FULL OPEN): 36"
WIDTH (OPENING LEFT TO RIGHT BETWEEN FRAMES): 89"
DEPTH: FROM FRAME TO FRAME IS 112.5", 94" OF FLAT CHAIN
PASS HEIGHT: 53" (TO BE CONFIRMED)
2 SETS OF ROWS OF CHAIN CONVEYOR
CLAMPING VIA (4) BALL SCREW JACKS WITH 20.5" OF CLOSURE

CHAIN CONVEYOR
RIGHT ANGLE TRANSFER CAPABILITY
2 SETS OF CHAIN CONVEYOR EACH DIRECTION
FEEDS MATERIAL INTO THE CAVITY

LIFT CONVEYOR
2 ROWS OF CHAIN CONVEYOR

SHIPPING: APPROX. 11' WIDE X 11'7" HIGH X 15' LONG
