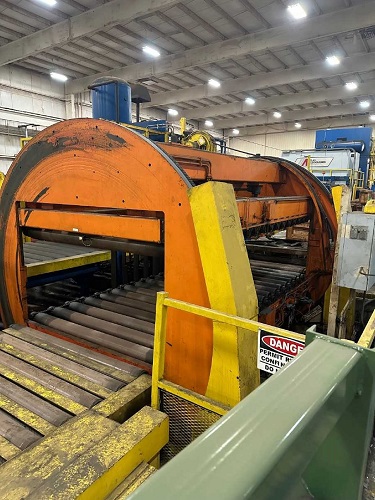

ATLAS 20,000LBS BUNDLE TURNOVER

84" BETWEEN FRAME AT END, 162" BETWEEN FRAME AT SIDE (ENDS OF FRAMES
ARE 6" AT EACH END, SO TECHNICALLY YOU COULD TURN OVER 174" WIDE MATERIAL

LOADING FROM THE END)
36.5" GAP BETWEEN UPPER & LOWER ROLLS WIDE OPEN
CLAMPING ACTUATED BY HYDRAULIC MOTOR/S DRIVING FOUR (4) BALL SCREW
JACKS
80" ROLL FACE, 6" DIA. CONVEYOR ROLLS ON 10" CENTERS
EDGE OF ROLL IS APPROX. 16" FROM THE BASE OF FRAME ON SIDE OPPOSITE OF
ELECTRICAL PANELS.
10" TO END OF ROLL SHAFT THROUGH PILLOW BLOCK BEARING
FLOOR TO TOP OF ROLLS IS 52.75"
TURNOVER FRAME IS APPROX. 16.5' IN LENGTH
15' LONG ENTRY CONVEYOR
15' LONG EXIT CONVEYOR

ELECTRICS- ALLEN BRADLEY: 2711-K5A8X PANELVIEW 550 TERMINAL & I/O'S

MUST CONFIRM BUT IT'S BELIEVED TO HAVE A STERLING SCALE BUILT INTO THE
CONVEYOR.

CAPABLE OF SIDE LOAD AS WELL AS THE DESIGNED END LOADING.

SHIPPING DIMENSIONS: 16.5'L X 13'?W X 139"H
