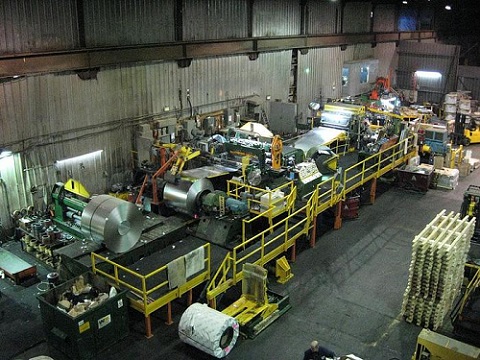

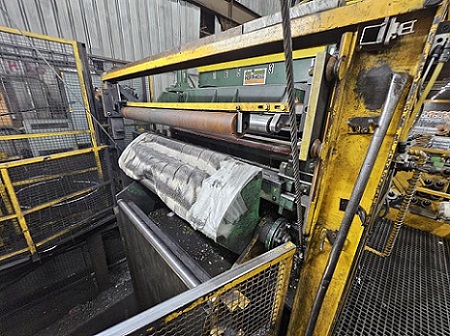

60" X .135" X 50,000 LBS. CINCINNATI/HERR-VOSS SLITTING LINE

GENERAL SPECIFICATIONS:
MANUFACTURER: CINCINNATI/HERR-VOSS
WIDTH: 60"
GAUGE RANGE: .011"-.135"
WEIGHT CAPACITY: 50,000 LB.
LINE DIRECTION: LEFT TO RIGHT
IMPROVEMENTS:
A HERR-VOSS STRAND EXTENSIONER WAS ADDED IN 2003
A SKY-LOOP IN 2010
THE ENTRY-TABLE & RECOILER WERE REPLACED IN 2015
LINE INCLUDES:
ENTRY COIL RAMP
CONE UNCOILER
SNUBBER ROLL
PEELER/PINCH/SIDE-GUIDE/CROP SHEAR UNIT

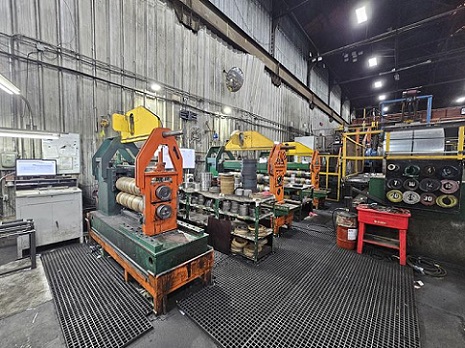

SLITTER HEAD - (3) HEADS
-(1) 48" WIDE X 6" DIAMETE ARBORS; (2) 60" WIDE X 6" DIAMETER ARBOR
-CRANE-REMOVE TYPE
-200 HP DC MOTOR
DUAL SCRAP WINDERS
-OSCILLATING EYE
-SELF DUMPING
CARRY-OVER TABLE
LOOPING PIT
-SKY LOOP SYSTEM ADDED IN 2010
PIT EXIT TABLE, STRAND-ENTRY
TENSION STAND
-PAD-TYPE

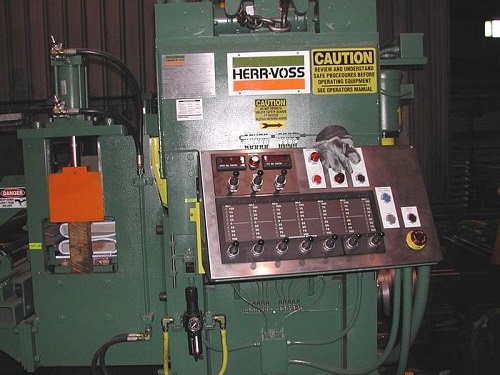

HERR-VOSS STAND EXTENSIONER
-VKSE 72/1.5-19/7 4HI LH
EXIT BRIDLE AND RECOILER FEED TABLE
RECOILER W/ ATTACHED SEPARATOR & PUSH-OFF

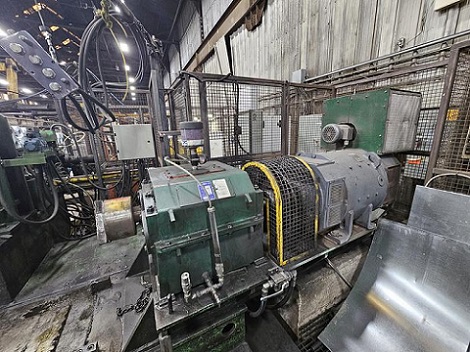

-200 HP GE DC MOTOR
-TWO-SPEED GEARBOX
