1800MM (71") X 0.2MM EXIT SPIDEM 4-HI ALUMINUM REVERSING COLD ROLLING MILL Our stock number: 116722

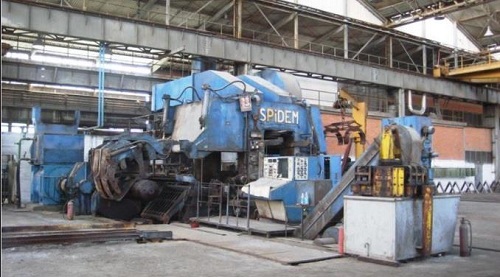

1800MM (71 ) X 0.2MM EXIT SPIDEM 4-HI ALUMINUM REVERSING COLD ROLLING MILL

1800MM (71") X 0.2MM EXIT SPIDEM 4-HI ALUMINUM REVERSING COLD ROLLING
MILL (REVAMPED 2022)

16.1" (410MM) X 38.5" (980MM) X 70.8" (1800MM)
MANUFACTURER: SPIDEM FRANCE 1971
REVAMPED BY SIMGE 2022 READY FOR INSTALL
THICKNESS MEASUREMENT SELTEK 2022
AGC AUTOMATION BY SIMGE IN 2022

TECHNICAL SPECIFICATIONS:
WIDTH: 750MM - 1800MM
ENTRY THICKNESS: 10MM
EXIT MAX/MIN THICKNESS: 0.2MM
LINE SPEED: 500 MPM MAX
MAX COIL WEIGHT: 11,000 KG
MILL DATA:
WORK ROLL FACE: 1800MM
WORK ROLLS DIAMETER: 410MM
BACK UP ROLLS DIAMETER: 980MM
2 X 1,100 KW MOTOR DRIVE
UNCOILER DATA:
COIL ID 600MM
COIL OD 1850MM
310 KW MOTOR DRIVE
RECOILER DATA
COIL ID: 600MM
COIL OD: 1850MM
1,100 KW MOTOR DRIVE
WORKING DIRECTION: RIGHT TO LEFT
AUTOMATIC AFC & GAUGE CONTROL
BENDING CYLINDER
SELTEK (NEW) X RAY THICKNESS MEASUREMENT
COMPLETE NEW CONTROLS, ELECTRIC & HYDRAULICS
ENTRY & EXIT COIL RACK
EDGE TRIMMER & CHOPPER
BELT WRAPPER
ROLLS SPARES
CO2 FIRE FIGHTING SYSTEM (MANUAL CONTROL)
FILTRATION SYSTEM
DISMANTLED
