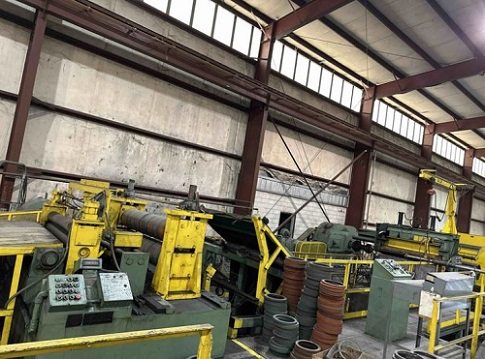

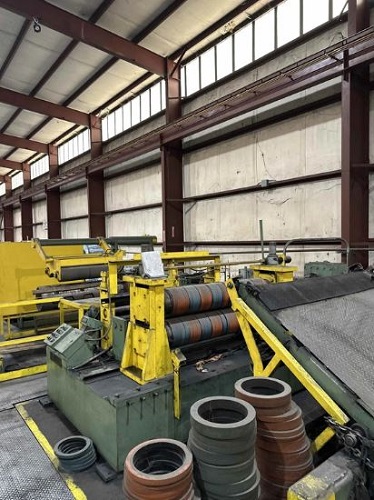

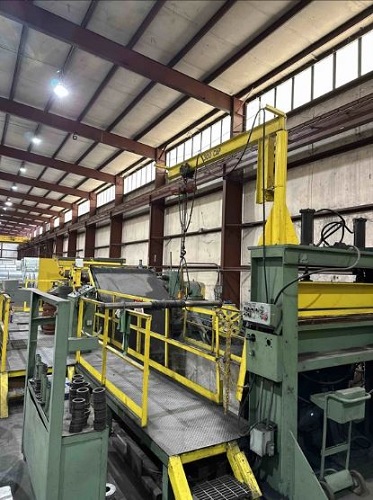

DELTA 60" X .187" X 40,000LBS LOOP SLITTING LINE

SPECIFICATIONS:

MAKE: DBI (DELTA)
MATERIAL WIDTH: 12" - 60"
MATERIAL THICKNESS: 020" - .187"
COIL ID: 20" / 24"
COIL OD: 72"
COIL WEIGHT: 40,000LBS
DIRECTION: LEFT TO RIGHT

ENTRY 2-ARM TURNSTILE
POWERED ROTATION

ENTRY L-TYPE COIL CAR
POWERED LIFT AND TRAVERSE
SELF CONTAINED HYDRAULICS

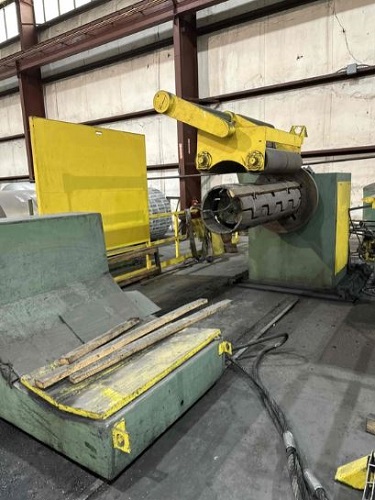

MANDREL UNCOILER
POWERED HOLD - DOWN HEAD
FOUR LEAF MANDEL DESIGN
WATER COOLED BRAKE
FEED MOTOR
SLIDING BASE DESIGN
HYDRAULIC PEELING TABLE

DRIVEN ENTRY PINCH ROLLS
ADJUSTABLE EDGE GUIDES

ONE (1) SLITTING HEAD
NONE REMOVABLE DESIGN
ADJUSTABLE ARBORS
150HP DC MOTOR DRIVE
LOTS OF KNIVES AND TOOLING
PIT ENTRY AND EXIT TABLES

TWO (2) SCRAP WINDERS
HYDRAULIC DRIVE
MANUAL OPEN / CLOSE

DRAG BOARD TENSION STAND
STRIP SEPARATING BAR WITH TOOLING
PNEUMATIC DRAG BOARDS

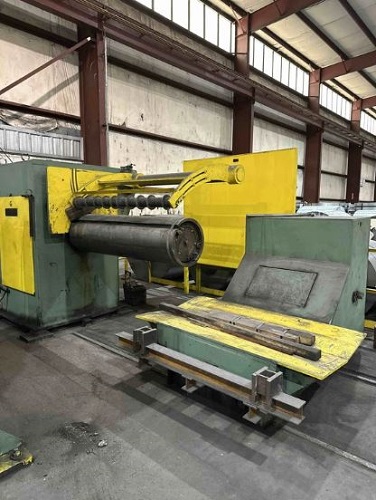

RECOILER
MANUAL GRIPPER
HYDRAULIC PUSH OFF
