60" X .135" X 20,000LB DAHLSTROM CTL LINE

SPECIFICATIONS:

MAX WIDTH60"
MAX THICKNESS0.135"
COIL WIDTH: 12" - 60"
MATERIAL THICKNESS: .015" - .135"
WEIGHT CAPACITY: 20,000LB
COIL ID: 20" - 24"
COIL OD: 72"
SPEED: 180 FEET PER MINUTE

ENTRY COIL CAR
FLOOR STANDING V-TYPE DESIGN
MECHANICAL LIFT AND TRAVERSE

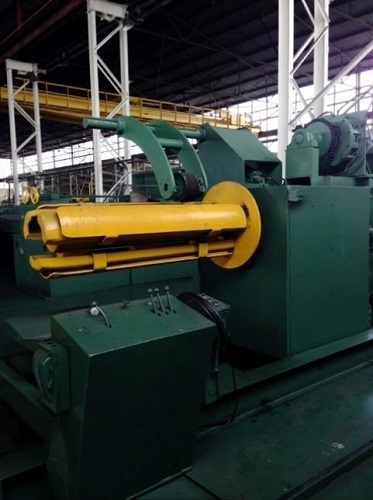

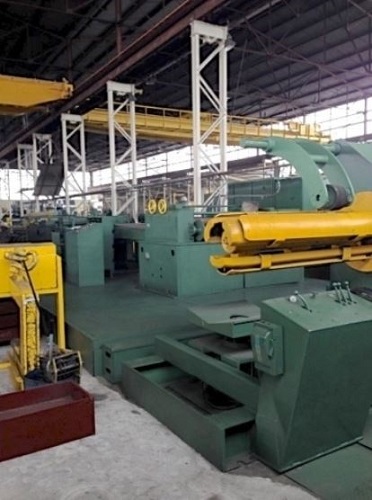

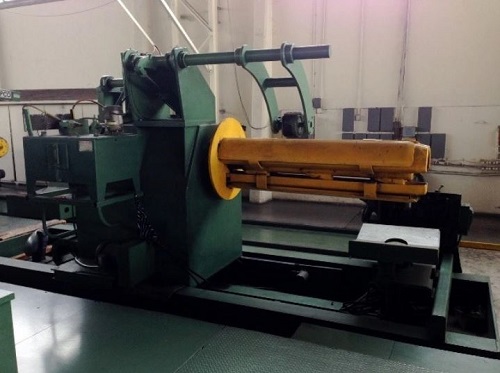

MANDREL UNCOILER
MAKE: AMERICAN STEEL
3-LEAF MANDREL DESIGN
POWERED MANDREL EXPANSION
MOTORIZED HOLD-DOWN ROLL
AC FEED-UP DRIVE

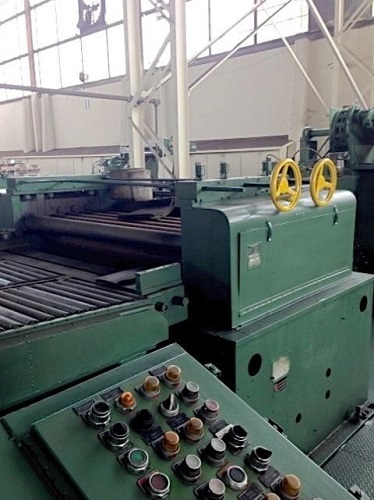

COIL STRAIGHTENER
NUMBER OF WORK ROLLS: 9
WORK ROLL DIAMETER: 4"
DRIVEN ENTRY PINCH ROLLS
MOTOR: 40HP DRIVE

ADJUSTABLE HUMP TABLE
POWERED CONVEYOR ROLLS

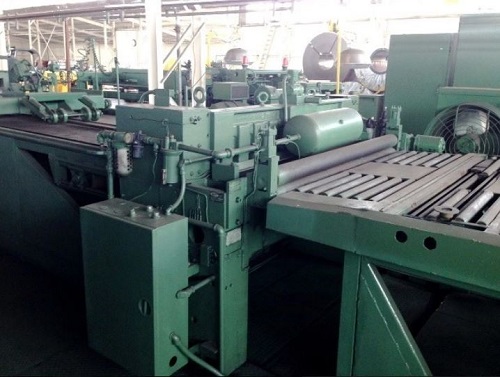

MECHANICAL SHEAR
MAKE: SECREST MACHINERY
MODEL: S40760
AIR CLUTCH & BRAKE
MOTOR: 10HP AC
POWERED BELT CONVEYOR

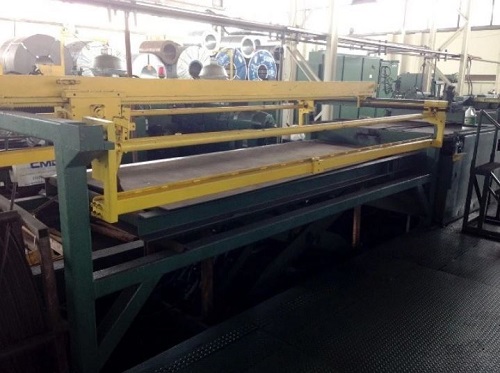

DROP TYPE STACKER
AIR GATES AND LANDING TABLE
TWO (2) SECTIONS OF GRAVITY ROLLS

COMPLETE CTL LINE WITH ELECTRICS HYDRAULICS, CONTROLS, PRESENTLY INSTALLED
