Click on picture below for larger version

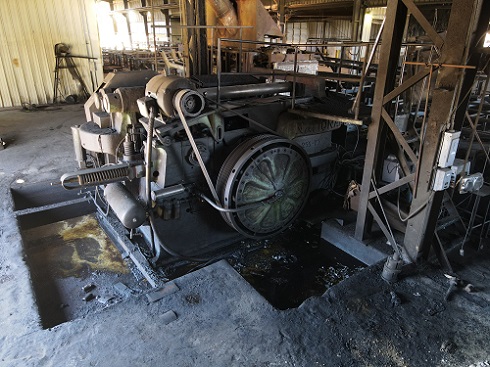

NATIONAL 4" UPSETTER
1978
S/N 25573
STROKES PER MINUTE: 35
MOTOR (R.P.M - 60 CYCLE) HORSEPOWER: 40
FLOOR SPACE ( FT . - IN . ): 10' 8" X 13' 0"
NET WEIGHT (POUNDS): 130,000
BOXED DIMENSIONS (CU. FT . ): 1,760
GRIP OPENING ( IN. ): 6
GATHER (IN.): 8
HOLD ( IN. ): 5
HEIGHT., OF DIE ( IN. ): 26
THICKNESS OF DIE (IN.): 8 - 1 /8
LENGTH OF DIE SPACE (IN.): 21 -1 /2
LENGTH OF STROKE ( IN. ): 15

*AS PER CATALOG SPECIFICATIONS
