Click on picture below for larger version

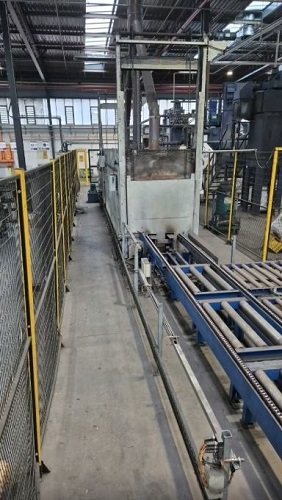

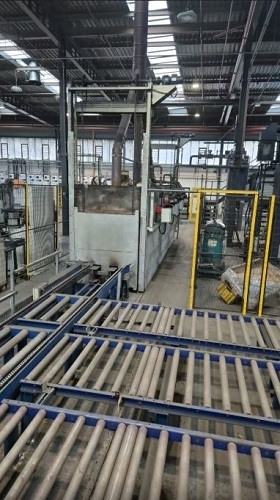

4-ZONE HEDINAIR NON-FERROUS HEAT TREAT ANNEALING OVEN & SMALL BATCH OVEN

MANUFACTURER - HEDINAIR
YEAR - 2013
NUMBER OF ZONES - 4
TYPE - FORCED CIRCULATION, ELECTRICALLY HEATED OVEN
DELIVERY MECHANISM - BOGIE CART
TEMPERATURE RANGE - 50-600 DEGREES CELSIUS
RATING - 320KW HEATING
WORKING DIMENSIONS - 952MM H X 1400MM W X 9900MM L
APPROXIMATE OVERALL DIMENSIONS - 2930MM H X 1960 W X 10,590MM L
APPROXIMATE OVEN WEIGHT - 6,320 KG
APPROXIMATE BOGIE CART WEIGHT -1,735 KG

HEDINAIR HEAT TREAT ANNEALING OVEN
MANUFACTURER - HEDINAIR
YEAR - 2013
MODEL - VFO
TYPE - FORCED CIRCULATION, ELECTRICALLY HEATED OVEN
TEMPERATURE RANGE - 50-600 DEGREES CELSIUS
RATING - 50KW HEATING
WORKING DIMENSIONS - 2000MM H X 1000MM W X 1000MM L
APPROXIMATE OVERALL DIMENSIONS - 2850MM H X 1860 W X 1500MM L
APPROXIMATE WEIGHT - 1860 KG
