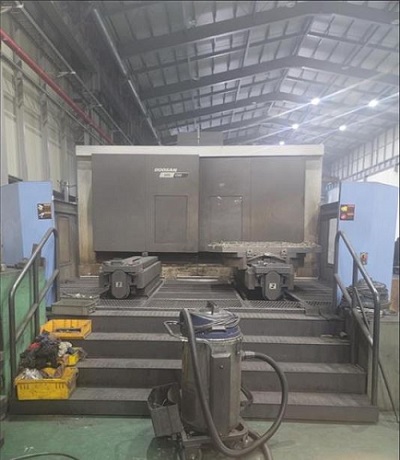

DOOSAN HM-1250 CNC HORIZONTAL MACHINING CENTER

FEATURES:
FANUC 31IM MODEL-B CNC CONTROL
90-POSITION AUTOMATIC TOOL CHANGER
2-APC AUTOMATIC PALLET CHANGER
THRU SPINDLE COOLANT

SPECIFICATIONS:
X-AXIS TRAVEL 82.7"
Y-AXIS TRAVEL 59.1"
Z-AXIS TRAVEL 59.1"

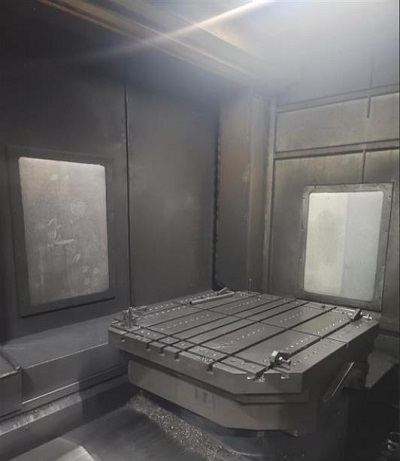

PALLET DIMENSIONS 49.2" X 49.2"
PALLET INDEXING 1 DEGREE
LOADING CAPACITY 13,200 LBS
TABLE TOP TO SPINDLE NOSE 1.96"-61.02"
SPINDLE SPEEDS TO 6000 RPM
SPINDLE TAPER #50
SPINDLE MOTOR 35 HP
TOOL CAPACITY 90 ATC
RAPID TRAVERSE RATE (X/Y/Z) 944.88 IPM
CUTTING FEED RATE 472.44 IPM
APPROXIMATE MACHINE DIMENSIONS 415" X 230"
APPROXIMATE MACHINE HEIGHT 163"
APPROXIMATE MACHINE WEIGHT 68,500 LBS.

EQUIPPED WITH:
FANUC 31IM MODEL-B CNC CONTROL
90-STATION AUTOMATIC TOOL CHANGER
2-STATION AUTOMATIC PALLET CHANGER
PRESSURE THRU SPINDLE COOLANT
FULL CHIP AND SPLASH ENCLOSURE

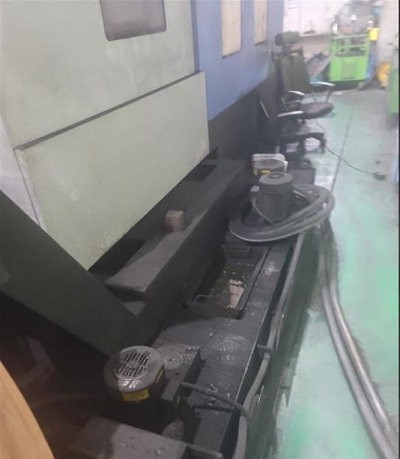

CHIP CONVEYOR

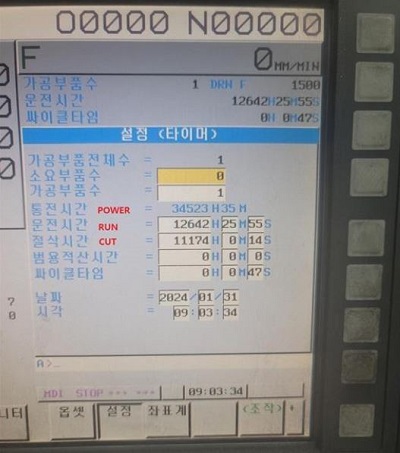

HOURS:
POWER ON: 12,642
CUTTING HOURS: 11,174
