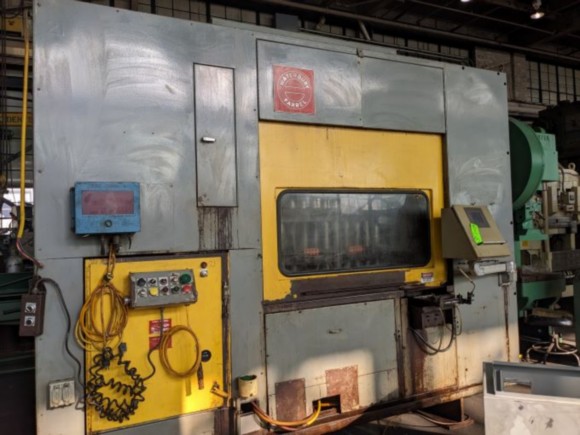

WATERBURY FARREL #2012 EYELET PRESS
Our stock number:
116177
Click on picture below for larger version
MANUFACTURER - WATERBURY FARREL
MODEL -2012
TPYE - EYELET TRANSFER PRESS

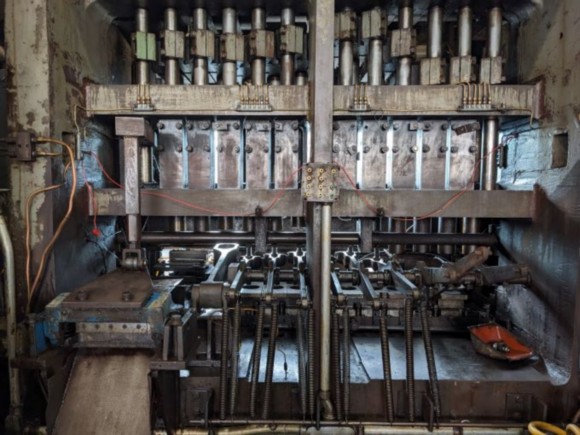

NUMBER OF PLUNGERS - 12 + 1
TYPE OF PLUNGERS - ROUND
RATED CAPACITY PER PLUNGER - 9 TON
MOTOR HP - 20
MAX DIAMETER OF BLANK USING SINGLE ROW BLANKING - 3.75" (95.3MM)
TWO ROW BLANKING WITH STAGER FEED -
USING SECOND STATION - 2.00" (50.8MM)
USING IDLE STATION - 3.75" (95.3MM)
MAX DEPTH OF DRAWN SHELL - 3.125" (79.4MM)
PIECES PER MINUTE - 35-70
TOOL CENTER DISTANCE - 4" (101.6MM)
SHUTHEIGHT - 6" (152.6MM)
FLOOR SPACE - 140" X 62" X 127" (3.56M X 1.57M X 3.23M)
APPROXIMATE WEIGHT - 30,500 LBS (13,725 KG)

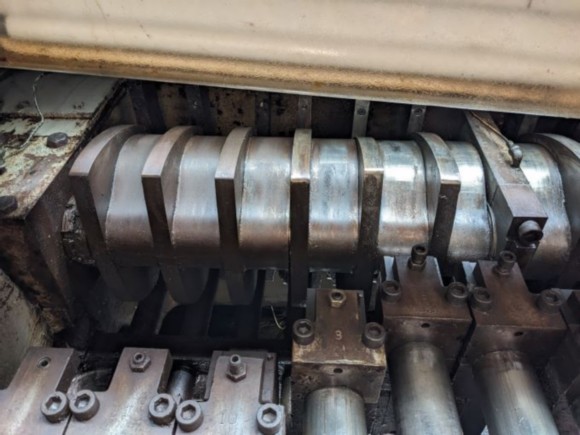

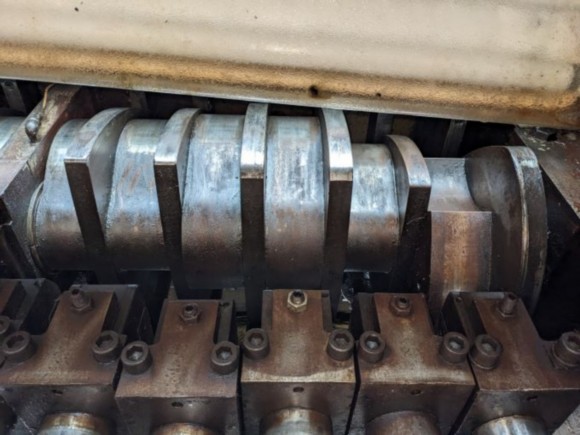

STANDARD CAM STROKES
CAM #1 - 2 _"
CAM #2 - 4.5"
CAMS #3-#4 - 5 3/8"
CAMS #5-#12 - 6.5"
INCLUDES
FEED ROLLS
PRESS CONTROLS
STRIPPER ARMS
TRANSFER DRIVE CAM
BLANK HOLDER
*Priced in "AS IS" condition, on location Connecticut, USA.
*Inspection report and rebuilt quote available
