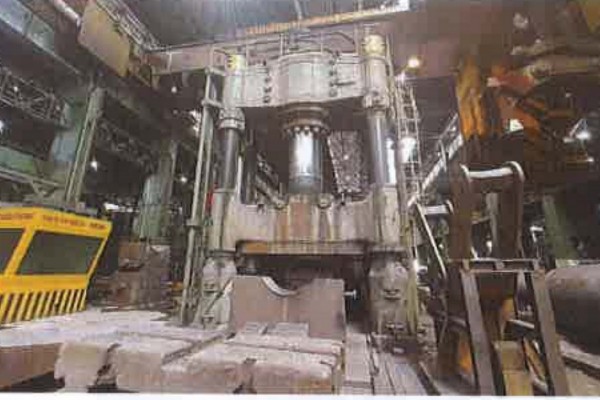

5500 TON INNSE 4 POST HYDRAULIC PRESS
Our stock number:
115522
Click on picture below for larger version
4 POST, SINGLE CYLINDER DESIGN
MAXIMUM PRESSURE......................5500 TON METRIC
DISTANCE BETWEEN POSTS (L-R X F-B)............4520 X 2000 mm
RAM DIMENSIONS (L-R XF-B).................3280 X 760 mm
STROKE...............................2500 mm
DAYLIGHT (MAX - MIN)......................4120 mm - 1920 mm
ORIGINAL YEAR OF MFG......................1961
YEAR OF REVAMP BY INNSE....................2005
POWER...............................TBD
WITH:

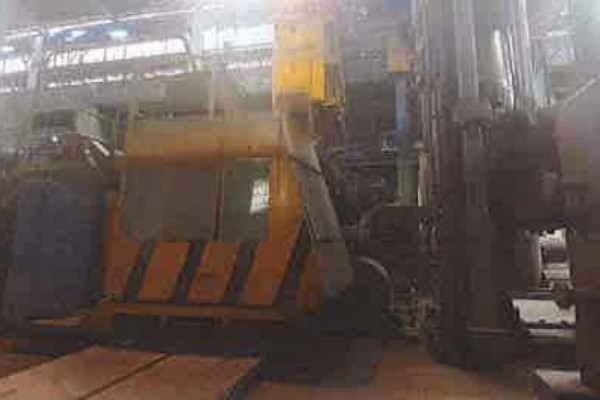

HYDRAULIK DUISBURG FORGE MANIPULATOR
CAPACITY..............................40 Ton (Metric)
DIAMETER CAPACITY WITH REDUCER...............250 mm
DIAMETER CAPACITY WITHOUT REDUCER............1300 - 620 mm
MANIPULATOR MOVEMENT APPROACING PRESS........7000 mm
MANIPULATOR HEIGHT OF REACH................2000 - 1200 mm.
HYDRAULIC OPERATION
ORIGINAL YEAR OF MFG....................1956
YEAR OF REVAMP .......................2005
