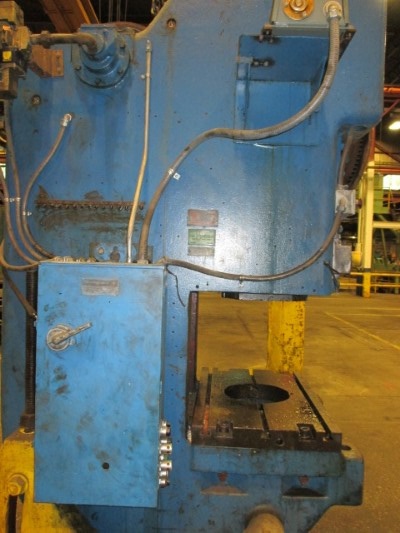

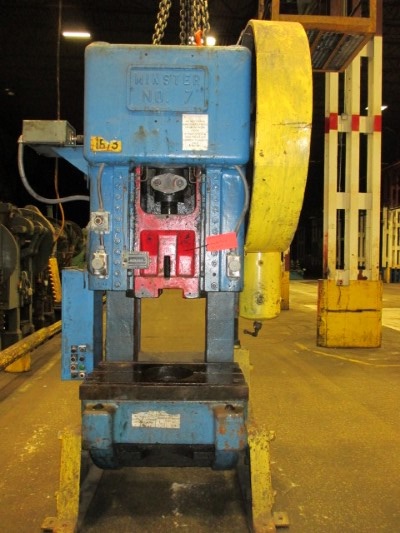

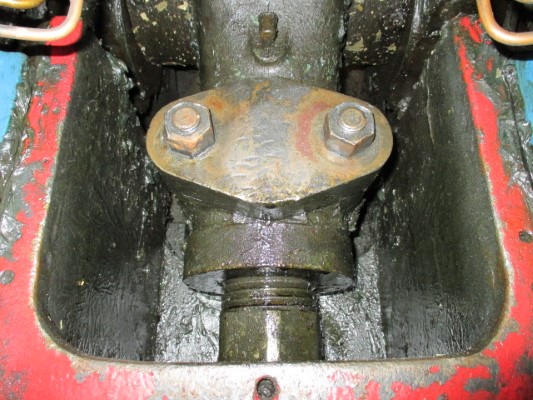

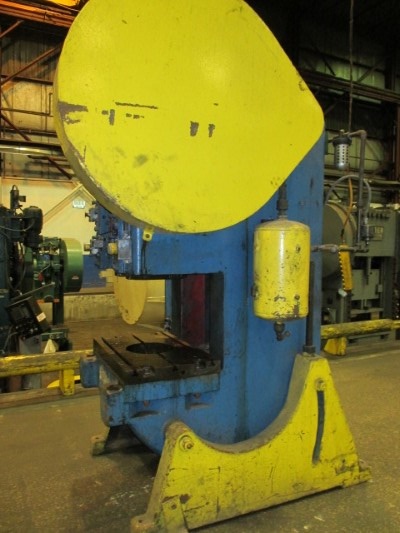

71 TON MINSTER MODEL #7 OBI SINGLE CRANK PRESS
Our stock number:
108936
Click on picture below for larger version
CAPACITY ......................... 71 TON
STROKE ........................... 8"
SLIDE ADJUSTMENT ................. 3-1/4"
SHUT HEIGHT ...................... 18"
THROAT ........................... 12"
BED AREA ..... (L-R x F-B) ....... 34-1/2" x 22"
RAM AREA ..... (L-R x F-B) ....... 18" x 14-9/16"
BOLSTER ...... (L-R x F-B) ....... 35-5/8" x 22" x 3"
BED OPENING ...................... 12" DIA.
WIDTH BETWEEN UPRIGHTS ........... 19"
TYPE CLUTCH ...................... AIR
TYPE FRAME ....................... OBI ARRANGED FOR TIE ROD
GEARING .......................... S.B.G.
DRIVE ............................ D.V.M.D.
O.A. DIMENSIONS ..(LR X FB X HI).. 60" X 72" X 113"
EQUIPPED WITH: PALM BUTTON CONTROLS
MULTI GREASE FIT LUBE
AIR BRAKE

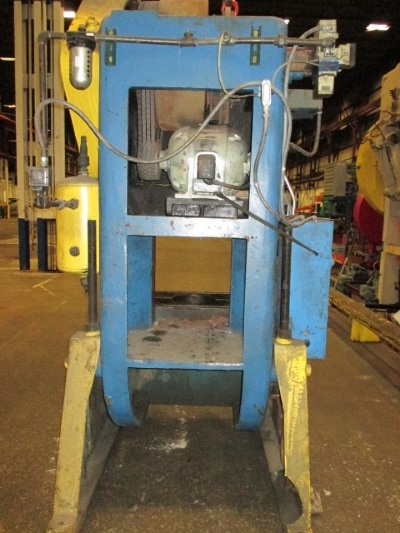

MOTOR DRIVE: 5 HP, 220/440V, 3/60/1175 RPM
WITH CONTROLS
