1200 TON MINSTER E2-1200 ECCENTRIC SHAFT STRAIGHT-SIDE TRANSFER PRESS
Our stock number:
115621
Click on picture below for larger version
1200 TON MINSTER E2-1200 ECCENTRIC SHAFT STRAIGHT-SIDE TRANSFER PRESS
MODEL E2-1200-120 X 60
BRAND MINSTER
CONDITION USED
YEAR 2011
SERIAL # E2-1200-30799
SPECIFICATIONS
PRELIMINARY SPECIFICATIONS

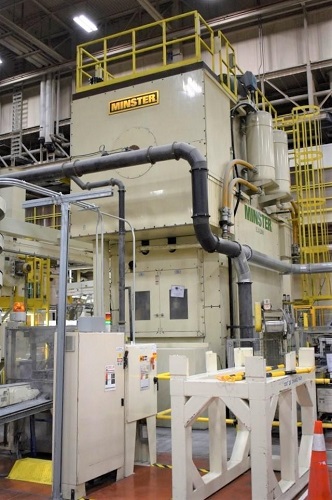

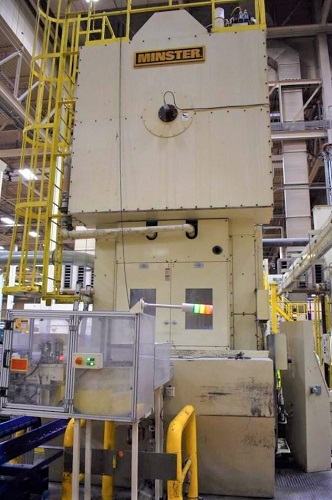

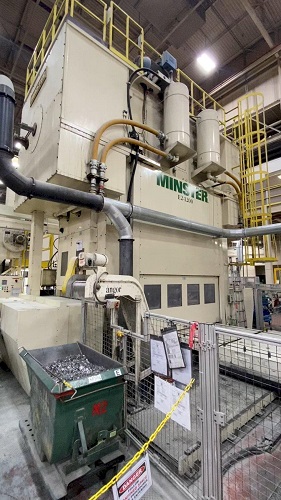

MINSTER 2 POINT ECCENTRIC SHAFT STRAIGHT-SIDE TRANSFER PRESS
MODEL: E2-1200-120 X 60
MFG YEAR: 2011
1200 TON CAPACITY
12" STROKE (305 MM)
44" SHUT HEIGHT (SDAU) (1118 MM)
12" SLIDE ADJUSTMENT (305 MM)
120" LR X 60" FB BED AREA (3048 MM X 1524 MM)
25-45 SPM VARIABLE
EQUIPMENT & FEATURES:
10.8" BOLSTER PLATE(275MM)

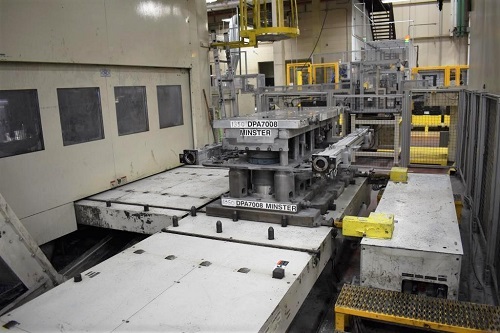

WAYNE TRAILS MODEL WTTS-II SERVO TRANSFER
AIR CLUTCH & BRAKE
HYDRAULIC OVERLOAD PROTECTION
63"(1600MM) WIDE WINDOWS
AUTOMATIC COUNTER BALANCE ADJUSTMENT
PNUEMATIC BED KNOCKOUT SYSTEM
SLIDE KNOCK OUT CYLINDERS
30 TON DAYTON PNUEMATIC DRAW CUSHION
ADJUSTABLE DIE SAFETY BLOCKS

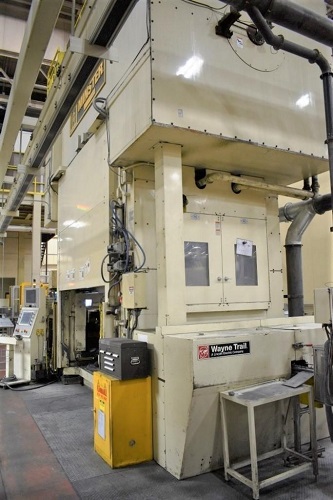

WAYNE TRAILS TRANSFER FEED
(4) VIBRO-DYNAMICS ISOLATOR MOUNTS
PRESS IS PIT MOUNTED.
200 H.P. 1800 RPM MAIN DRIVE MOTOR. 480/3/60
OVERALL ESTIMATED WEIGHT , CROWN #145,000 LBS,BED #142,000 LBS, SLIDE # 92,200
LBS, UPRIGHTS,#86,000, = TOTAL 455,000 LBS
