BLOW 250 TON STRAIGHT SIDE TWIN END BACKSHAFT DRIVEN MECHANICAL PRESS
Our stock number:
116766
Click on picture below for larger version

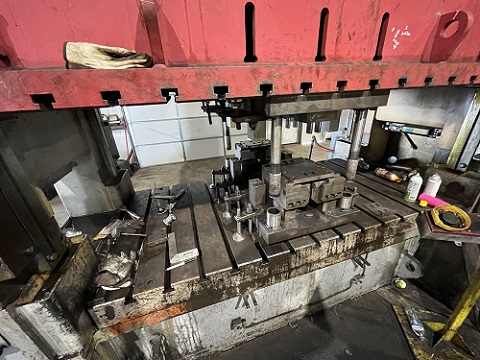

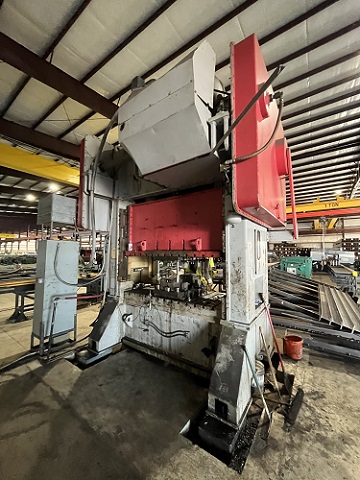

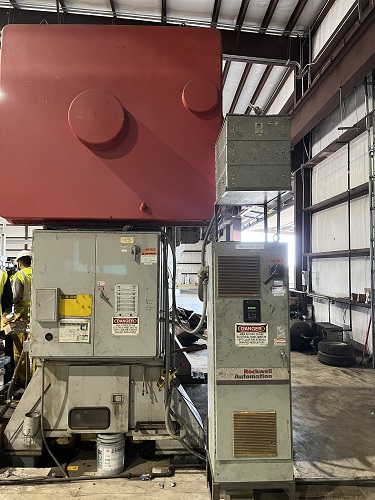

BLOW 250 TON STRAIGHT SIDE TWIN END BACKSHAFT DRIVEN MECHANICAL PRESS
SPECIFICATIONS:
CAPACITY.... .................250 US TONS @ 1/2 " OFF BOTTOM
MODEL NUMBER....... SC2-250-84-60
SERIAL NUMBER...... SDG-250-407-97
YEAR OF MANUFACTURE..... 1997
BED AREA...................................... 84" X 60"
SLIDE AREA......... 84" X 60"
STROKE..................................8"
ADJUSTMENT................................10"
SHUT HEIGHT.................................22" OVER BOLSTER SDAU
STROKES PER MINUTE.................20-50
WINDOWS....... 38" WIDE X 30" HIGH
FOOTPRINT DIMENSIONS... 116" LR X 85" FB
OVERALL HEIGHT...... 15'5" FLOOR TO TOP OF COUNTERBALANCES
OVERALL WEIGHT..... 92,000 #
FLOOR TO TOP OF BOLSTER.. 43"
EQUIPPED WITH:
AIR CLUTCH AND BRAKE ASSEMBLY
AIR COUNTERBALANCES
T-SLOTTED RAM AND BOLSTER
RECIRCULATING LUBRICATION SYSTEM
FREE STANDING PRESS CONTROL
LINK ELECTRICAL CONTROLS-OMNILINK 5000 PRESS CONTROL
BALDOR VARIABLE SPEED DRIVE
PALM BUTTONS
1 SET OF BLACK MAX LINK LIGHT CURTAINS
DUAL ROSS AIR VALVE
SET OF VIBRATION ISOLATION LEVELERS
8 POINT GIBBING
SINGLE/INCH/CONTINUOUS
MOTORS AND CONTROLS
POWER: 440 V/3 PHASE/60HZ
