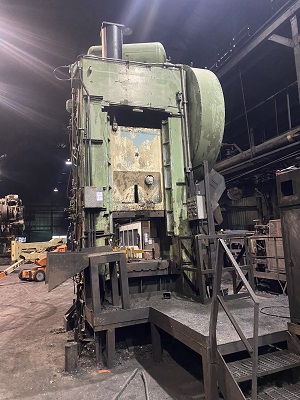

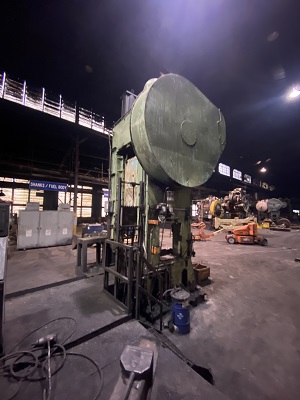

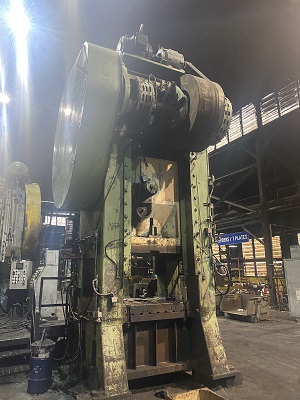

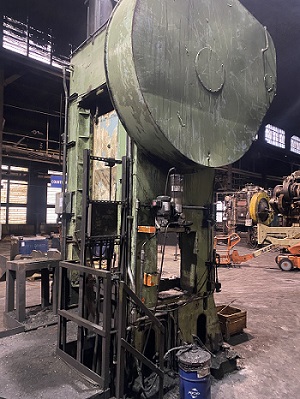

600 Ton, ERIE #S1-600-42x48, STRAIGHT SIDE SINGLE CRANK PRESS   Our stock number: 114961

600 Ton, ERIE #S1-600-42x48, STRAIGHT SIDE SINGLE CRANK PRESS

Click on picture below for larger version
600 Ton, ERIE #S1-600-42x48, STRAIGHT SIDE SINGLE CRANK PRESS600 Ton, ERIE #S1-600-42x48, STRAIGHT SIDE SINGLE CRANK PRESS600 Ton, ERIE #S1-600-42x48, STRAIGHT SIDE SINGLE CRANK PRESS600 Ton, ERIE #S1-600-42x48, STRAIGHT SIDE SINGLE CRANK PRESS
600 Ton, ERIE #S1-600-42x48, STRAIGHT SIDE SINGLE CRANK PRESS600 Ton, ERIE #S1-600-42x48, STRAIGHT SIDE SINGLE CRANK PRESS600 Ton, ERIE #S1-600-42x48, STRAIGHT SIDE SINGLE CRANK PRESS

SERIAL ......... 1434
MODEL .......... S1-600-42-48
CAPACITY ....... 600 TONS
STROKE ......... 14"
SHUT HEIGHT .... 36"
ADJUSTMENT ..... 12"
SPEED .......... 15 TO 30 SPM
RAM SIZE ....... 48" LR X 42" FB
BED SIZE ....... 52" LR X 48" FB
BOLSTER ........ 7.5" THICK, T SLOTTED
BED OPENING .... 28" X 28" FOR CUSHION
WINDOWS ........ 30"
CONTROLS ....... PALM BUTTONS
AIR CLUTCH
AIR COUNTERBALANCE
SINGLE KNOCK OUT
BRAKE MONITOR
RAM ADJUSTMENT .. 5 HP
MAIN MOTOR ...... 60 HP


OVERALL DIMENSIONS: 116" LR x 131" FB x 228-3/4"
WEIGHT: 125,000#
