170/110 Ton BLISS MODEL# B-4A DOUBLE ACTION TOGGLE PRESS
Our stock number:
112008

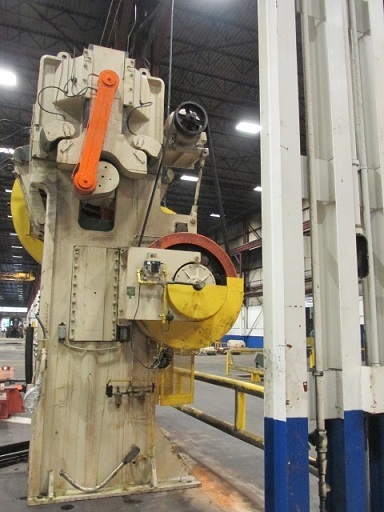

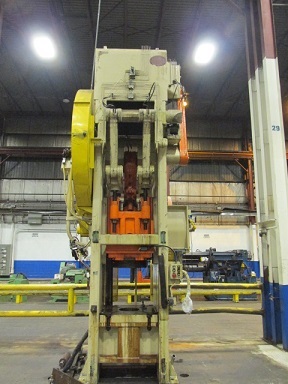

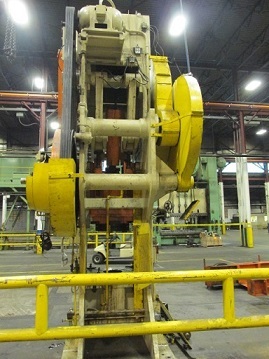

Click on picture below for larger version
PLUNGER TONNAGE ......................... 170 TONS
BLANKHOLDER TONNAGE ..................... 115 TONS
BED AREA .........(LR X FB).............. 32" x 34"
WIDTH BETWEEN UPRIGHTS,.................. 32"
OPENING IN BED, BLANKHOLDER ............. 19"
STROKE .................................. 15"
ADJUSTMENT .............................. 6"
RAM AREEA ........(LR X FB)...............27" X 24"
SIDE FRAME OPENING ...................... 19"
PUNCH SLIDE ............................. 24-+" STROKE
ADJUSTMENT .............................. 6"
STROKES PER MINUTE ...................... 9
WEIGHT .................................. 63,200 LBS
EQUIPPED WITH: AIR CLUTCH
FLOOR STANDING
MOUNTED CONTROLS
ELECTRICAL PANEL
20 HP G.E. 220/440 VOLT MOTOR
