120/80 TON BLISS Model# 3-1/2 B SC TOGGLE PRESS   Our stock number: 114466

120/80 TON BLISS Model# 3-1/2 B SC TOGGLE PRESS

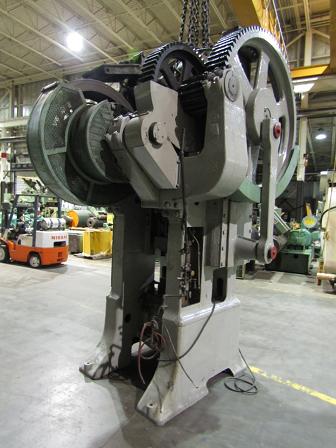

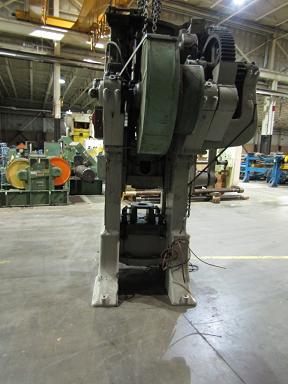

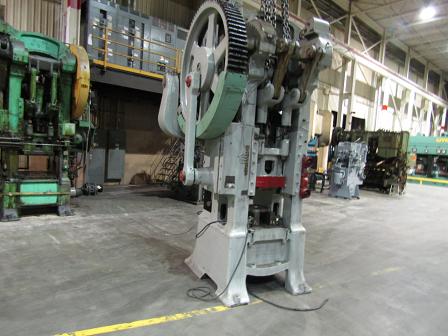

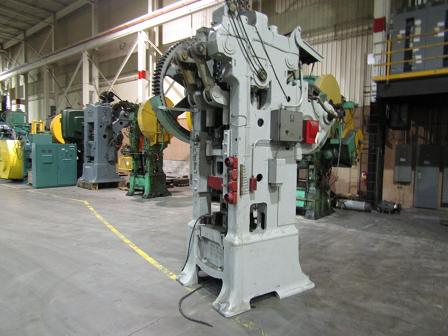

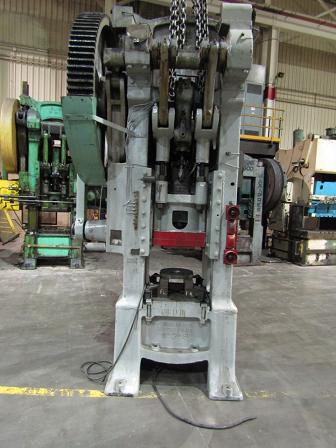

Click on picture below for larger version
120/80 TON BLISS Model# 3-1/2 B SC TOGGLE PRESS120/80 TON BLISS Model# 3-1/2 B SC TOGGLE PRESS120/80 TON BLISS Model# 3-1/2 B SC TOGGLE PRESS
120/80 TON BLISS Model# 3-1/2 B SC TOGGLE PRESS120/80 TON BLISS Model# 3-1/2 B SC TOGGLE PRESS

STROKE OF PLUNGER ......................... 15-1/2"
STROKE OF BLANKHOLDER ..................... 10
SHUTHEIGHT OF PLUNGER ..................... 28"
SHUTHEIGHT OF BLANKHOLDER ................. 26"
BED AREA ............(LR X FB)............. 25" X 28"
RAM AREA ............(LR X FB)............. 20" X 20"
BOLSTER AREA ........(LR X FB)............. 25" X 36 X 2-3/4"
SIDE FRAME OPENING ..(FB X HIGH)........... 10-3/4" X 15"
WIDTH BET. UPRIGHTS ....................... 26"
O.A. DIMENSIONS .....(LR X FB X HIGH)...... 6'8" X 8'6" X 12.7'

EQUIPPED WITH:

AIR CLUTCH
ROD DESIGN
DOUBLE BACK GEARED
FLYWHEEL 'V' BELT
15 HP 3 PHASE 60 CYCLE MOTOR
