150/110 TON BLISS MODEL #3-3/4-B DOUBLE ACTION TOGGLE PRESS
Our stock number:
116299
Click on picture below for larger version

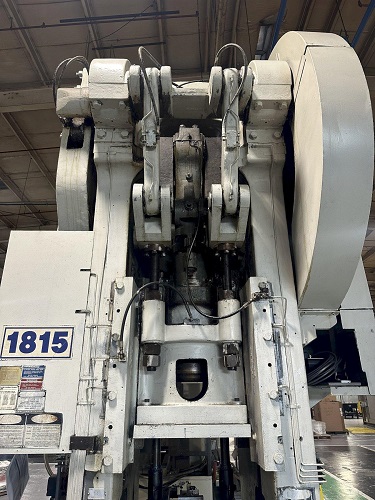

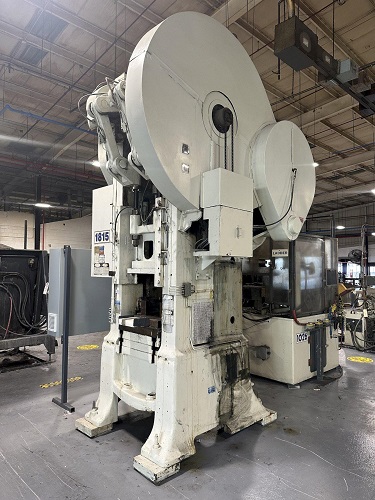

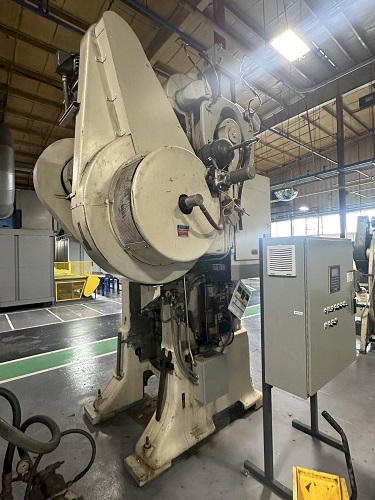

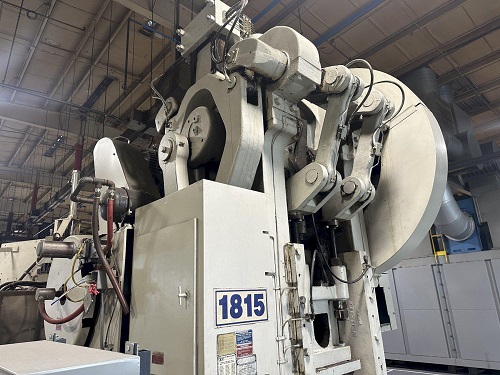

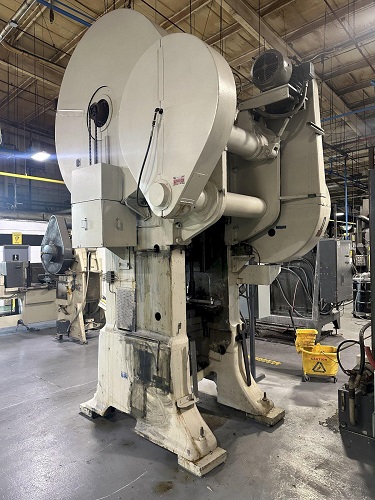

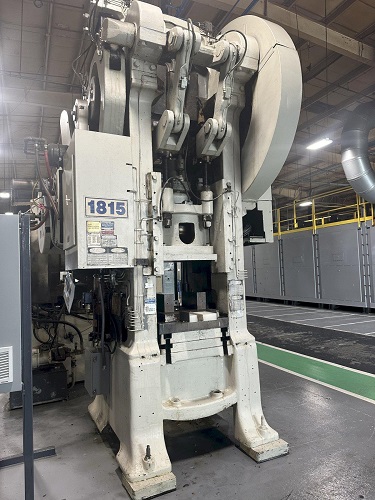

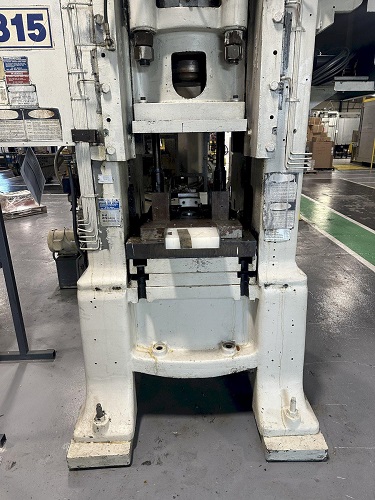

150/110 TON BLISS (NEW 1981) MODEL #3-3/4-B DOUBLE ACTION TOGGLE PRESS
SERIAL ...................... HP52840
MODEL ....................... 3-3/4 B
YEAR ........................ 1981
SLIDE PLUNGER CAPACITY ...... 150 TON
BLANKHOLDER CAPACITY ........ 110 TON

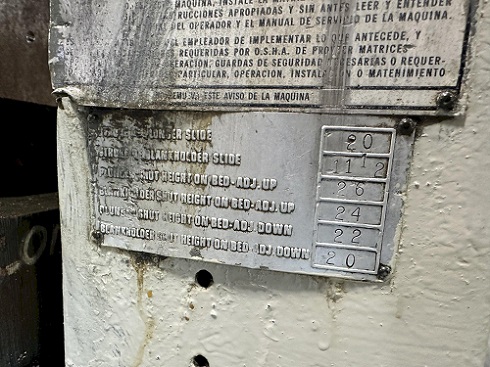

SLIDE PLUNGER STROKE ........ 20"
SLIDE PLUNGER SHUT HEIGHT ... 22 to 26"
BLANKHOLDER STROKE .......... 11-1/2"
BLANKHOLDER SHUT HEIGHT ..... 20" to 24"
ADJUSTMENTS ................. 4"
SLIDE PLUNGER AREA .......... " L-R X " F-B
BLANKHOLDER AREA ............ " L-R X " F-B
BED AREA .................... " L-R X " F-B
WIDTH BETWEEN UPRIGHTS ...... "
STROKES PER MINUTE ..........
RUN MODES ................... INCH, SINGLE, CONT
PROGRAMMABLE RUN MODE ....... YES
UPDATED CONTROLS ............ ROCKFORD SSC-1550
RUN MODES ................... PROGRAM, SINGLE & CONTINUOUS
FORWARD & REVERSE ........... YES
HAND & FOOT TRIP ............ YES
LIGHT CURTAINS .............. YES
KNOCKOUT EJECTOR ............ YES
AIR CLUTCH .................. YES
LUBE SYSTEM ................. YES
E-STOP BUTTON ............... YES
FLOOR STANDING .............. YES
MOTOR ....................... 15 HP
