170/115 TON BLISS MODEL #4 DOUBLE ACTION TOGGLE PRESS
Our stock number:
116305

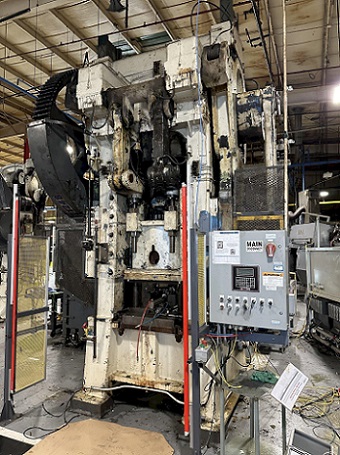

Click on picture below for larger version

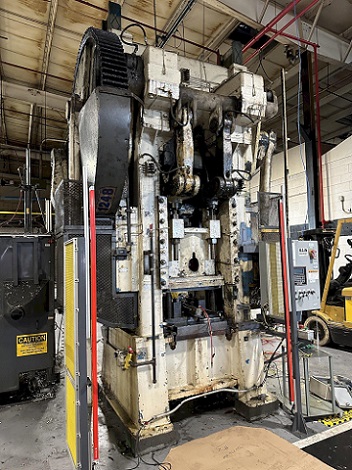

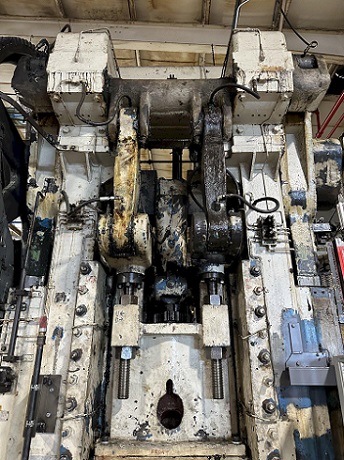

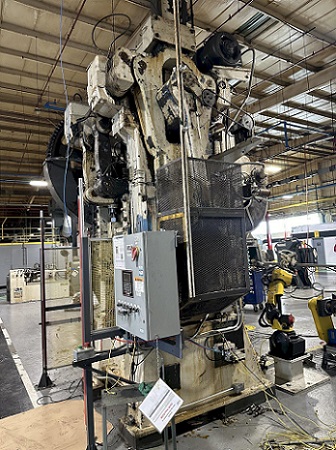

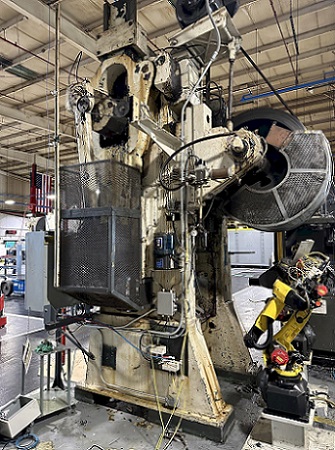

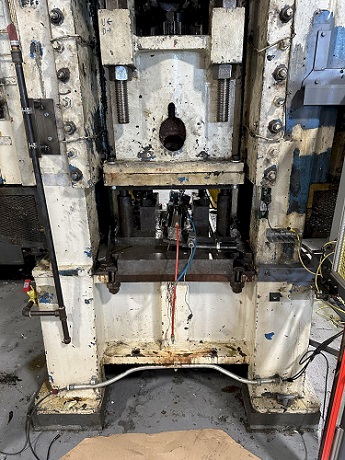

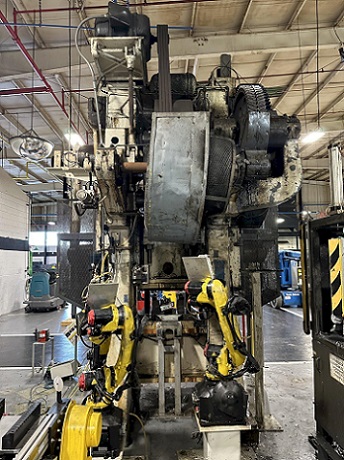

170/115 TON BLISS MODEL #4 DOUBLE ACTION TOGGLE PRESS

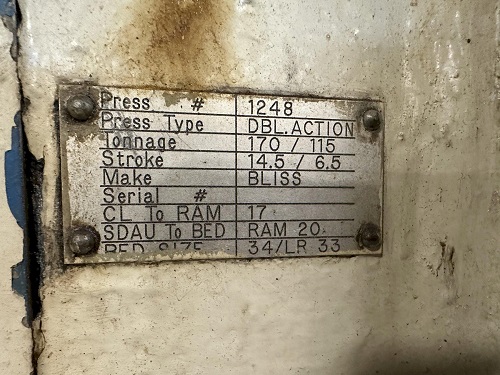

SERIAL ...................... 1248
MODEL ....................... 4 B
YEAR ........................
SLIDE PLUNGER CAPACITY ...... 170 TON
BLANKHOLDER CAPACITY ........ 115 TON
SLIDE PLUNGER STROKE ........ 14.5"
BLANKHOLDER STROKE .......... 6.5"
SLIDE PLUNGER SHUT HEIGHT ... 20"
BLANKHOLDER SHUT HEIGHT ..... 17"
ADJUSTMENTS ................. 6"
SLIDE PLUNGER AREA .......... " L-R X " F-B
BLANKHOLDER AREA ............ " L-R X " F-B

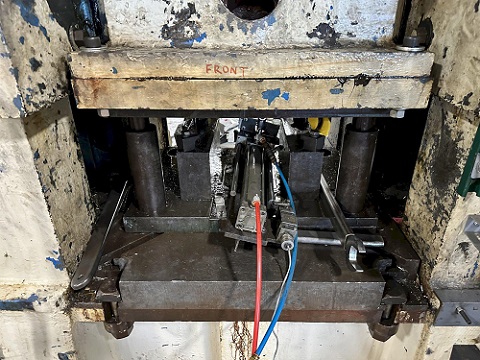

BED AREA .................... 34" L-R X 33" F-B
WIDTH BETWEEN UPRIGHTS ...... "
STROKES PER MINUTE ..........
RUN MODES ................... INCH, SINGLE, CONT
PROGRAMMABLE RUN MODE ....... YES
CONTROLS .................... ROCKFORD SSC-1550
HAND & FOOT TRIP ............ YES
LIGHT CURTAINS .............. YES
KNOCKOUT .................... YES
AIR CLUTCH .................. YES
AIR BRAKE ................... YES
LUBE SYSTEM ................. YES
STROKE COUNTER .............. YES
E-STOP BUTTON ............... YES
FLOOR STANDING .............. YES
MOTOR ....................... 15 HP
