72" x .500" BUTECH HIGH-SPEED HYDRAULIC SHEAR WITH SELF-CONTAINED PUMP
Our stock number:
116217

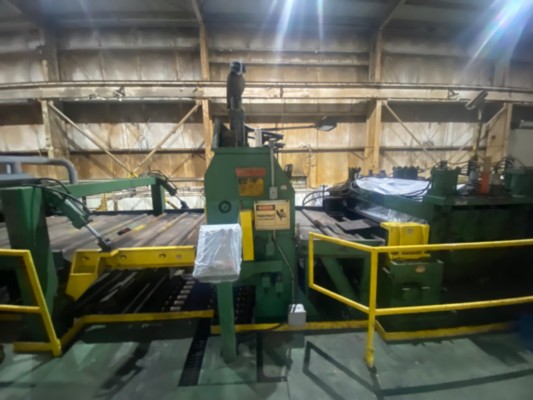

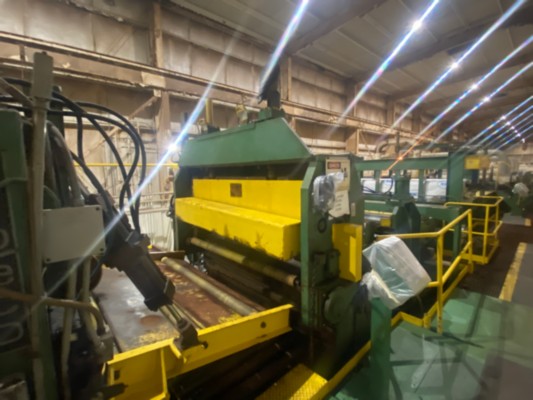

Click on picture below for larger version
Manufacturer: Butech
Line Direction: Right to Left
Materials: Cold Rolled & Hot Rolled Steel (Pickled or Black)
Coil Width: 72" (1829 mm) Max.
Strip Thickness: .500" (12.70 mm) Max., .054" (1.37 mm) Min.
Shear Blade Configuration: Single Rake Design
The high-speed hydraulic shear can be utilized as a cut-to-length line main
shear or as a crop shear
Single rake upper ram is positioned by hydraulic cylinders and is equalized by
rack and pinion
"Auto Gap Control" mechanism automatically sets knife clearance each time a
cut is made
Hydraulic power is supplied to the shear by a dedicated, self-contained
pumping unit
