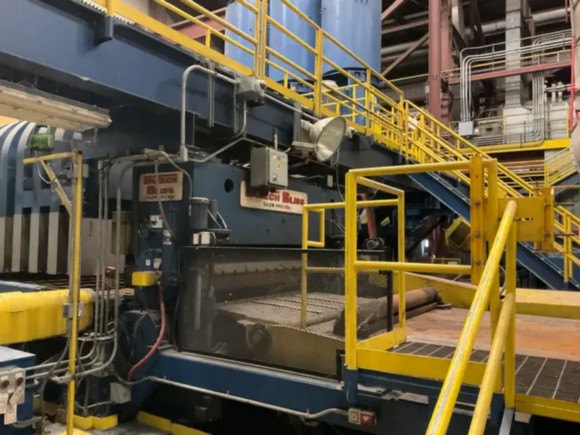

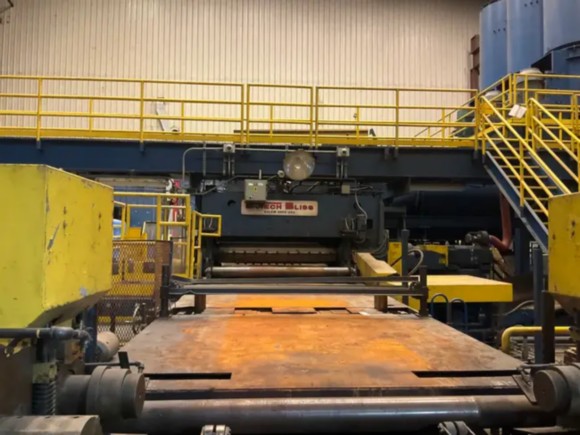

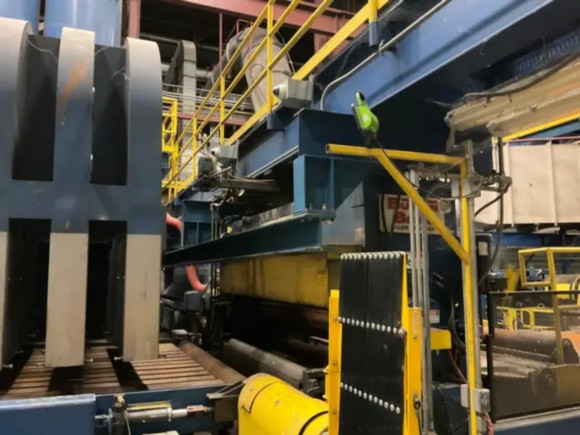

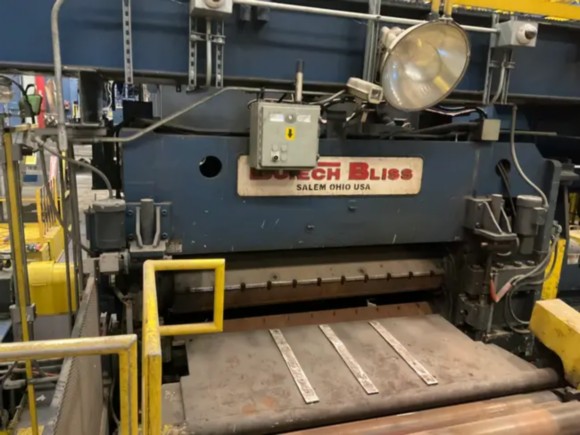

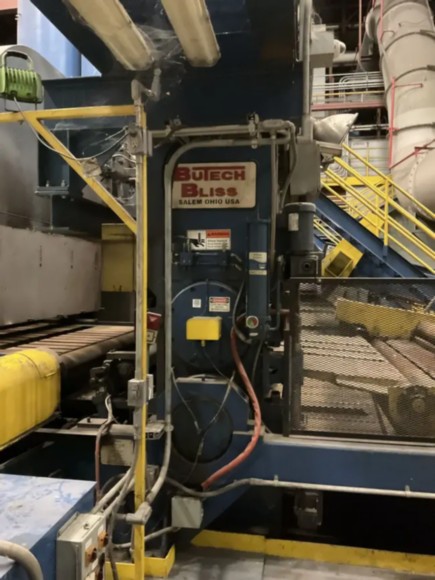

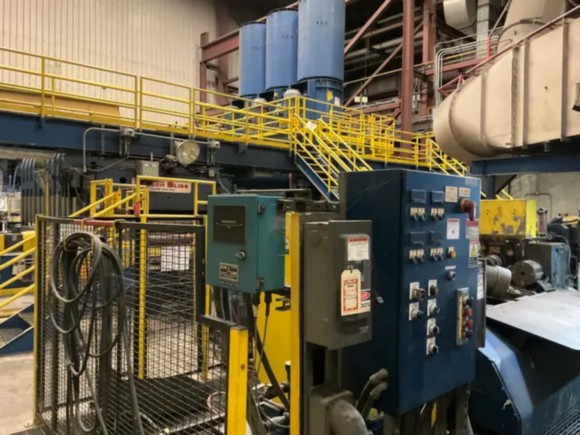

80" x .250" BUTECH BLISS MDL. DS250-80 ALUMINUM INLINE ROTARY SHEAR



MANUFACTURER - BUTECH BLISS
MODEL NUMBER - DS250-80
MATERIAL - ALUMINUM ALLOYS
YEAR - 2007
THICKNESS (NORMAL OPERATION) - 0.200" MAX - 0.070" MIN
THICKNESS (INTERMITTANT OPREATION) - 0.400" MAX
MAXIMUM YIELD STRENGTH @ 600 DEGREES FARENHEIT - 8,000 PSI
LINE SPEED - 25 - 320 FPM
ACCELERATION TIME - 0.48125 SECONDS
SCRAP LENGTH - 36"
CUT WINDOW - 25.6 DEGREES
MAXIMUM ACCELERATION SPEED - 11.605 RADIANS/SEC^2
SHEAR INERTIA AT MOTOR SHAFT (NOT INCLUDING MOTOR) - 10 LB FT SQUARED (APPROX)
DRIVE CURRENT OVERLOAD RATING - 150%, 60 SECONDS

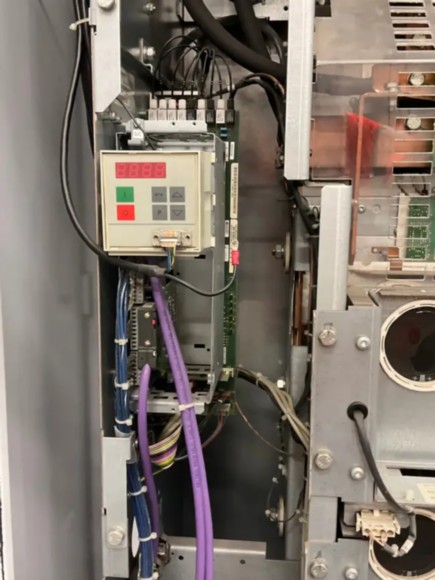

DRIVE MOTOR - 300 HP AC VARIABLE SPEED DPFG-BV WITH CONSTANT TORQUE OVER 0-

1750 RPM
