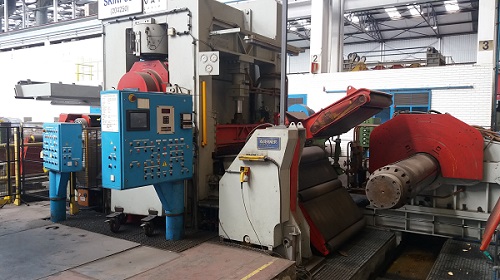

Click on picture below for larger version

Manufacturer:
- Kvaerner Metals (became Cosim and VAI)
- New in 1999

Strip Width:
- Maximum: 1500 mm max (60")(at 0.08% C) ... 750 mm (29.5")(at 0.80% C)
- Minimum: 500 mm (19.7")

Strip Thickness:
- Max entry: 6.00 mm (.236")(4 mm at 0.80% C)
- Min exit: 0.2 mm (.008")

Material: Cold Rolled Steel

Coil Size:
- ID: 508 mm (20")
- OD: 2000 mm (78.7")
- Weight: 20 mtons (44,000 lbs)

Equipment:
Uncoiler:
- Expanding mandrel type (508 mm diameter nominal)
- Drive: 390 kW motor / 0-430-1690 rpm / gearbox ratio 1:18 and 1:9
- Tension: at low speed = 15,000 to 1,500 kg / at high speed = 7,500 to 750 kg

Mill:
- Work Roll Diameter: 400/370 mm (15.7"/14.6")
- Work Roll Face: 1650 mm (65")
- Backup Roll Diameter: 850/800 mm (33.5"/31.5")
- Backup Roll Face: 1650 mm (65")
- Mill Speed: 0-150-300 mpm
- Roll Force: 450 mtons
- Drive: 570 kW motor / 0-750-1600 rpm / gearbox ration 1:6.28
- Coolants System: 200 l/min
- Thickness Gauge: Vollmer

Recoiler:
- Expanding mandrel type (508 mm diameter nominal)
- Drive: 390 kW motor / 0-430-1690 rpm / gearbox ratio 1:18 and 1:9
- Tension: at low speed = 15,000 to 1,500 kg / at high speed = 7,500 to 750 kg

Complete mill with electrics, controls, hydraulics, coolant system, fire

system, etc.

Sold "as is, where is" EXW installed on seller's foundation.
