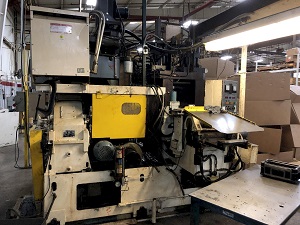

10.5" x 13" I2S 2HI COLD ROLLING MILL

MANUFACTURER - I2S
TYPE - 2HI
YEAR - 1992, MODERNIZED IN 2007
ROLL DIMENSIONS - 10.5" D X 13" F
MILL MOTOR - 25 HP DC, TENV, 1750 RPM
MILL DRIVE - 12.30:1 PINION STAND GEARBOX
LINE SPEED - 400 FPM
GAUGES - DOUBLE PRATT & WHITNEY 10A# EACH SIDE
SCREWDOWN - VIA POSITIONED CONTROLLED 2 HYDRAULIC CYINDERS
CYLINDER BORE - 9" DIAMETER
SEPARATING FORCE - 160,000 LBS MAX NORMAL PER SIDE - 320,000 POUNDS TOTAL
WORKING HYDRAULIC PRESSURE - 1300 PSI (3000 PSI MAX.)
HYDRAULIC SYSTEM POWER - VICKERS PRESSURE COMPENSATED - VARIABLE DISPLACEMENT

PUMP WITH 7.5 HP AC 1150 RPM MOTOR

INCLUDES:
MILL OPERATORS CONTROL PANEL
