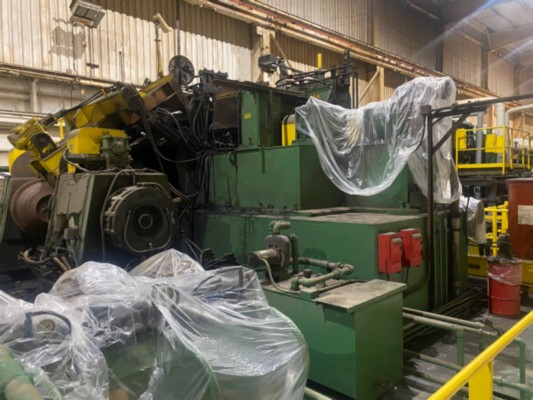

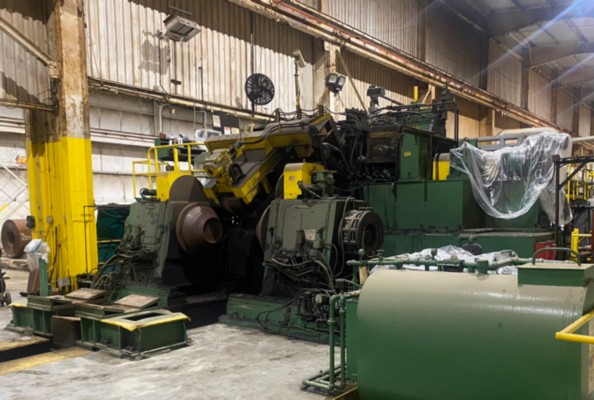

72" x .500" PRO-ECO HEAVY GAUGE ENTRY UNIT W/ HOLD-DOWN ROLL, PEELER, PINCH   Our stock number: 116184

72 x .500 PRO-ECO HEAVY GAUGE ENTRY UNIT W/ HOLD-DOWN ROLL, PEELER, PINCH

Click on picture below for larger version
72 x .500 PRO-ECO HEAVY GAUGE ENTRY UNIT W/ HOLD-DOWN ROLL, PEELER, PINCH72 x .500 PRO-ECO HEAVY GAUGE ENTRY UNIT W/ HOLD-DOWN ROLL, PEELER, PINCH



Manufacturer: Pro-Eco
Line Direction: Right to Left
Flattener Drive: 150 HP (110 Kw) DC
Line Speed: 300 FPM (91 MPM) Max.
Materials: Cold Rolled & Hot Rolled Steel (Pickled or Black)
Coil Width: 72" (1829 mm) Max.
Strip Thickness: .500" (12.70 mm) Max., .054" (1.37 mm) Min.

The heavy gauge entry unit feeds material, removes coil set, and loosens scale

on hot rolled material

Pivoting hold-down roll is positioned by hydraulic cylinder and driven by

hydraulic gearmotor

Pivoting and telescoping peeler is positioned by hydraulic cylinders

Pinch rolls are clamped by hydraulic cylinders and driven by the main

flattener drive

Flattener penetration is positioned by cross-coupled screw jacks

Flattener motor and gearbox are included.
