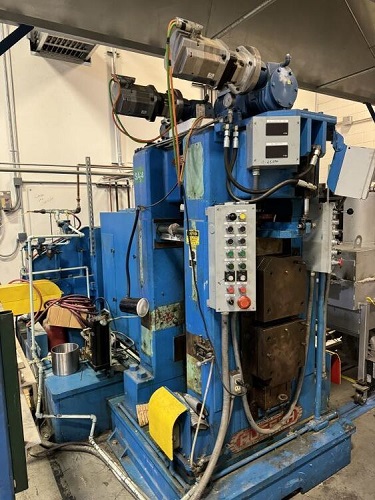

Click on picture below for larger version

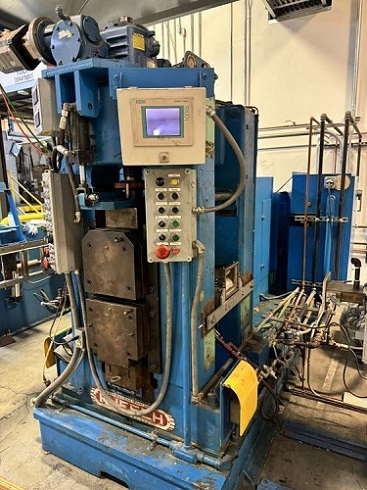

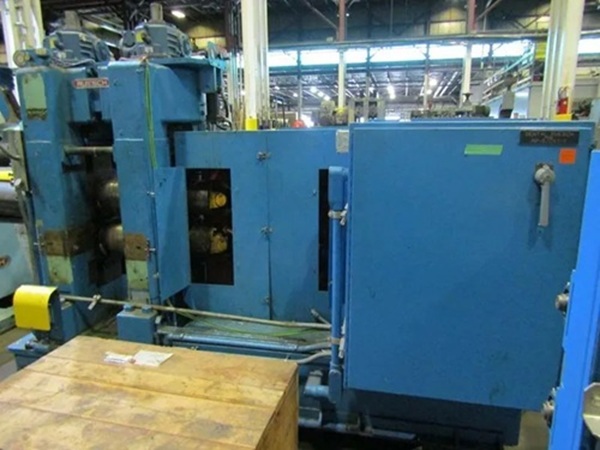

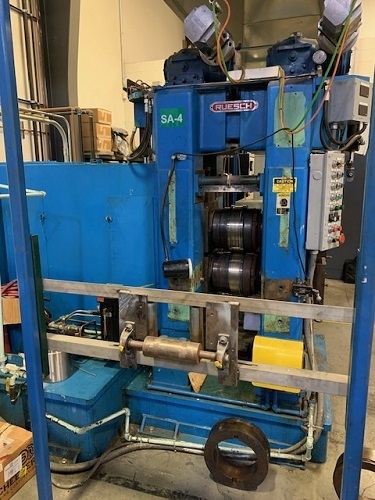

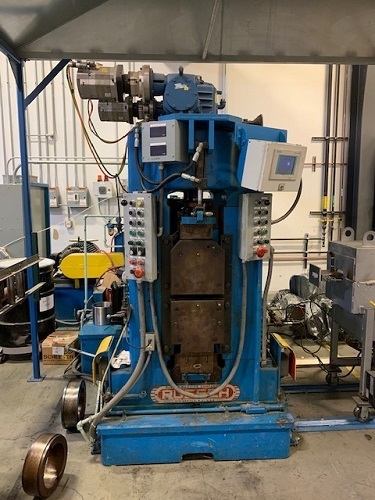

MANUFACTURER: RUESCH MACHINE CO. (USA)
TYPE: 2 HIGH REVERSING ROLLING MILL
PREVIOUS USE: BREAKDOWN MILL FOR GOLD AND SILVER
INTERMEDIATE MILL FOR

COPPER/STEEL/ALUMINUM
CLADDING/BONDING MILL FOR DUAL STRIP

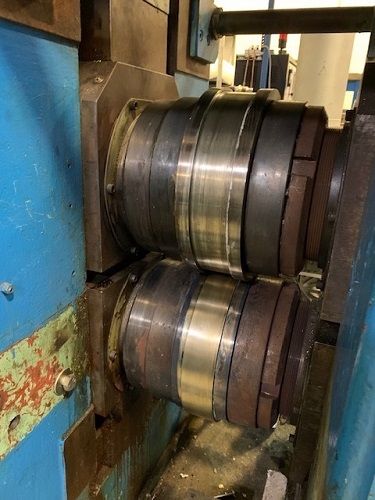

ROLL SIZE: 12" (305MM) DIA. x 12" (305MM) FACE

WIDTH
ROLL BEARINGS: ROLLER BEARING
SCREWDOWNS: ELECTRO-MECHANICAL
MAXIMUM ROLL OPENING: 4.25" (108MM)
MILL STAND CROSS SECTION: 9" (228MM) x 10" (254MM)
WINDOW WIDTH: 13-1/4" (336MM) x 41" (1041MM) HIGH
DIRECTION OF TRAVEL: RIGHT TO LEFT IF USED AS A CLADDING MILL
REVERSING AS A STAND-ALONE MILL

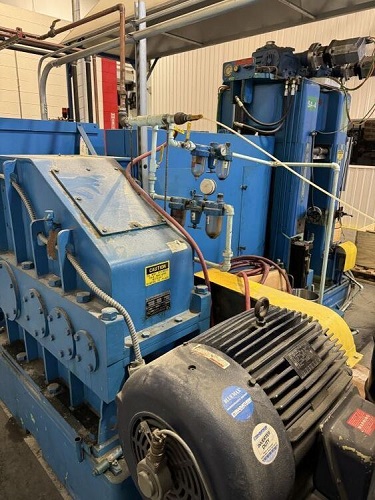

MILL STAND DRIVE MOTOR: 50 HP, 230/460 VOLTS, 1750 RPM, 3 PHASE,
60 HZ VARIABLE SPEED

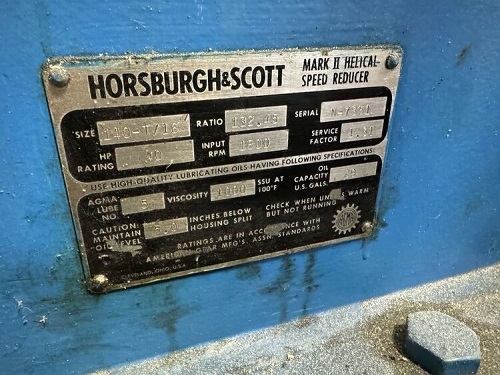

GEAR BOX: HORSBURGH & SCOTT RATIO 137.45 TO 1
MILL SPEED: 0 - 80 FPM (0 - 25 M/MIN)

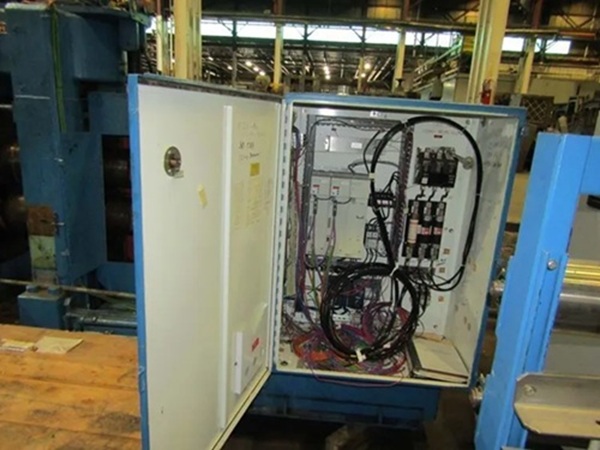

A.C. VARIABLE SPEED DRIVE: PARKER A.C. INTEGRATOR 690+ SERIES WITH
HTTL ENCODER

PAYOFF: BUYER MUST SUPPLY

ROLLING MILL: AS PER SPECS ABOVE

WINDER:
-ENTRY STRIP SIDE GUIDES
-PNEUMATIC STRIP HOLD-DOWN ROLLS
-WINDER MANDREL: 2-1/2" (63.5MM) DIAMETER
9" (228MM) WIDE
-VARIABLE SPEED CONTROLS

NO. OF ROLLS:
-FLAT ROLLS: 1 SPARE SET
-SHELL ROLLS: 1 SET IN MILL

FLOOR SPACE:
-MILL STAND ALONE: 124" (3150MM) WIDE X 138" (3505MM) DEEP
