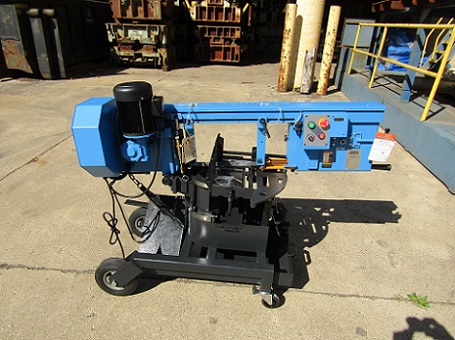

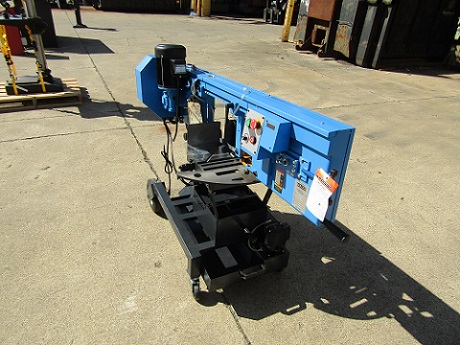

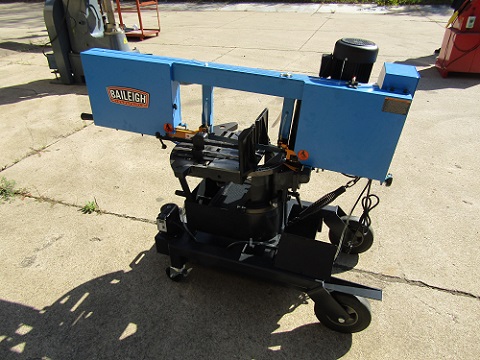

BAILEIGH BS-10VS PORTABLE DUAL MITERING BAND SAW

MANUFACTURER - BAILEIGH
MODEL - BS-10VS
TYPE - PORTABLE DUAL MITERING BAND SAW
CONDITION - LIKE NEW CONDITION

BLADE SIZE (IN.) - 1" X .035" X 120"
BLADE GUIDE - CARBIDE X ROLLER
CAPACITY ROUND 45 - 6.5"
CAPACITY ROUND 90 - 10"
DESCENT CONTROL - HYDRAULIC
TYPE OF MITER ADJUSTMENT - SWIVEL HEAD
MITER ANGLE RANGE (DEG.) - 45 - 0 - 45
MOTOR (HP) - 1
RECTANGLE AT 90 DEGREES (IN.) - 8 X 9
RETURN - MANUAL
SQUARE AT 90 DEGREES (IN.) - 8 X 8
GROSS WEIGHT - 610 LBS.

CATALOG SPECIFICATIONS - ALL SPECIFICATIONS TO BE CONFIRMED BY THE PURCHASER

AN INVERTER ALLOWS THIS SAW TO RUN ON 115V SINGLE-PHASE POWER DRIVEN BY A

DURABLE THREE-PHASE MOTOR. QUICK LOCKING VISE IS EASY TO ADJUST TO CLAMP

VARIOUS MATERIAL SIZES.
LARGE PROTRACTOR FOR ACCURATE AND FAST ANGLE CUTS

EASILY CONVERTS FROM HORIZONTAL TO VERTICAL CONFIGURATION PROVIDING MAXIMUM

CUTTING FLEXIBILITY WITH INCLUDED VERTICAL SUPPORT TABLE. LOCKING CASTERS AND

ROBUST REAR WHEELS DELIVER EFFORTLESS MOVEMENT AROUND THE SHOP.
WIRE BLADE BRUSH PREVENTS CHIP BUILD-UP IN THE BLADE GUIDES PROVIDING CLEANER

CUTS REMOVABLE CHIP TRAY FOR EASY DISPOSAL OF WASTE MATERIAL
DUAL MITERING HEAD PRODUCES QUICK & EASY ANGLE CUTS TO UP TO 45 BOTH LEFT AND

RIGHT

ELECTRONIC VARIABLE SPEED (EVS) ALLOWS FOR THE ADJUSTMENT OF BLADE SPEED "ON

THE FLY" WHILE CUTTING PROVIDING ACCESS TO A WIDER RANGE OF CUTTING MATERIALS

HYDRAULIC DOWN FEED CONTROL IS EASILY ADJUSTABLE ALLOWING USERS TO MATCH FEED

RATE TO A VARIETY OF SIZES & TYPES OF MATERIALS
